Makita EA4300F Repair Manual

___
Reparaturanleitung PS-4600 / PS-5000 17
Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L

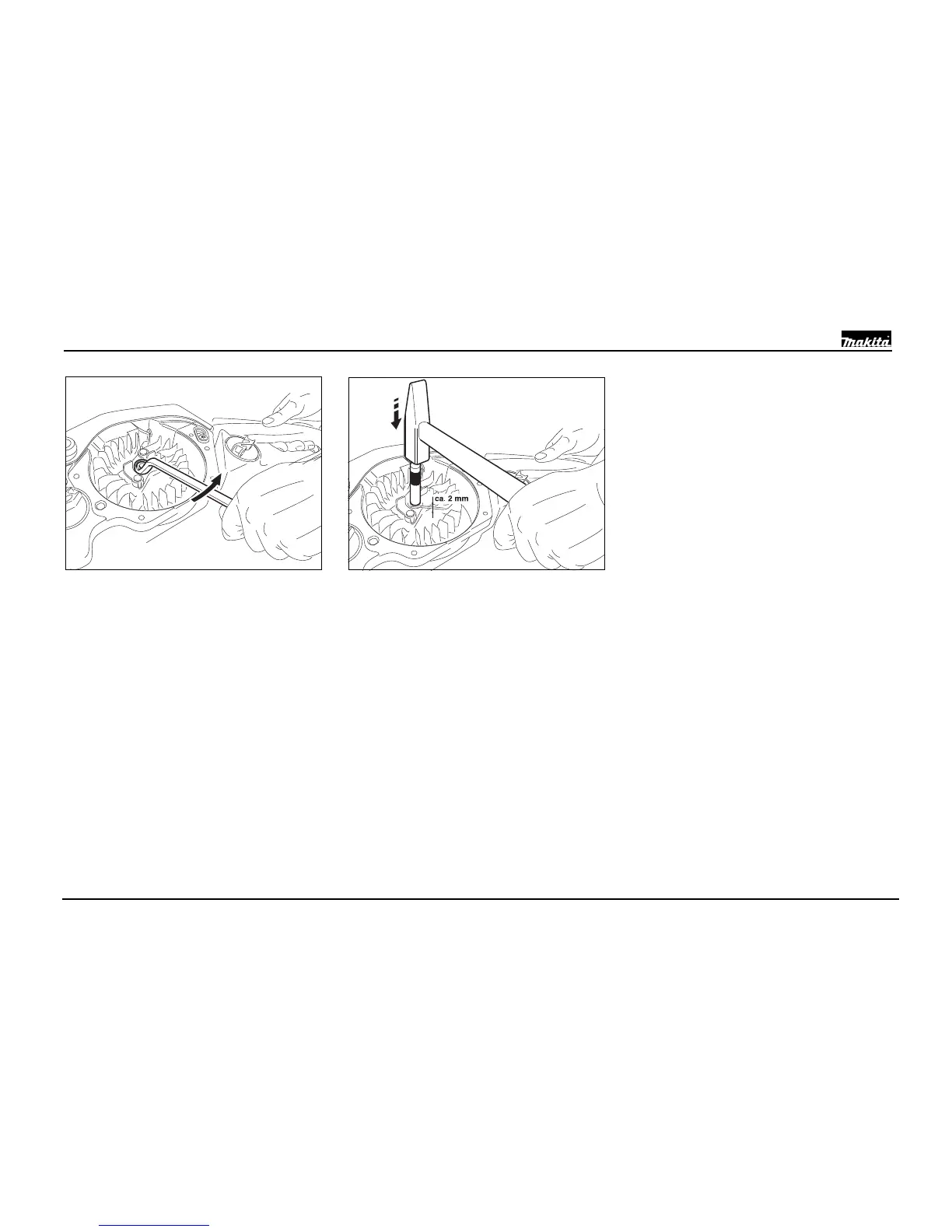

Screw the disassembly mandrel (chapter 00
pos. 2) onto the threaded end of the shaft.
Do not screw the mandrel all the way down.
Leave about 2 mm between the mandrel and
the flywheel.
Hold the machine in one hand or place on a
soft surface, and knock the flywheel loose with
a tap on the mandrel.
CAUTION: The cone of the crankshaft must
always be degreased before assembly.
07
IGNITION S
YSTEM
Removing the flywheel
Remove starter see chap. 06.
Block the piston, see chap. 04.
Loosen the nut in the direction of the arrow
and remove it along with the washer.

Makita EA4300F Specifications

General

Engine Displacement	42.4 cc
Weight	4.9 kg
Bar Length	40 cm (16")
Fuel Tank Capacity	0.48 L
Oil Tank Capacity	0.28 L
Chain Pitch	3/8 in
Chain Gauge	0.050"
Power Output	2.2 kW
