Reparaturanleitung PS-4600 / PS-5000 5
Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L
1
2
3
4
5
00
SP

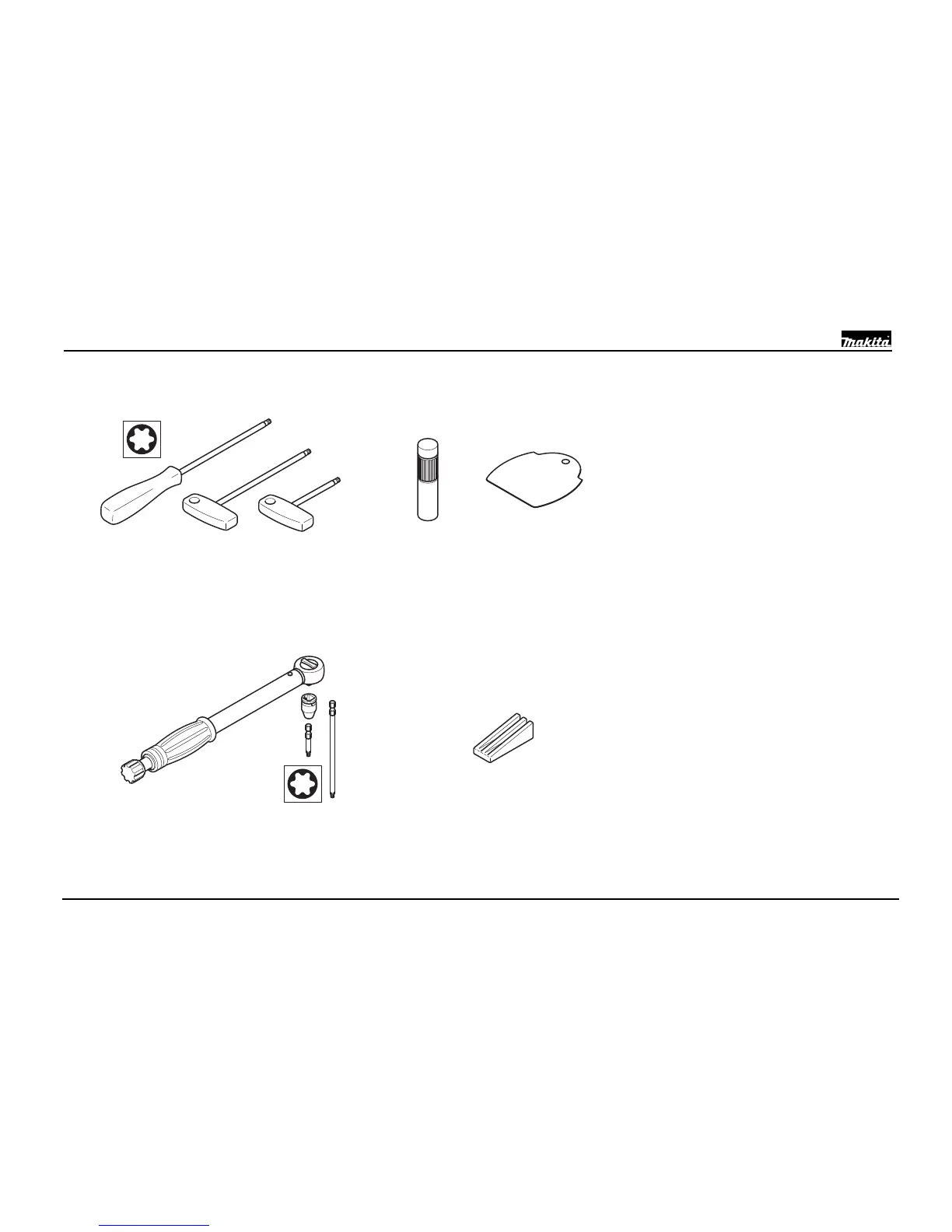

ECIAL TOOLS
1 Torx screwdriver
Grip (944.500.860)
T-grip 200 mm (944.500.862)
T-grip 100 mm (944.500.861)
2 Mandrel
Disassembly mandrel for
tapping out the flywheel
without damage to
the crankshaft thread (944.500.880)
3 Setting gauge
Gauge for measuring the gap
between flywheel and
armature (944.500.891)
4 Torque wrench
3/8” Drive socket (944.500.864)
Bit 152 mm (944.500.865)
Bit 49 mm (944.500.866)
Torque wrench
3/8” Drive (950.230.000)
5 Piston stop wedge
Wedge for blocking
the engine through the
exhaust port (944.602.001)

Makita EA4300F Specifications

General

Engine Displacement	42.4 cc
Weight	4.9 kg
Bar Length	40 cm (16")
Fuel Tank Capacity	0.48 L
Oil Tank Capacity	0.28 L
Chain Pitch	3/8 in
Chain Gauge	0.050"
Power Output	2.2 kW
