Makita EA4300F Repair Manual

___
Reparaturanleitung PS-4600 / PS-5000 6
Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L
6 7
9
8
10
11 12 13
00

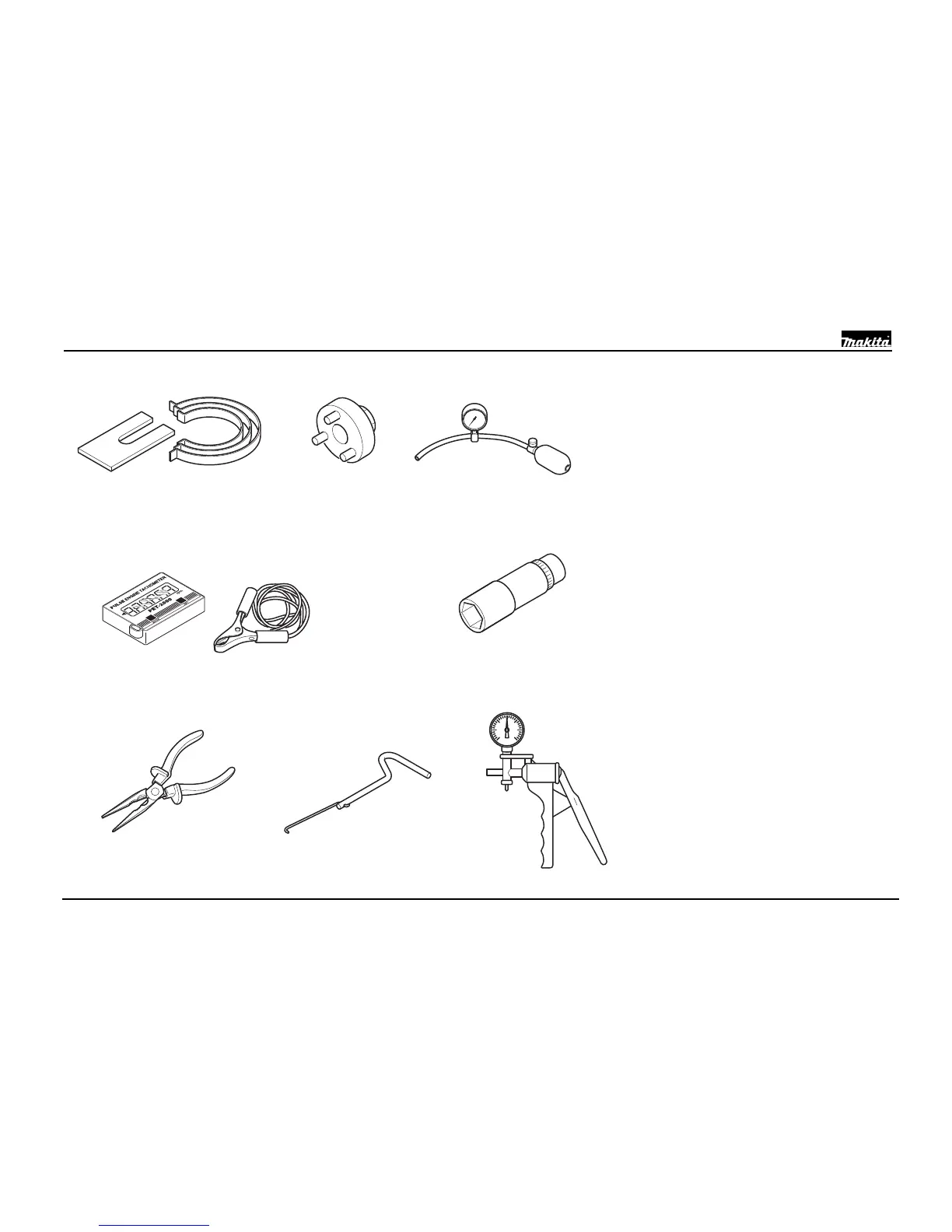

SPECIAL TOOLS
6 Piston ring tensioner
Piston ring band and
assembly tool for cylinders (944.600.001)
7 Assembly and disassembly wrench
Wrench for disassembling and
assembling the centrifugal
clutch (944.500.590)
8 Pressure gauge
Pressure guage for checking
the carburetor fuel valve (956.004.000)
9 Tachometer
Electronic tachometer for measuring
the engine speed of
2- and 4-stroke engines (950.233.220)
10 3/8” socket
Installation/removal of
Spark plug, clutch (944.500.864)
11 Needle-nose pliers
Various assembly/
Disassembly tasks (944.603.400)
12 Disassembly hook
Removal/installation
Brake band spring (950.237.000)
13 Over/underpressure pump
For checking sealing of
radial rings and gaskets (957.004.001)

Makita EA4300F Specifications

General

Engine Displacement	42.4 cc
Weight	4.9 kg
Bar Length	40 cm (16")
Fuel Tank Capacity	0.48 L
Oil Tank Capacity	0.28 L
Chain Pitch	3/8 in
Chain Gauge	0.050"
Power Output	2.2 kW
