Lubrication
This tool requires no hourly or daily lubrication because it
has a grease-packed lubrication system. It should be relubri-
cated after every 6 months of operation. Send the complete
tool to Makita Authorized Service Center for this lubrication
service. However, if circumstances require that you should
lubricate it by yourself, proceed as follows.
Run the tool for several minutes to warm it up. Switch off and
unplug the tool.
Loosen the four screws (two short screws on the upper side
and two long screws on the lower side. ) and remove the
handle.
Disconnect the terminal by pulling it.
Remove the crank cap by loosening the screws with a screw-
driver. Rest the tool on the table with the bit end pointing
upwards. This will allow the old grease to collect inside the
crank housing.
Wipe out the old grease inside and replace with a fresh
grease (30 g). Use only Makita genuine hammer grease
(optional accessory). Filling with more than the specified
amount of grease (approx. 30 g) can cause faulty hammering
action or tool failure. Fill only with the specified amount of
grease.
Reinstall the crank cap and secure with the screws.

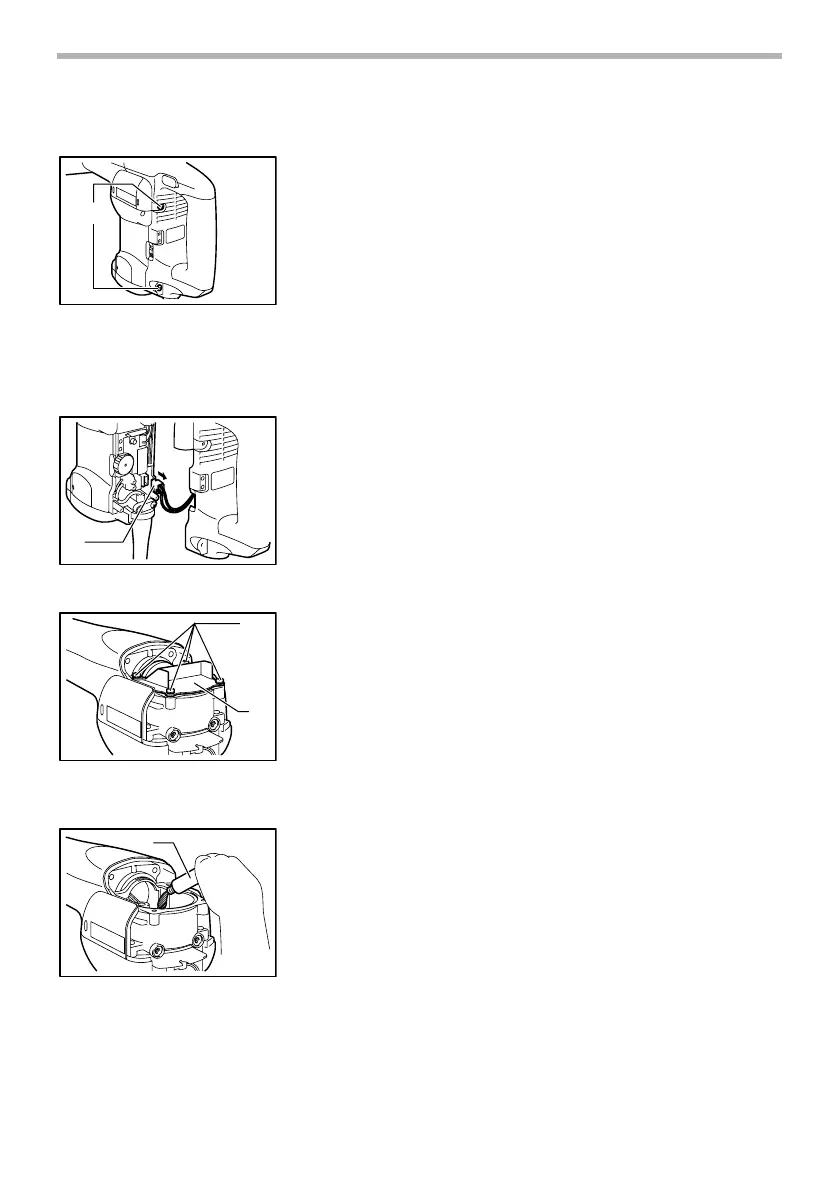

1. Screw
1
004490
1. Terminal
1
004491
1. Screw
2. Crank cap
1
2
004492
1. Hammer grease
1
004493
