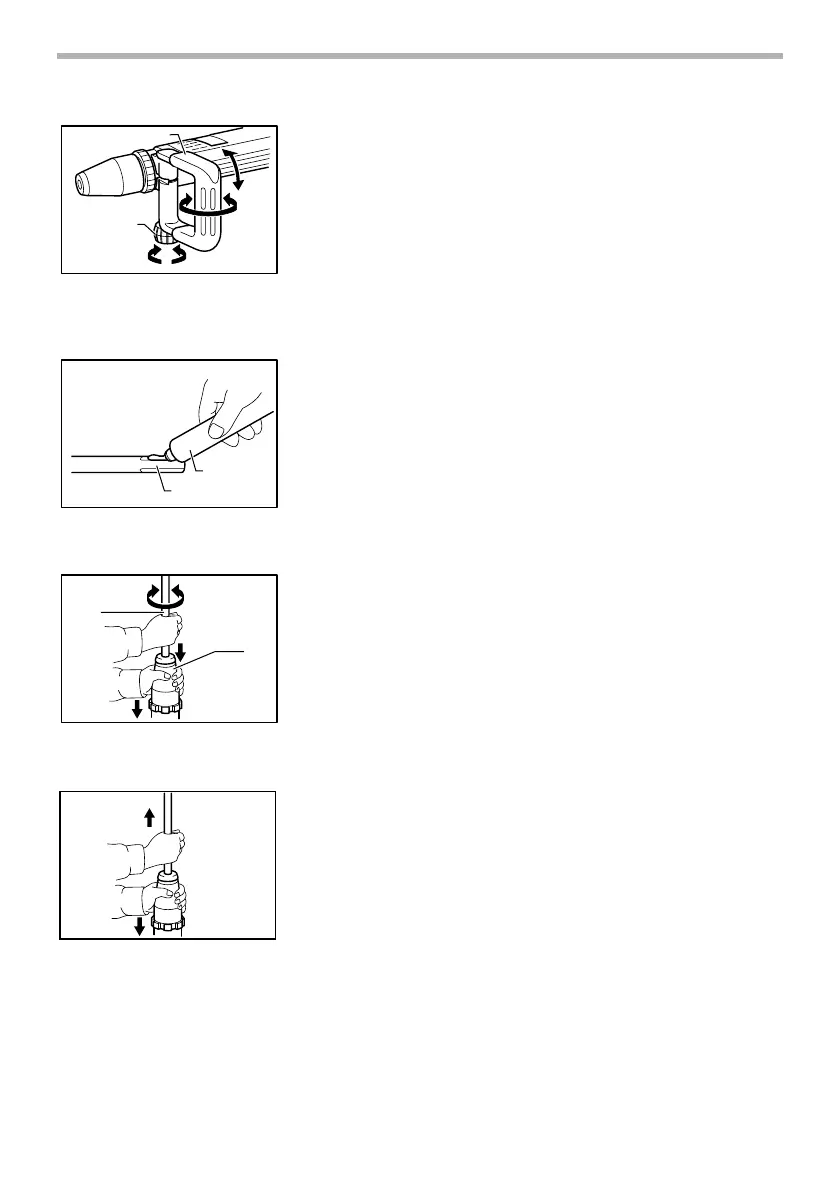

Side handle (auxiliary handle)
The side handle can be swung 360° on the vertical and
secured at any desired position. It also secures at eight dif-
ferent positions back and forth on the horizontal. Just loosen
the clamp nut to swing the side handle to a desired position.
Then tighten the clamp nut securely.
Installing or removing the bit
Clean the bit shank and apply bit grease before installing the
bit.
Pull the tool holder cover down all the way and insert the bit
into the tool holder. Turn the bit and push it in until it
engages.
Release the tool holder cover. It will return automatically to
its original position to secure the bit. After installing, always
make sure that the bit is securely held in place by trying to
pull it out.
To remove the bit, pull the tool holder cover down all the way
and pull the bit out.
1. Side handle
2. Clamp nut
1
2
002901
1. Bit grease
2. Bit shank
1
2
002916
1. Bit
2. Tool holder cover
1
2
002917
002918
