Repair
P 6 / 17
Pin 4
Rack 12
Spur gear 29-37
Spindle
Lock plate
Change lever B

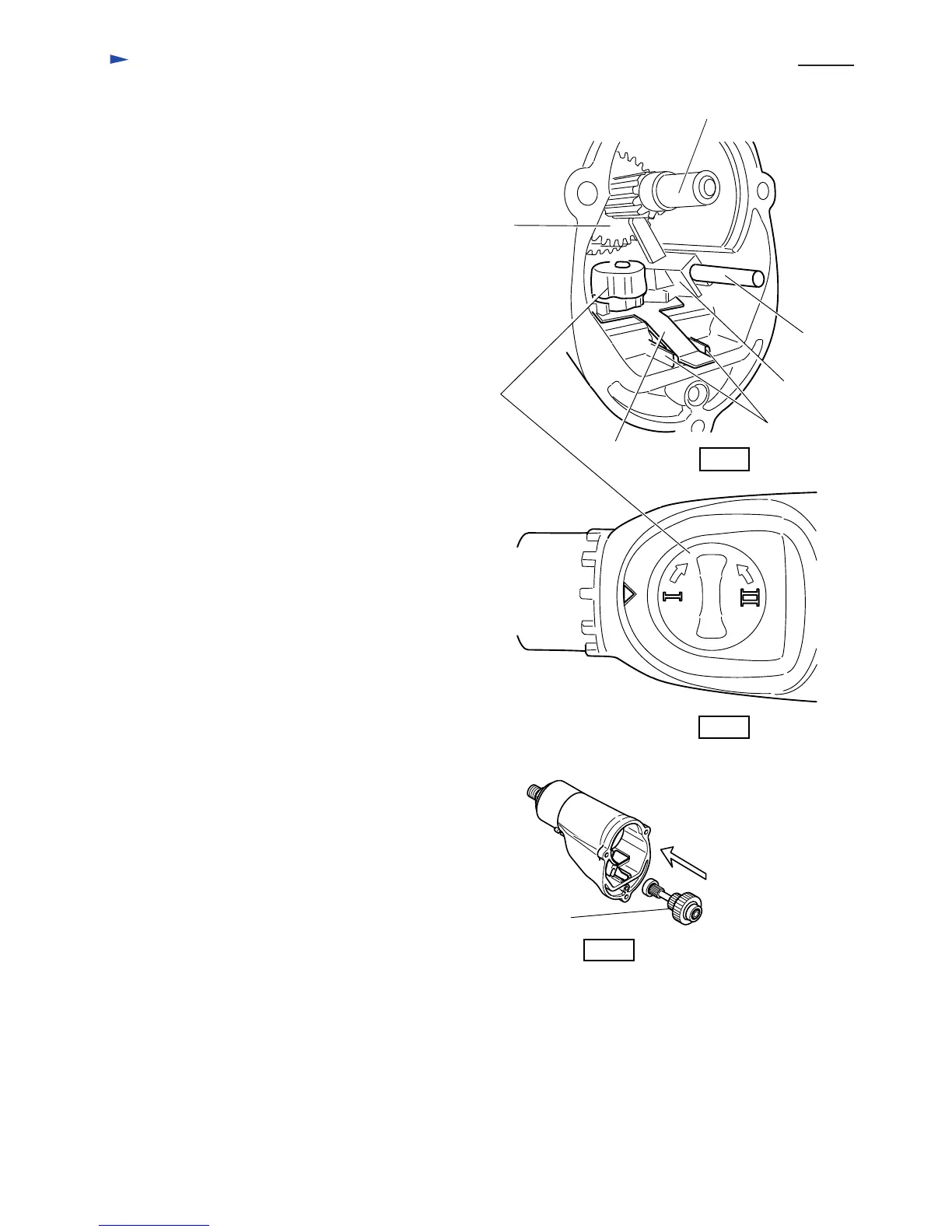

4. Insert pin 4 through rack 12 into gear housing.
And then, rush rack 12 until it reaches the bottom wall
of gear housing. See Fig. 8.
Keeping the above position of rack 12, assemble change lever B
to gear housing with aligning its "I" mark to the triangle mark of
gear housing. See Fig. 8 and Fig. 8A.
5. Assemble lock plate to gear housing with setting
its tail portion between ribs of gear housing.
5. Assemble gear complete to the gear housing as illustrated
in Fig. 9.
Rib
Gear complete
Fig. 8A
Fig. 8
Fig. 9
