Makita HS7601 Technical Information

Power supply cord
3 2
Fig. D-1
Fig. D-2
WhiteBlue
Brown
Color index of lead wires' sheath
Black
Field
viewed from Fan side
Switch
Terminal block (if used)
Noise suppressor (if used)
Wiring of Field lead wires
Non insulated
sleeve
AWG18
(Single wire)
AWG18
AWG18
AWG20AWG20
AWG18
(Single wire)
Insulated receptacle (M3.5)Insulated receptacle (M3.5)
Black lead wire is used
for some countries.
Connector is used for
some countries
White lead wire is used
for some countries.
Non insulated
sleeve
Pass Field lead wires through this square opening.
Note: Do not scratch them with this edge of
the square opening.
Fix the Field lead wires in this Lead wire holder
so as not to be loose in Motor housing.
P 10/ 11

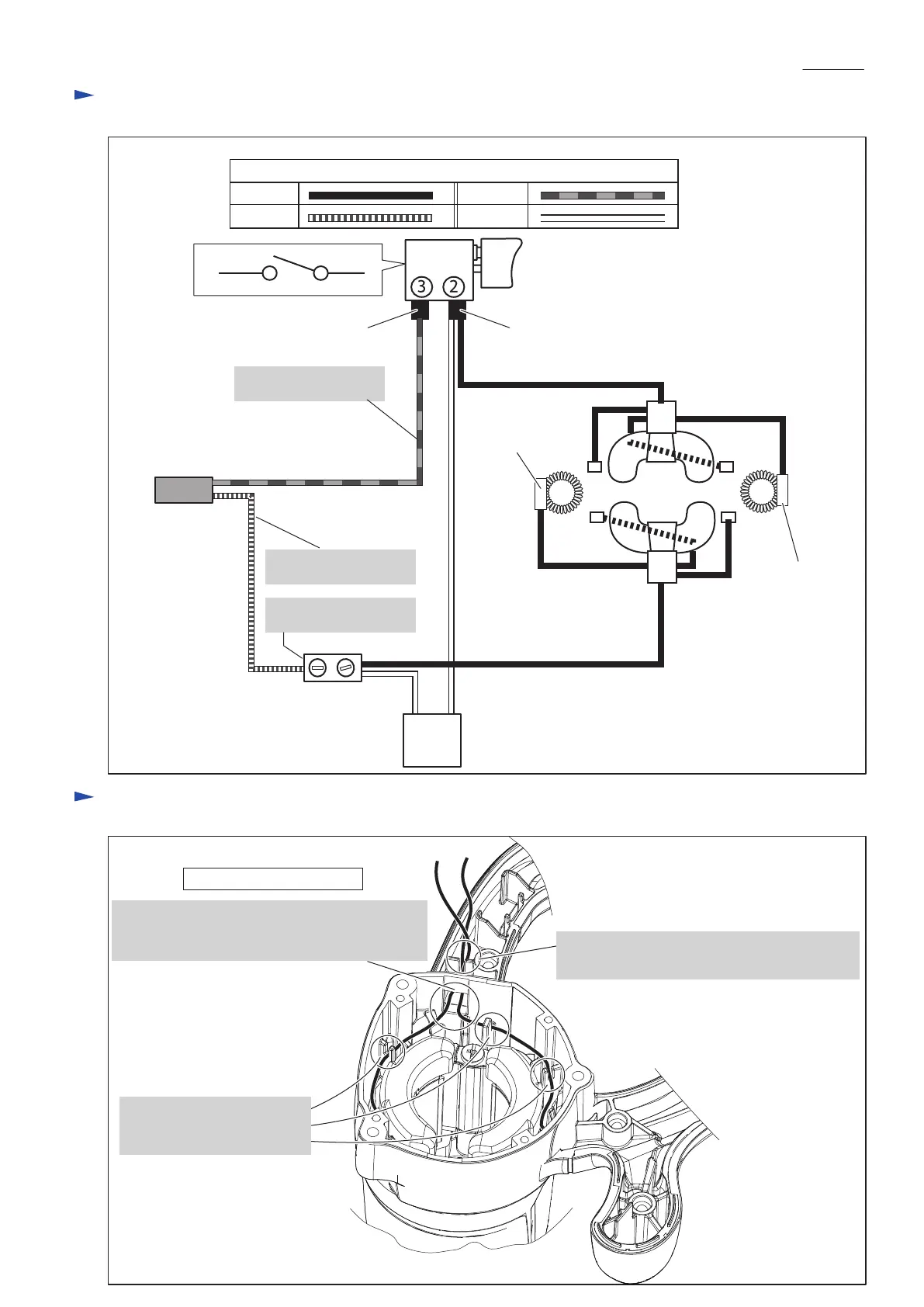

Circuit diagram
Wiring diagram
Fix Field lead wires in these
Lead wire holders so as not to
be loose in Motor housing

Makita HS7601 Specifications

General

Product color	Black, Blue
Built-in light	-
Suitable for materials	Wood
Tool-free blade change	Yes
Blade bore	30 mm
Blade diameter	190 mm
Idle speed (max)	5200 RPM
Sound power level	98 dB
Cutting depth (45º)	46 mm
Cutting depth (90º)	66 mm
Sound pressure level	87 dB
Sound level uncertainty	3 dB
Input power	1200 W
Power source	AC
AC input voltage	230 V

Weight and Dimensions

Depth	309 mm
Width	232 mm
Height	255 mm
Weight	3800 g
