Makita HS7601 Technical Information

Noise suppressor
Opening of
Closed-end
connector
Strain relief
Switch
Do not put the Closed end connector
under Switch, if it is used instead of
Terminal block.
Do not put any Lead
wires on these Ribs.
Do not put any Lead
wires under Terminal
block.
Terminal
block

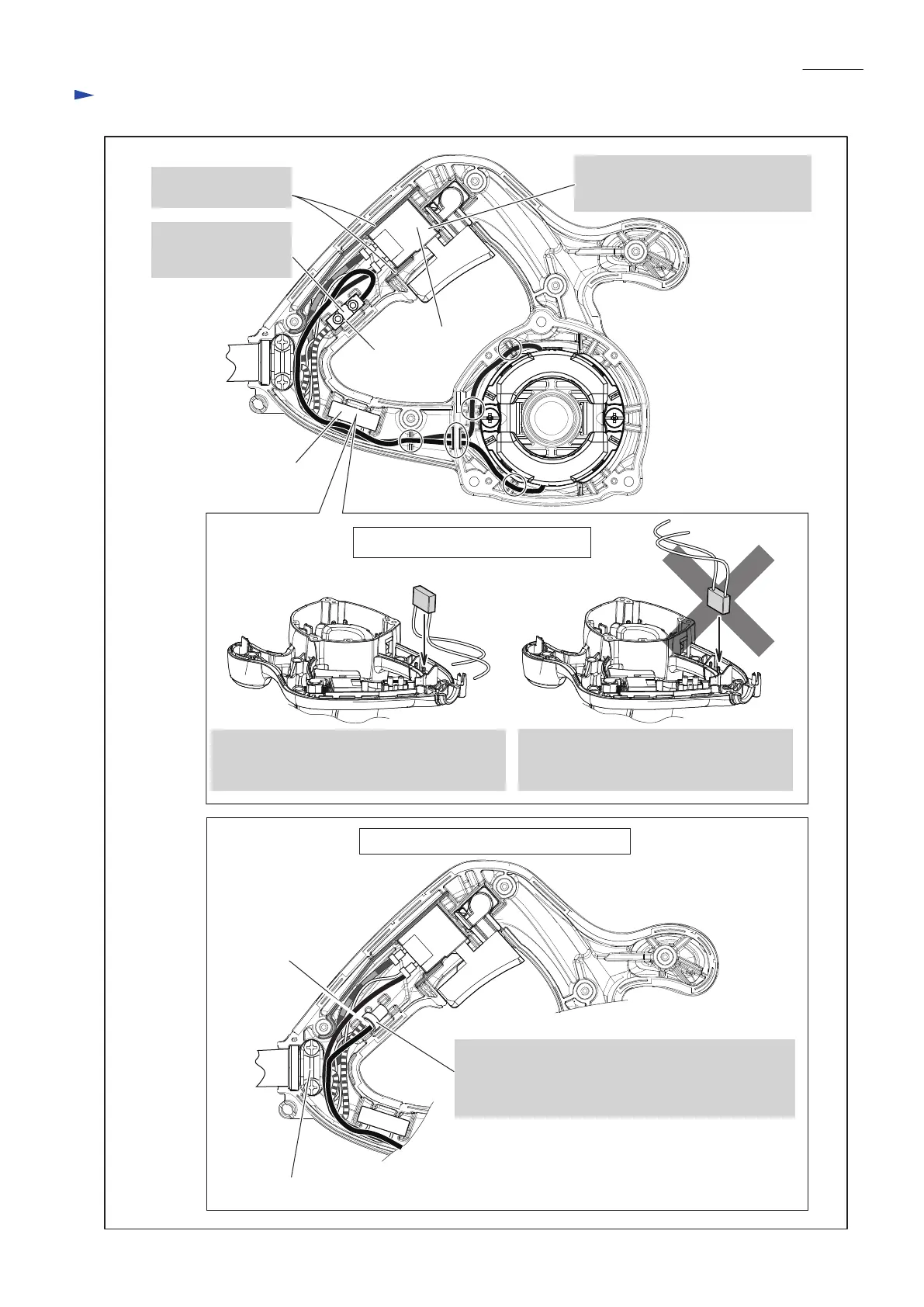

Setting of Noise suppressor (if used)
Face wire connected side to the bottom of
handle section and assemble Noise suppressor
to Handle.
Lead wires may interfere with assembling
of Handle cover. Therefore, put Noise
suppressor as drawn to the upper left.
Put closed-end connector to Handle section so that
the opening of Closed-end connector faces toward
Strain relief side, and then placce the Closed-end
connector here if it is used instead of Terminal block.
Setting of Closed-end connector (if used)
Fig. D-3
P 11/ 11
Wiring diagram

Makita HS7601 Specifications

General

Product color	Black, Blue
Built-in light	-
Suitable for materials	Wood
Tool-free blade change	Yes
Blade bore	30 mm
Blade diameter	190 mm
Idle speed (max)	5200 RPM
Sound power level	98 dB
Cutting depth (45º)	46 mm
Cutting depth (90º)	66 mm
Sound pressure level	87 dB
Sound level uncertainty	3 dB
Input power	1200 W
Power source	AC
AC input voltage	230 V

Weight and Dimensions

Depth	309 mm
Width	232 mm
Height	255 mm
Weight	3800 g
