P 2/ 11
Repair
[1] NECESSARY REPAIRING TOOLS
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
[2] LUBRICATION

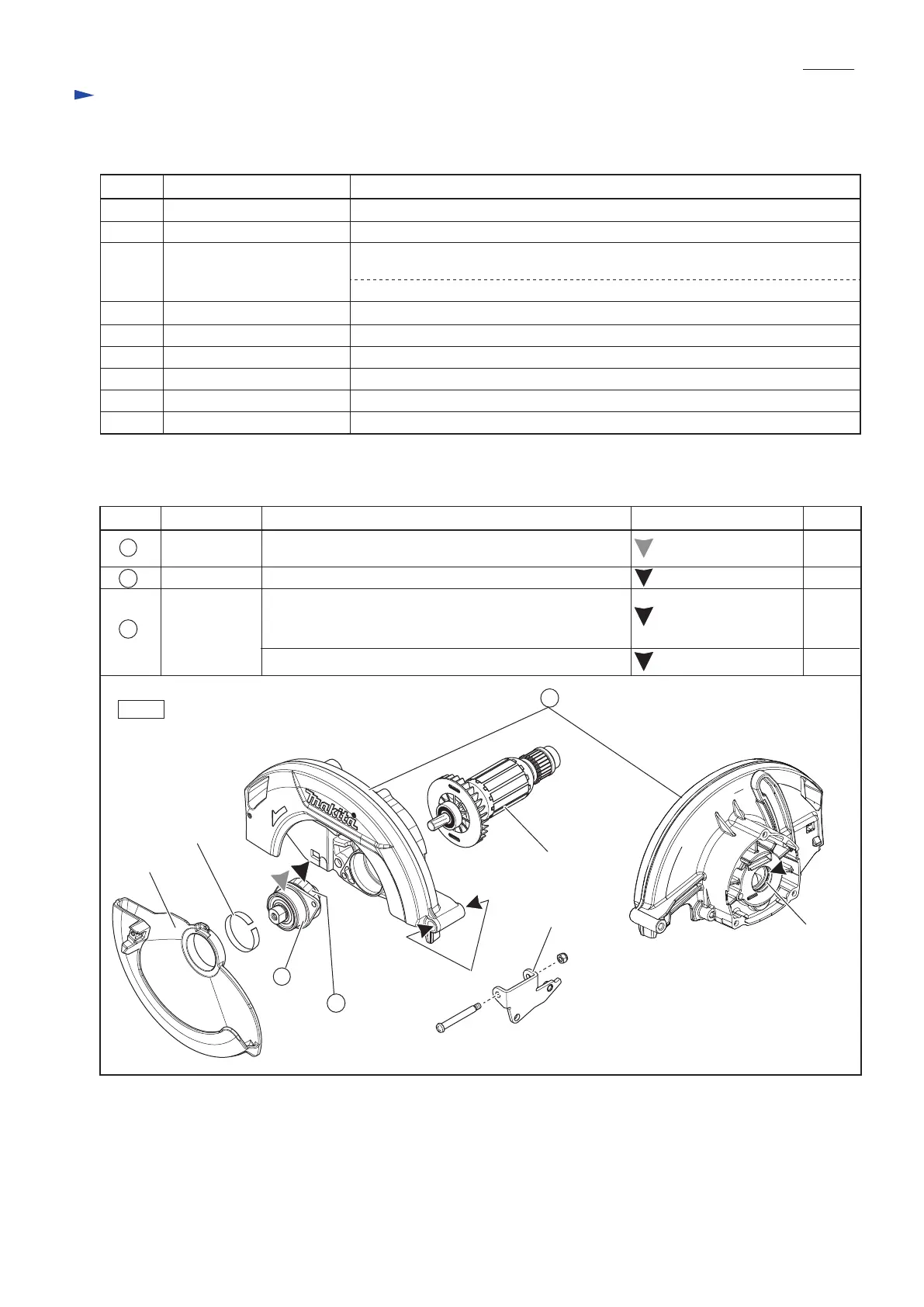

Apply Makita grease FA. No.2 and lubricant oil VG100 to protect parts and product from unusual abrasion. (Fig. 1)
Fig. 1
Item No.
Bearing box
Blade case
complete
5g
a little
a little
a little
Drum portion to which Thickness ring and Safety cover
are assembled
12
(a)
Helical gear 38
Armature
Viewed from
Armature side
Angular guide
Makita grease FA No.2
Description AmountPortion to lubricate Grease/ Lubricant
Lubricant oil VG100
Makita grease FA No.2
Makita grease FA No.2
Safety cover
Thickness ring
12
22
16
16
Gear teeth
(a) Surface which touches Angular guide when changing
the cutting depth is difficult because of the poor sliding
of Blade case complete and Angular guide
(b) O ring 26 (a component of Blade case complete)
(b)
22
Code No. Description Use for
1R003 Retaining Ring Pliers ST-2N removing/ assembling Retaining ring S-38
removing/ assembling Retaining ring S-12
removing/ assembling Bearing retainer 19-33
1R032 Bearing setting plate 8.2 removing Spindle from Helical gear 38
removing Spindle from Helical gear 38
removing Ball bearings
supporting Bearing box when removing Spindle from Helical gear 38
1R048
1R208
1R217 Ring 22
Bearing extractor1R269
1R282 Round bar for arbor 8-50
1R291 Retaining ring S and R pliers
Bearing retainer wrench1R340
Drill chuck remover 11
holding Safety cover when adjusting the longitudinal length of Base parallel
to Blade
90 degrees set square
adjusting accuracy of 90° of Saw blade to Base
holding Safety cover when adjusting accuracy of 90° of Saw blade to Base
