Makita HS7601 Technical Information

[3] DISASSEMBLY/ASSEMBLY

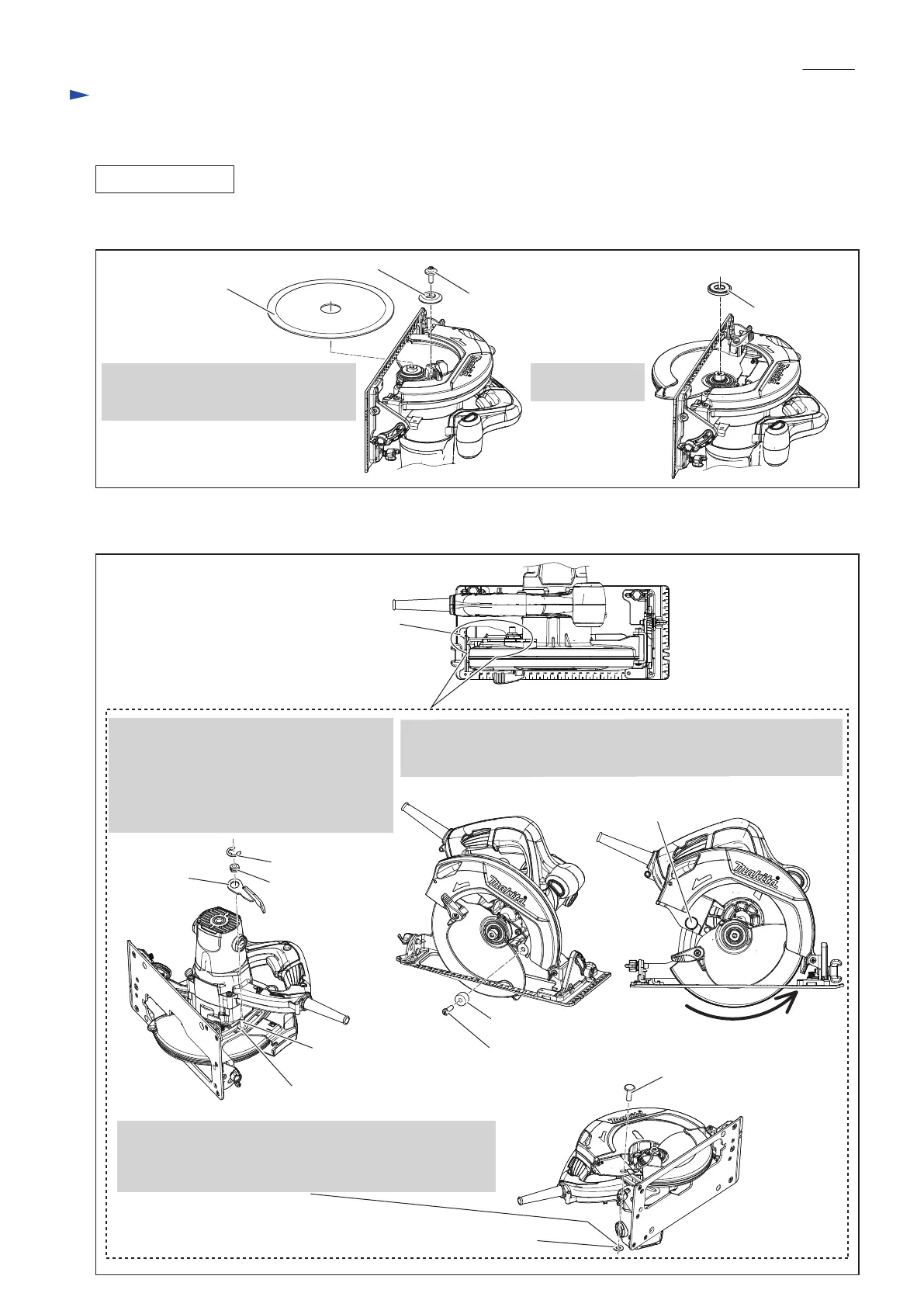

[3]-1. Base
DISASSEMBLING
(2) Disassemble Depth guide section as drawn in Fig. 3.
(1) Set the cutting depth of the machine to the maximum and then remove Saw blade as drawn in Fig. 2.
1. Remove M6x20 Hex socket head bolt,
and then separate Outer flange 35
and Saw blade from the machine.
2. Remove Inner
flange 35.
Inner flange 35
Fig. 2
Fig. 3
M6x20 Hex socket
head bolt
Saw blade
Outer flange 35
M8x24 Flat head
square neck bolt
M8x24 Flat head
square neck bolt
3. Remove M8x24 Flat head square neck bolt.
Fastening Depth guide with Base to Blade case complete
is released.
Note: Be careful not to lose Flat washer 8.
M8-13 Hex nut
Bow stop ring E-12
2. Remove M6x20 Pan head screw and Rubber sleeve 6.
Safety cover moves toward a direction designated with Black arrow.
The head of M8x24 Flat head square neck bolt appears.
Lever plate
1. Set the cutting depth to the minimum.
Turn Lever plate to loosen M8-13 Hex nut.
Remove Bow stop ring E-12 with a small
slotted screwdriver.
And then, remove M8-13 Hex nut and
Lever plate.
Rubber sleeve 6
M6-20 Pan head screw
M8x24 Flat head
square neck bolt
Flat washer 8
Depth guide section
P 3/ 11
Repair
Flat washer 8

Makita HS7601 Specifications

General

Product color	Black, Blue
Built-in light	-
Suitable for materials	Wood
Tool-free blade change	Yes
Blade bore	30 mm
Blade diameter	190 mm
Idle speed (max)	5200 RPM
Sound power level	98 dB
Cutting depth (45º)	46 mm
Cutting depth (90º)	66 mm
Sound pressure level	87 dB
Sound level uncertainty	3 dB
Input power	1200 W
Power source	AC
AC input voltage	230 V

Weight and Dimensions

Depth	309 mm
Width	232 mm
Height	255 mm
Weight	3800 g
