Makita HS7601 Technical Information

[3] DISASSEMBLY/ASSEMBLY
[3]-1. Base (cont.)
DISASSEMBLING

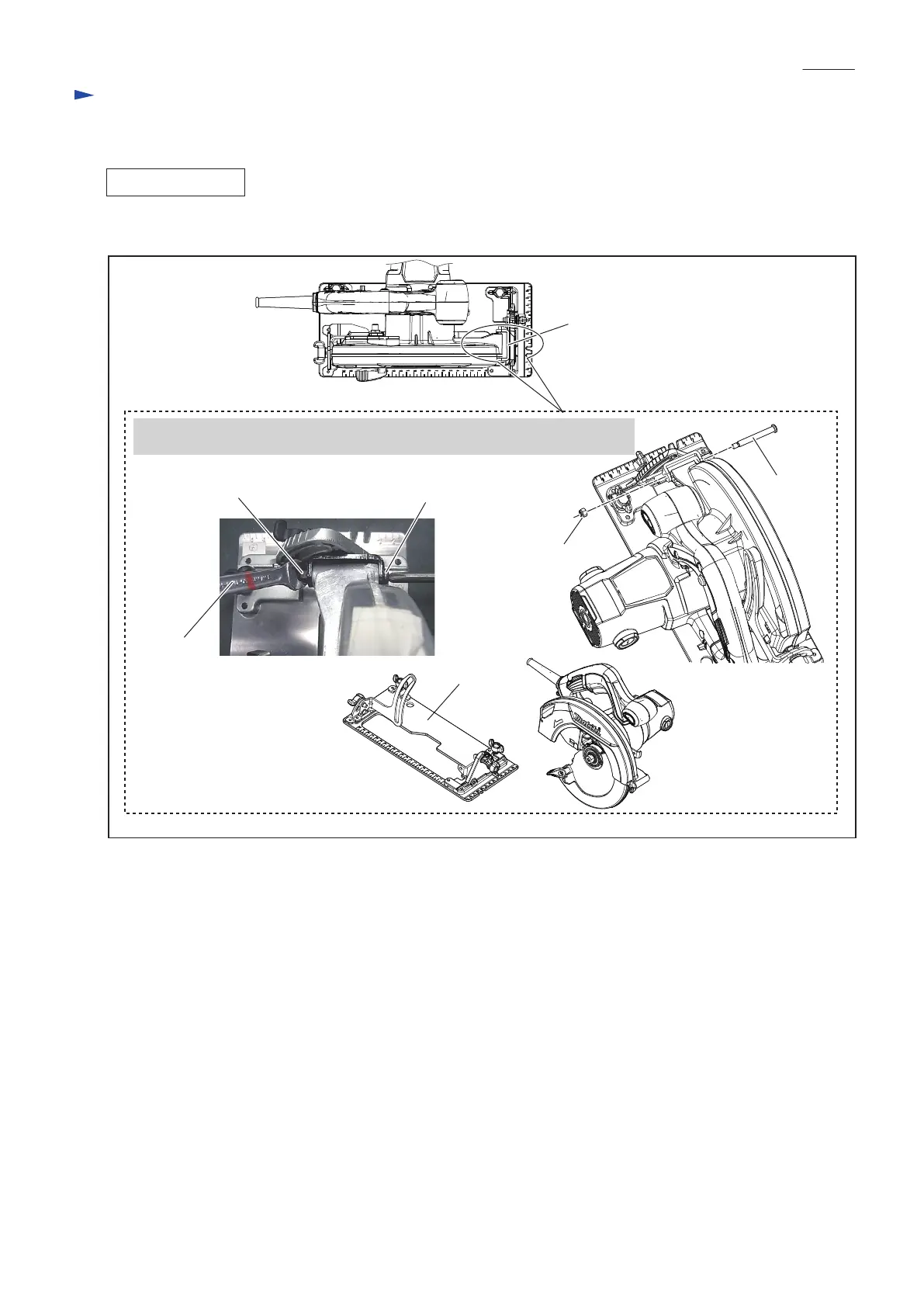

(3) Disassemble Angular guide section as drawn in Fig. 4.
Fig. 4
M5 Pan head screw
M5 Pan
head screw
While holding M5-8 Hex lock nut with a wrench 8, remove M5 Pan head screw.
Base is removed from the machine.
M5-8 Hex lock nut
M5-8 Hex lock nut
Wrench 8
Base
Angular guide section
P 4/ 11
Repair

Makita HS7601 Specifications

General

Product color	Black, Blue
Built-in light	-
Suitable for materials	Wood
Tool-free blade change	Yes
Blade bore	30 mm
Blade diameter	190 mm
Idle speed (max)	5200 RPM
Sound power level	98 dB
Cutting depth (45º)	46 mm
Cutting depth (90º)	66 mm
Sound pressure level	87 dB
Sound level uncertainty	3 dB
Input power	1200 W
Power source	AC
AC input voltage	230 V

Weight and Dimensions

Depth	309 mm
Width	232 mm
Height	255 mm
Weight	3800 g
