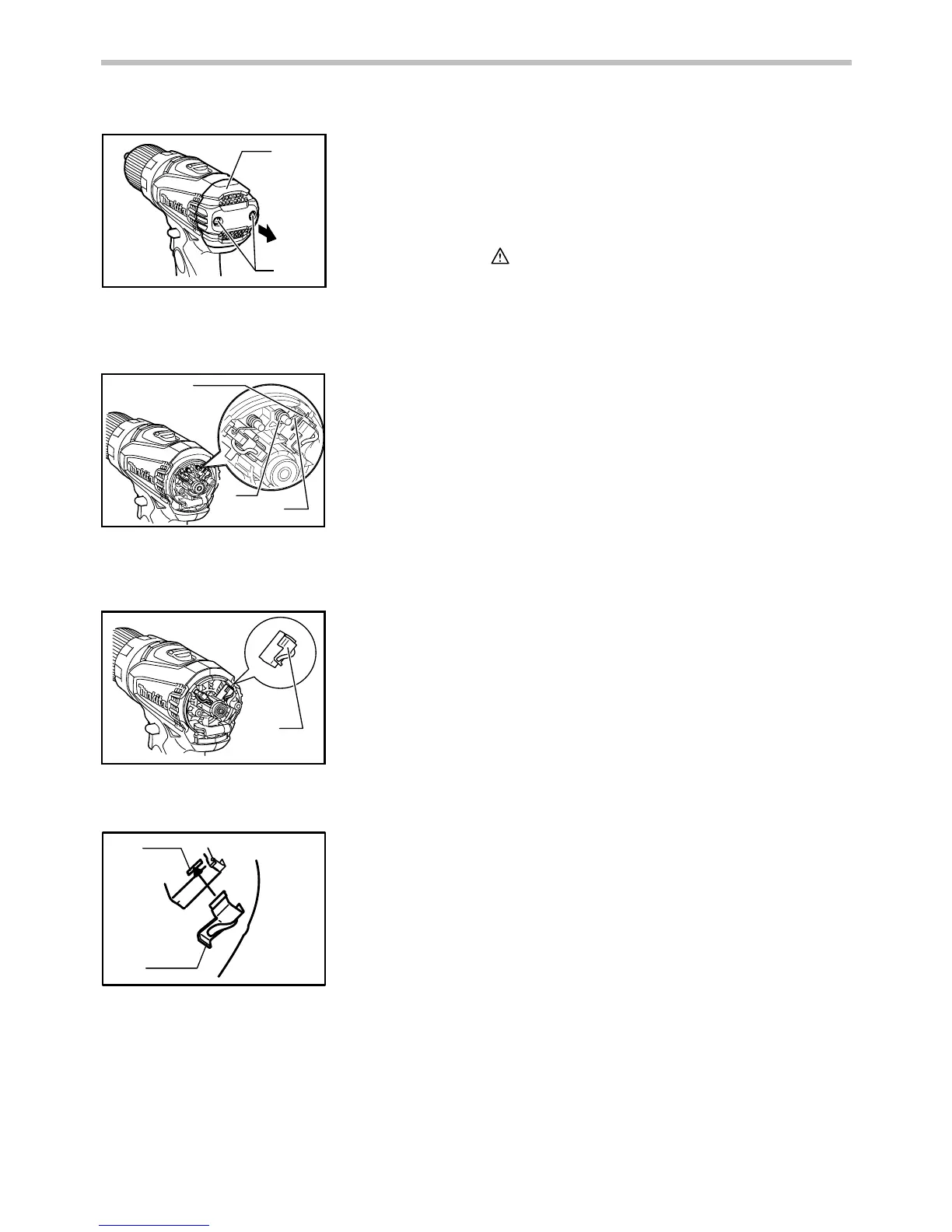

Raise the arm part of the spring and then place it in the
recessed part of the housing with a slotted bit
screwdriver of slender shaft or the like.
1
2
3
011371
Use pliers to remove the carbon brush caps of the carbon
brushes. Take out the worn carbon brushes, insert the
new ones and replace the carbon brush caps in reverse.
1
011372
Make sure that the carbon brush caps have fit into the
holes in brush holders securely.
1
2
006304
Reinstall the rear cover and tighten two screws securely.
After replacing brushes, insert the battery cartridge into
the tool and break in brushes by running tool with no load
for about 1 minute. Then check the tool while running and
electric brake operation when releasing the switch trigger.
If electric brake is not working well, ask your local Makita
service center for repair.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Drill bits
• Screw bits
• Bit holder
• Hook
• Various type of Makita genuine batteries and
chargers
• Automatic refreshing adapter
• Plastic carrying case
1. Hole
2. Carbon brush
cap
1. Carbon brush
cap
1. Recessed part
2. Spring
3. Arm
1. Rear cover
2. Screw
