8
• Do not use force when inserting the battery
cartridge. If the cartridge does not slide in easily, it
is not being inserted correctly.

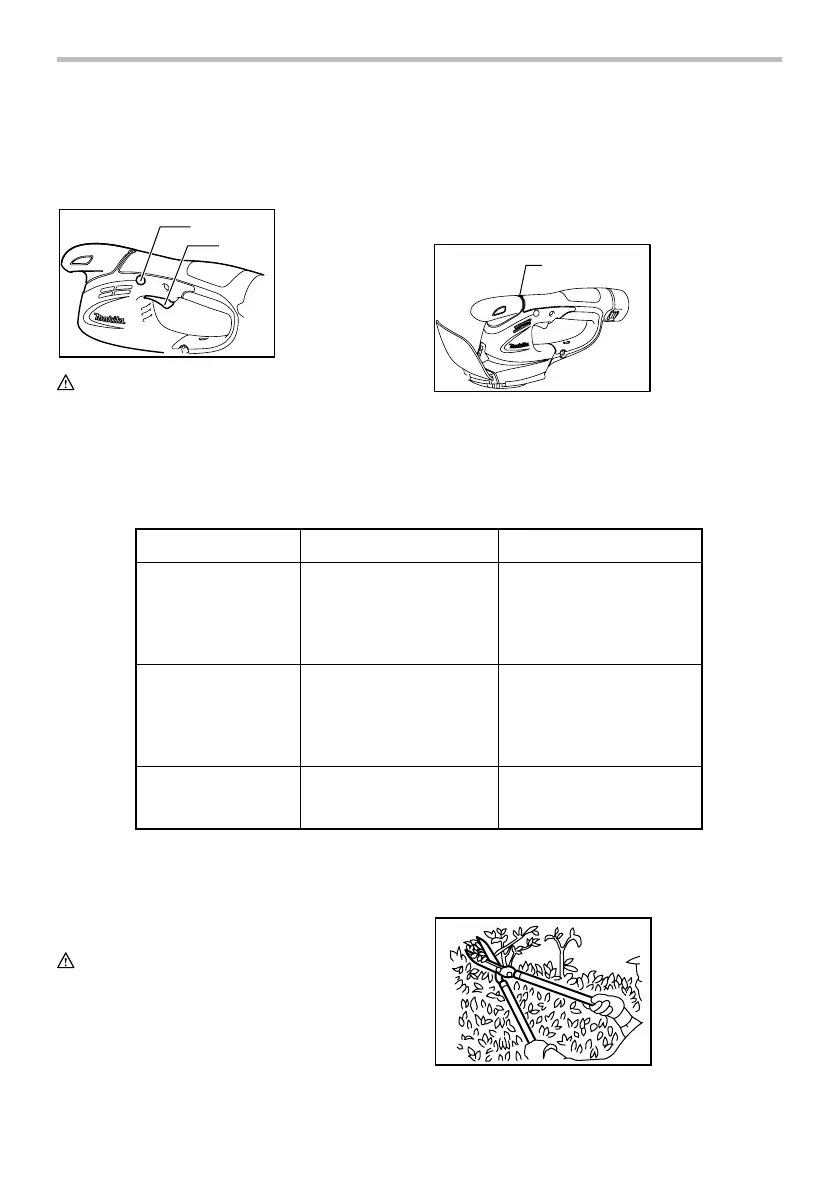

Switch action
1
2
010868
CAUTION:
• Before inserting the battery cartridge into the tool,
always check to see that the switch trigger actuates
properly and returns to the "OFF" position when
released.
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided.
To start the tool, depress the lock-off button and pull the
switch trigger. Release the switch trigger to stop. The
lock-off button can be pressed from either right or left
side.
Indication lamp
1
010969
Running the tool allows the indication lamp to show the
battery cartridge capacity status.
When the tool is also overloaded and has stopped during
operation, the lamp lights up in red.
Refer to the following table for the status and action to be
taken for the indication lamp.
Note 1:
The time at which the indication lamp lights up varies by the temperature
around the work area and the battery cartridge conditions.
Indication lamp
The lamp blinks in red
The lamp lights up inred.
(Note 1)
The lamp li
ghts up in red.
(Note 1)
Status
This indicates the appropriate
time to replace the battery
cartridge when the battery
power becomes low.
This function works when the
battery power is almost used
up. At this time, tool sto
ps
immediately
Autostop due to overload
Action to be taken
Recharge the battery cartridge
as soon as possible
Recharge the battery cartridge.
Turn off the tool.
010970
OPERATION
Refer to the Safety Warnings before operation.
CAUTION:
• Be careful not to accidentally contact a metal fence
or other hard objects while trimming. The blade will
break and may cause serious injury.
• Also, be careful for the shear blade not to contact
the ground.
• Overreaching with a hedge trimmer, particularly
from a ladder, is extremely dangerous. Do not work
from anything wobbly or infirm.
010878
1. Indication lamp
1. Lock-off button
2. Switch trigger
