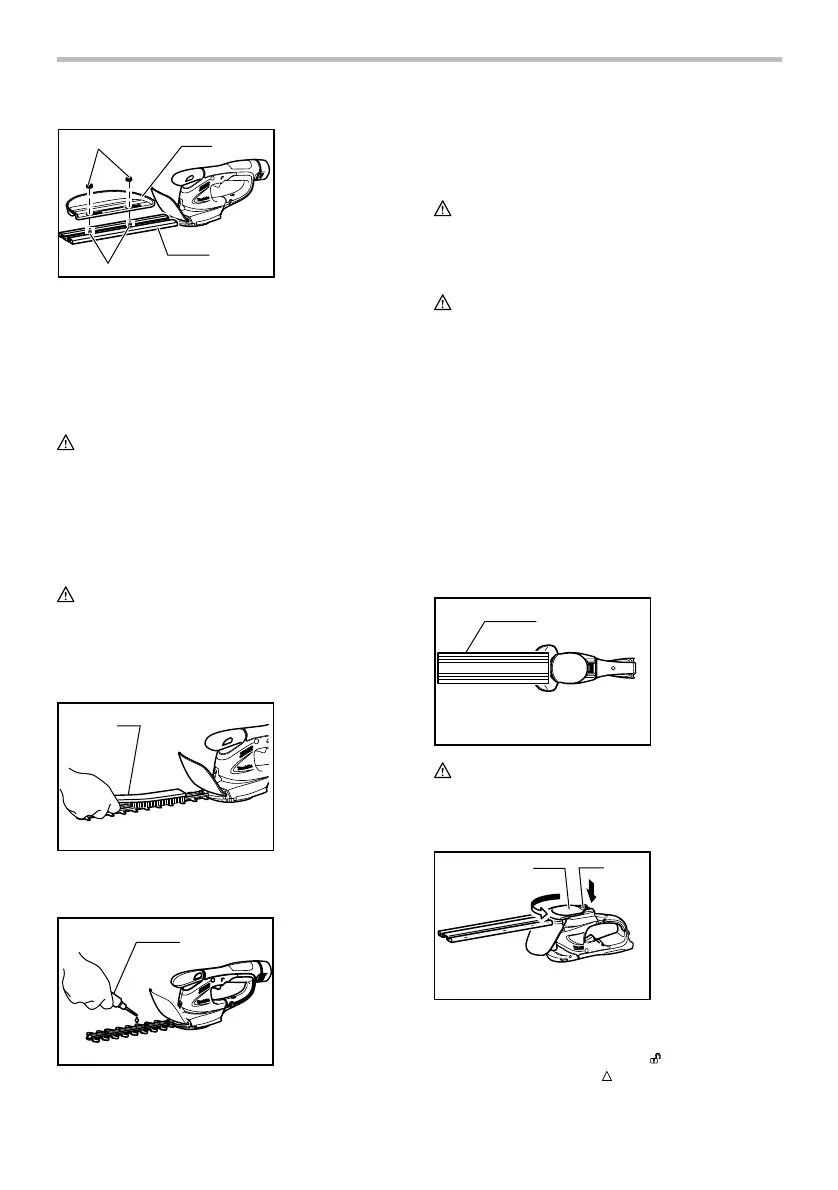

Place the chip receiver on the shear blades so that its
slits overlap with the screws on the shear blades and
secure it using two clamping nuts.
To remove the chip receiver, loosen and remove the two
clamping nuts and then take it out.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
Cleaning the tool
Clean out the tool by wiping off dust with a dry or
soap-dipped rag.
CAUTION:
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may
result.
Shear blade maintenance
1
010886
Smear the blade before and once per hour during
operation using machine oil or similars.
1
010885
After operation, remove dust from both sides of the blade
with wired brush, wipe off it with a rag and then apply
enough low-viscosity oil, such as machine oil etc. and
spray-type lubricating oil.
CAUTION:
• Do not wash the blades in water. Failure to do so
may cause rust or damage on the tool.
Removing or installing hedge shear blades
CAUTION:
• Before removing or installing shear blades, always
be sure that the tool is switched off and the battery
cartridge is removed.
• When replacing the shear blades, always wear
gloves without removing blade cover so that hands
and face do not directly contact the blade. Failure to
do so may cause personal injury.
NOTE:
• Do not wipe off grease from the gear and crank.
Failure to do so may cause damage to the tool.
• For specific way of removing and installing shear
blades refer to the reverse of a package for
accessory shear blades.
Removing the hedge shear blades
1
010890
CAUTION:
• Install the blade cover before removing or installing
the shear blades.
Reverse the tool.
1
2
3
4
010891
To remove the shear blades, press the locking lever and
with the locking lever pressed turn the undercover
counterclockwise until the symbol
on the undercover
is aligned with the symbol
on the locking lever.
1. Undercover
2. Locking lever
3. Press
4. Turn
1. Blade cover
1. Machine oil
1. Brush
1. Clamping nuts
2. Chip receiver
3. Screws on the
shear blades
4. Blade cover to
be always
installed before
installing the
chip receiver
