10 ENGLISH
2
1

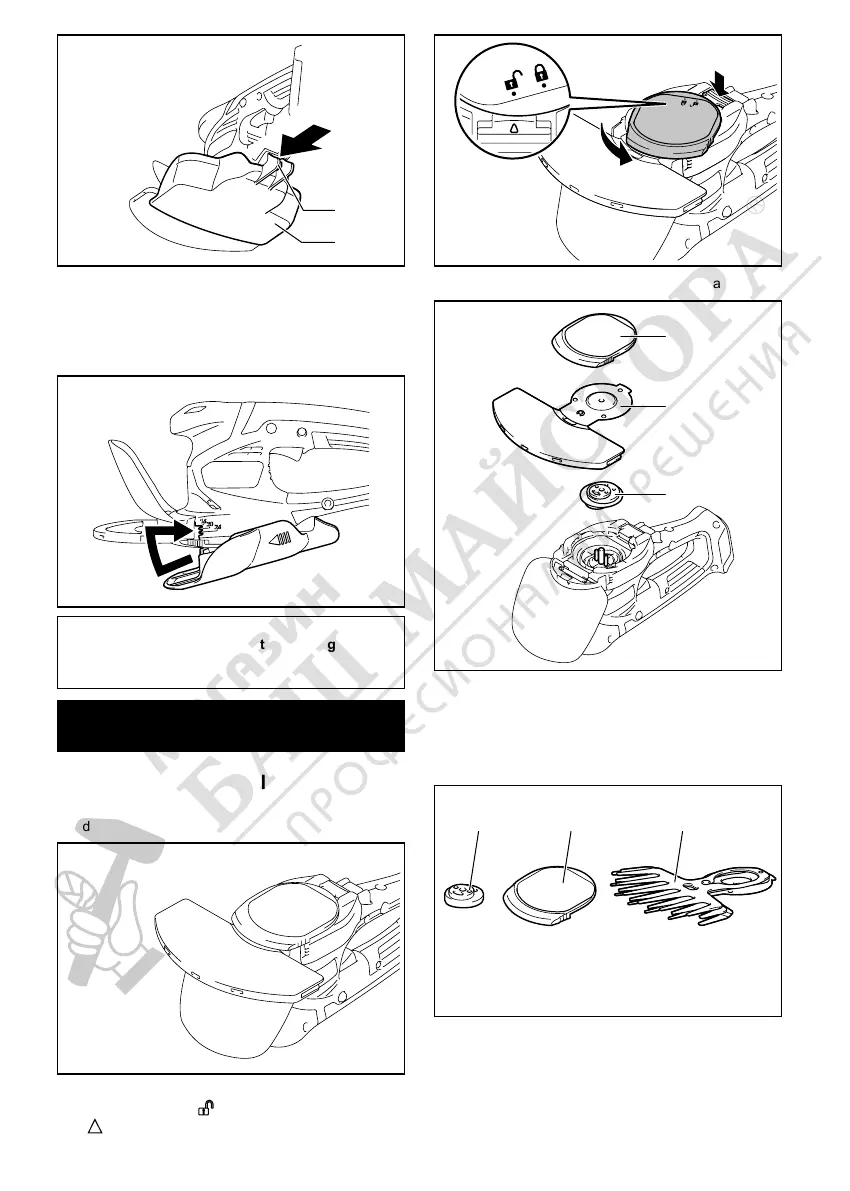

►1. Hinge 2. Grass receiver
2. Aligntheprotrusionsonthegrassreceiverwith
the grooves on the tool by sliding the grass receiver
toward the front of the tool and moving it in the direction
of the arrow.
NOTICE: Do not attach the hinge of the grass
receiver to the tool forcibly after aligning the pro-
trusions on the grass receiver with the grooves
on the tool.
Installing or removing the shear
blades for grass shear
Removing the shear blades
1. Remove the grass receiver and place the tool
upside down.
2. While pressing the lock lever, turn the undercover
counterclockwise until on the undercover is aligned
with on the lock lever.
3. Remove the undercover, shear blades, and crank.
3
2
1
►1.Undercover2. Shear blades 3. Crank
Installing the shear blades
1. Preparethecrank,undercover,andnewshear
blades.
1 2 3
►1. Crank 2.Undercover3. Shear blades
2. Remove the blade cover from the old shear
blades, and then attach it to the new ones.
To Next Page
