4 3D Project
__________________________________________________
3D Project is a tool that makes the gathering and visualization of radar data
measured in two perpendicular directions easier, directly in the CX unit. A
typical application for which 3D Projects are effective is the mapping of re-
bars and joists in concrete. The 3D Project option in the CX will guide you
through all steps involved in the data collection to the final processed 2.5D
view of the investigated area. The measurement can be carried out using a
grid-mat, for fast and easy data collection (Fig 3.1).

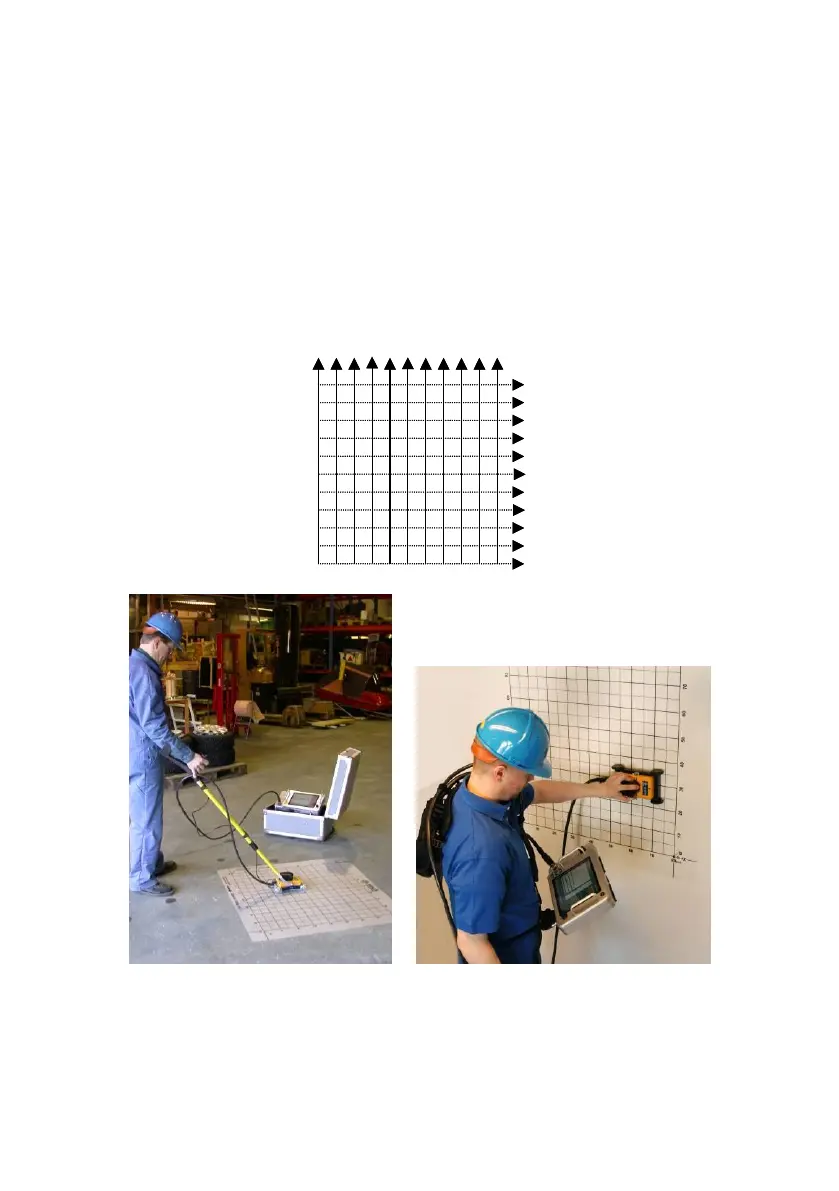

Figure 3.1 Examples of 3D Project measurements with a grid-mat.
For best result the grid-mat and the investigation lines should be placed as
perpendicular to the searched object as possible. If no knowledge of the
direction of for instance a rebar net is available, it is advisable to carry out
