The MALÅ GPS standard, GPS format contains the following information:
trace number, date, latitude, longitude, height above mean sea level, and
HDOP. The HDOP value is a theoretical measure of the accuracy in the
horizontal coordinates based on the positions of the available GPS
satellites. A lower value indicates better accuracy. The date and time is
expressed in Greenwich Time zone. An excerpt from a data file is seen
below:
Trace date time latitude N longitude E “height above MSL” M HDOP
1 2008-05-14 08:52:44 59.368000 N 18.248722 E 15.9 M 2.4
2 2008-05-14 08:52:49 59.368000 N 18.248722 E 15.4 M 2.7
16 2008-05-14 08:52:51 59.368008 N 18.248701 E 15.1 M 2.7

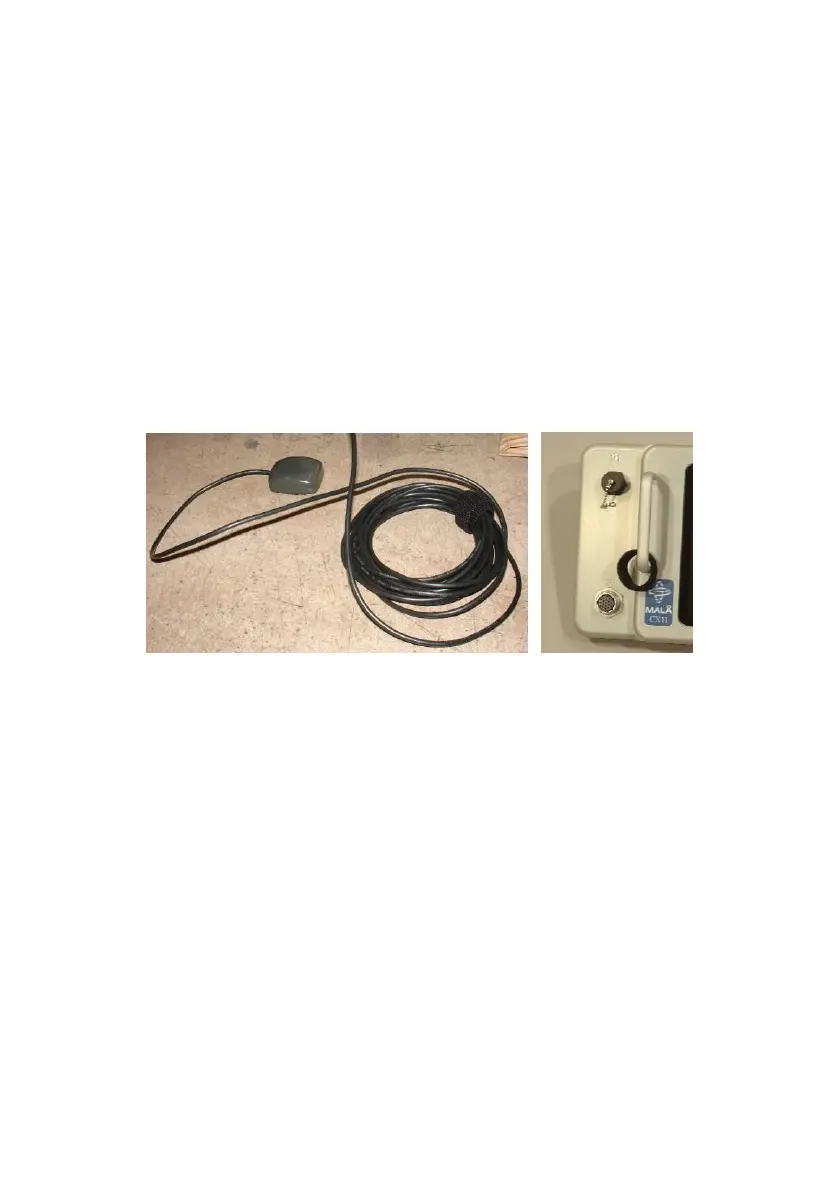

The GPS system functioning with the CX system is: GM-158-USB (from
San Jose Navigation Inc.).
The USB port is found top left on the CX Main unit, under the cap.
Note! The GPS should not be connected to the main unit before the CX
system is powered and running.
