10

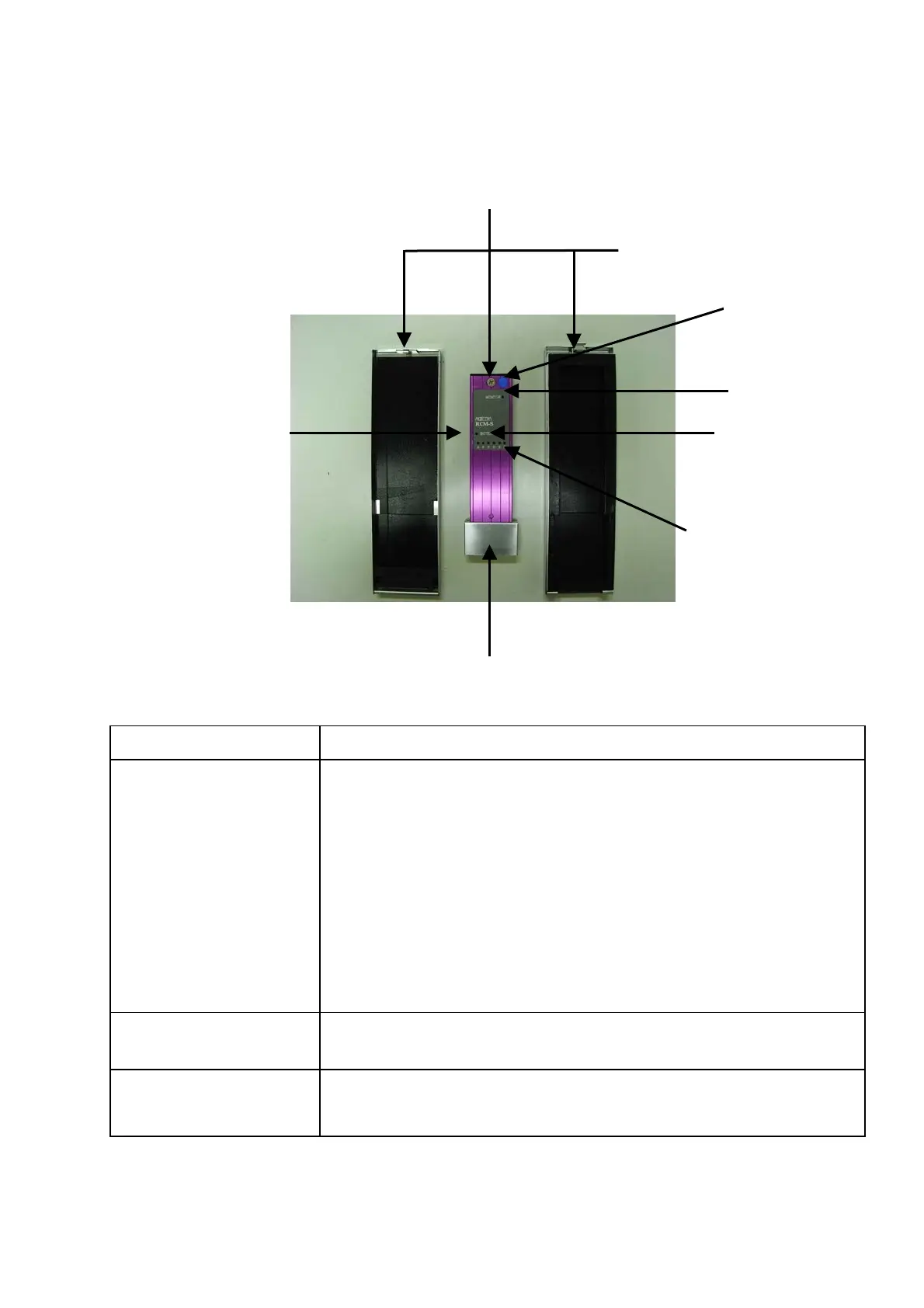

I-5 Names of parts
I-5-1 Memory unit
Parts name Function
①RCM-S Main unit The temperature data memory circuit is contained. This unit measures
temperature at a constant interval and memorizes the data into the
internal memory starting from turning on of the switch (Monitor LED Green
lights up) to stopping measurement , or the connection to a PC.
When Monitor LED has gone off, turn on the power switch again (Monitor
LED lights up in blue) to connect to a PC before retrieving data.
20 data is stored up. A memory unit with Lithium ion battery is turned
ON by direct connection to a PC.
② Heat resistant case for
RCX-S
Protects the memory unit against the high temperature of furnace for a
specified heat-resisting time.
③ K-type connector
(female)
Heat resistant connector for thermocouples. The metal part is made of the
same material as that of K-type (CA) thermocouple.
③ K-type connector (female)
② Heat resistant case for RCX-S
⑥ USB cable connector
⑤ Battery LED
④ Monitor LED
⑦ Power switch
⑧ Thermocouple
checking LED
① RCM-S Main unit
