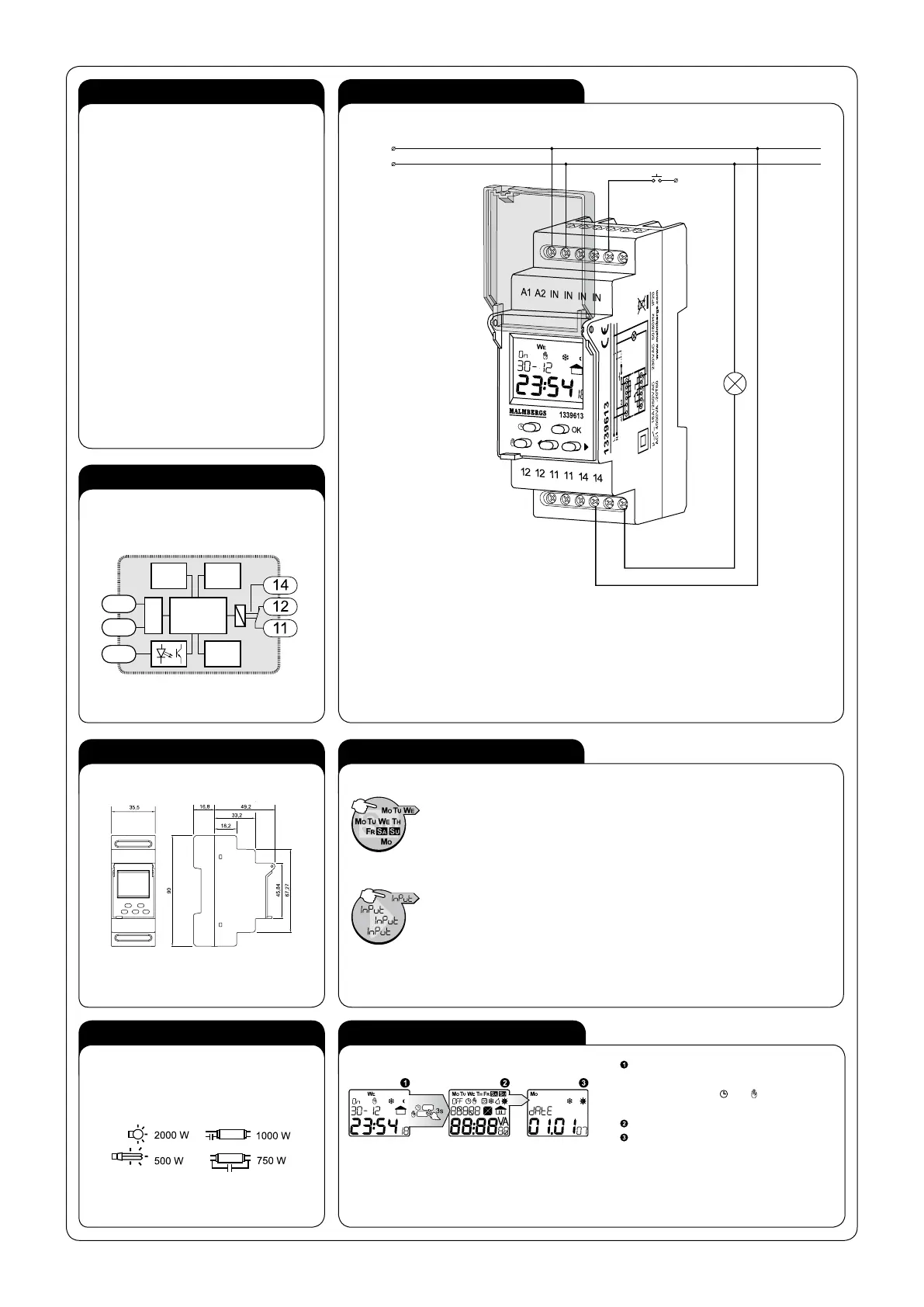

ASSEMBLY
INTERNAL SCHEME
CASING MEASUREMENTS ADVANTAGES
CONNECTION
LOAD CAPACITY MAIN RESET
1. Disconnect power supply circuit with a
fuse, electrical energy redundant switch or
insulation switch (all of them connected to
adequate circuit).
2. Check non-voltage status on power supply
conductors, with an appropriate tool.
3. Assemble the appliance 1339613 in the
switching station on the TH 35 rail.
4. Connect conductors under clamps according
to the connection scheme.
In order to cancel the clock system (time,
date, activity of given functions etc.) you
should hold buttons (
and ) simultaneously
in the main menu for 3 sec;
All the display fields will light up;
After a while, the clock will automatically
set date and time.
Attention: In order to restore factory settings, you should additionally hold button OK.
A2
A1
IN
µC
KLAW. LCD
RTC
ZAS.
L(+) / N(-)
N(-)
Intelligent calendar – the system has an in-built calendar, which
automatically takes into account leap years, it makes introducing non-
existent date impossible, and also calculates a day of a week on the
grounds of a date and it takes into account the change of time into
winter/summer one.
Universal external input – the system has an external input, with the
help of which a user can enforce change of clock work mode without
the necessity of interfering in a switchboard but using e. g. remote
controller button.
