Hardware features Chapter 2
Scirocco 2000 Page 2-7
Rear panel

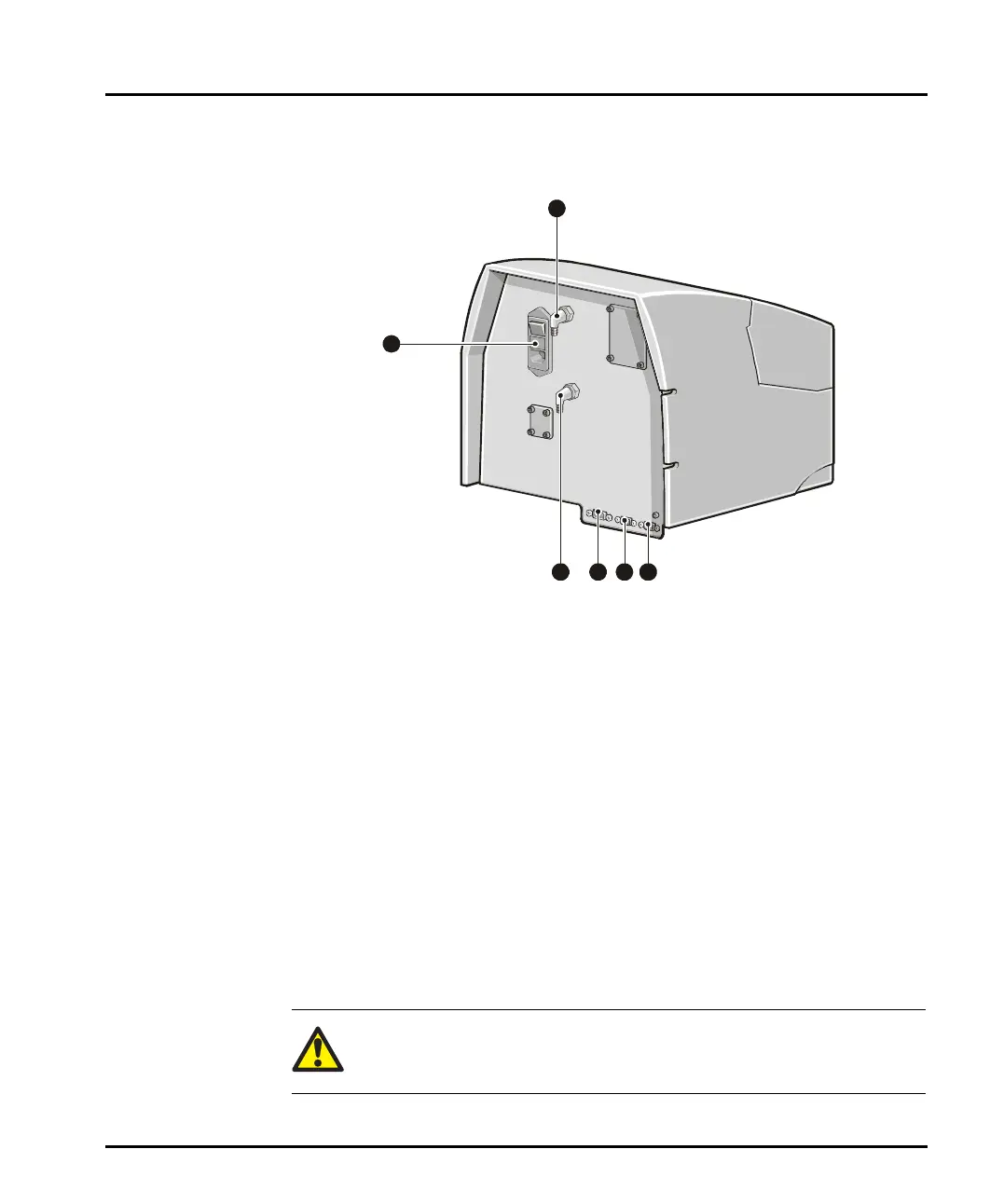

This illustration shows the main features of the rear panel:
ill 4979
Mains power supply
The mains power supply is a standard IEC socket that supplies mains power to the
dispersion unit. The connector also houses the dispersion unit’s fuses and on/off
switch.
Auxiliary connector
The auxiliary connector is connected to the vacuum switcher box.
Accessory comms “in” connector
The communications cable from the optical bench or from another dispersion unit
connects here.
Accessory comms “out” connector
If more than one dispersion unit is connected to the system and this is the first dis-
persion unit in-line, a communication cable will be connected from here to the
“accessory comms - in” connector of the second dispersion unit.
Caution!
A termination plug must be fitted to this connector if this is the only dis-
persion unit connected or it is the last dispersion unit in the line.
4
5 3
2
6
1
MAN0386-1.0 Scirocco 2000.book Page 7 Friday, March 16, 2007 4:15 PM
