Hardware features Chapter 2
Scirocco 2000 Page 2-9

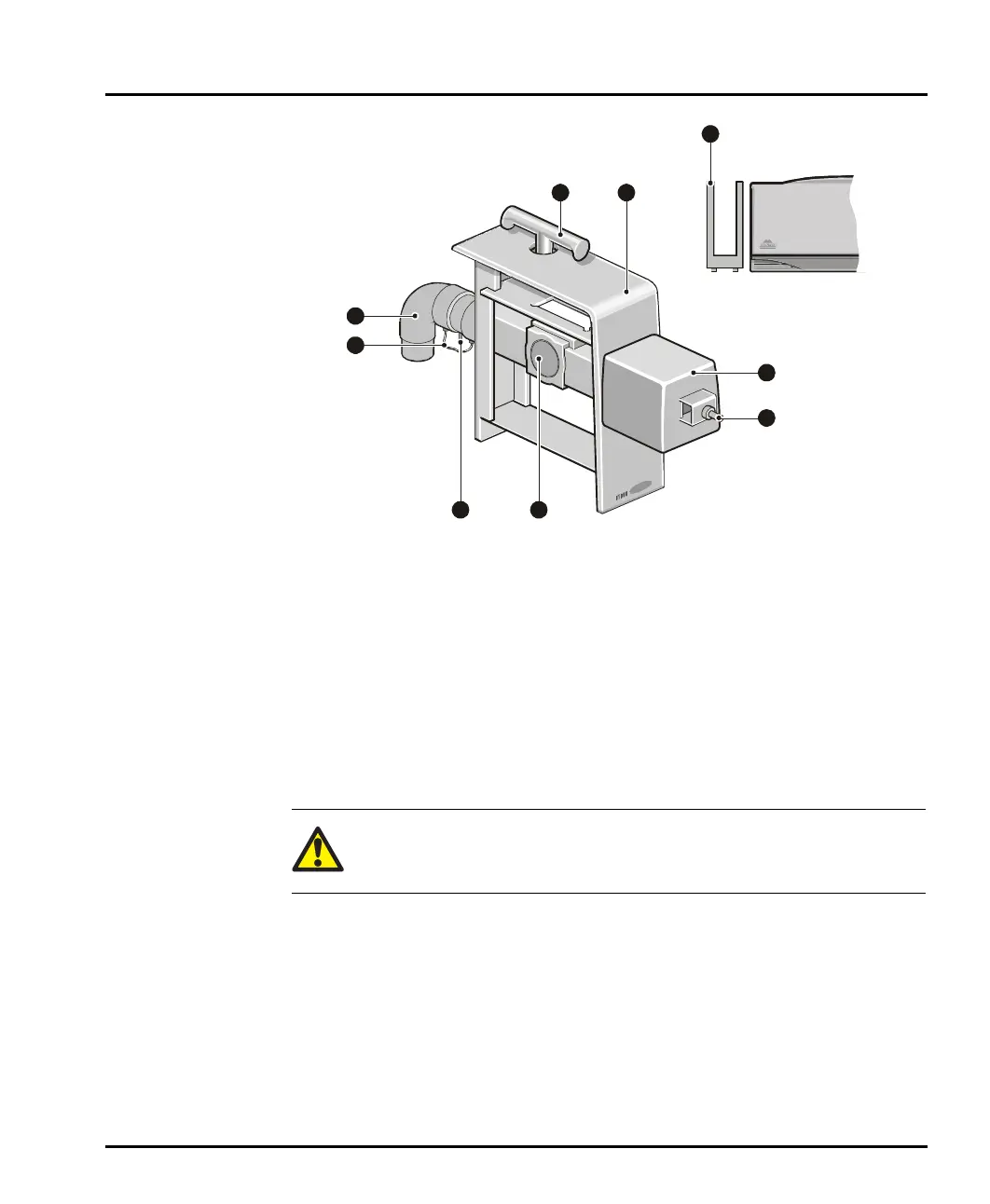

ill 4944
 Noise protection box
This dampens any noise emissions from the air cell.
 Sample inlet
The sample tube from the dispersion unit is connected to this inlet
 Locking handle
The cell locking handle must be rotated anti-clockwise to lock the cell in place on
the optical bench. To remove the cell, disconnect the sample inlet tube from the
sample inlet, rotate the handle clockwise and lift the cell clear.
Warning!
Never attempt to lift the optical bench by the locking handle of the cell.
See the Health and Safety information for correct moving techniques.
 Cell shroud
The cell shroud prevents stray light entering the measurement area and affecting a
measurement. More importantly, it stops human access to laser radiation. The sys-
tem should never be used if the cell shroud is damaged.
 Cell windows
The cell windows allow the analyser beam of the optical bench to pass through the
cell and hence the particle field. The cell windows can be removed to allow clean-
INSTRUMENTS
4
5
3
2
9
8
7
6
1
