Hardware features Chapter 2
Scirocco 2000 Page 2-11
Vacuum switcher box

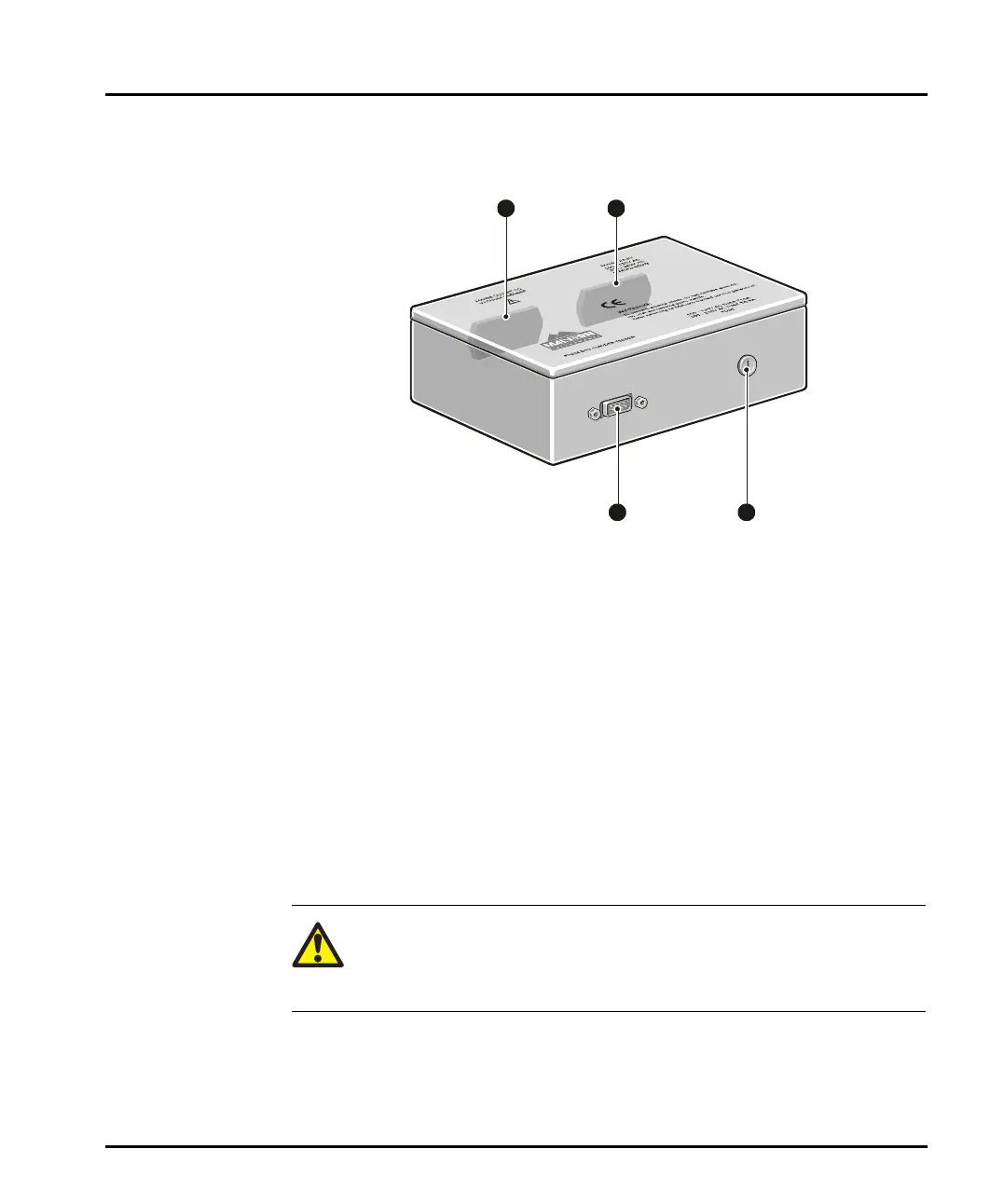

This diagram shows the features of the vacuum switcher box:
ill 4941
“From dry power feeder” connector
This connector connects to the dispersion unit’s Auxiliary connector. The vacuum
unit is controlled via this connector.
Fuse holder
This holds the vacuum switcher box fuse. Any replacement fuse must be of the
correct type and value (see the cover of the vacuum switcher box for details).
Mains inlet socket
The mains power supply is a standard IEC socket that supplies mains power to the
switcher box.
Mains outlet socket
The mains power outlet is connected to the vacuum unit.
Warning!
The warning symbol near this socket is there to warn that this power
socket is switched on and off by computer control. The operator must be
aware that this power socket may be powered unexpectedly.
4 3
2
1
MAN0386-1.0 Scirocco 2000.book Page 11 Friday, March 16, 2007 4:15 PM
