Man E 0824 E 301 User Manual

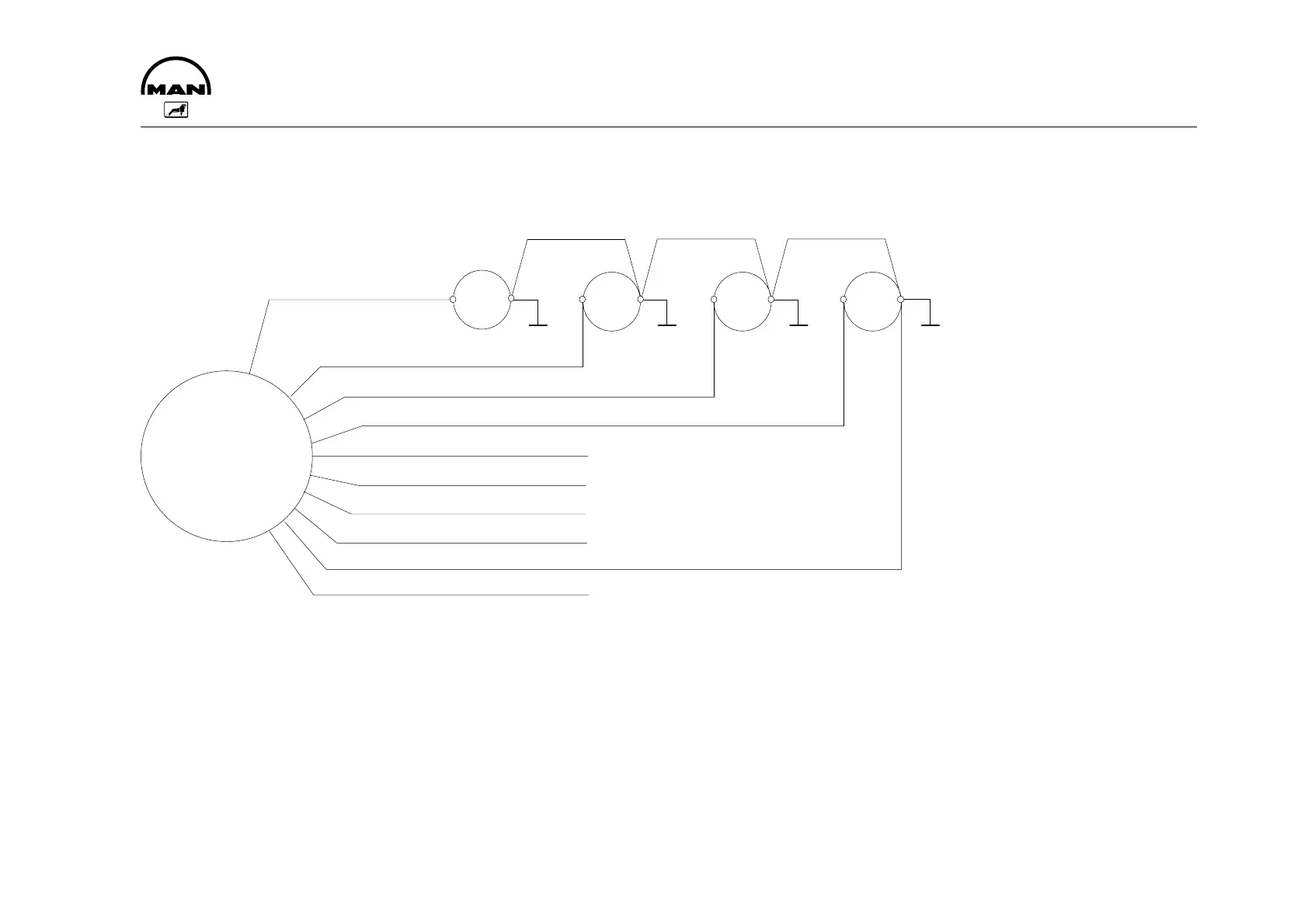

Cable harness for the output signals from the control unit
for E 0824 E engines
+
–
+++
1
–
––
234Cylinder
A
D
B
C
E
F
G
H
I
J
7
1, 2, 3, 4 Ignition coils of the respective cylinders D brown (cylinder 2)
(the 1
st
cylinder is located at the non-flywheel end) E blue (not required in 4-cyl. engine)
F orange (not required in 4-cyl. engine)
7 Plug G white / green (not used)
A red (cylinder 1) H white / orange (not used)
B yellow (cylinder 3) I white (minus)
C green (cylinder 4) J grey (rev counter)
