General

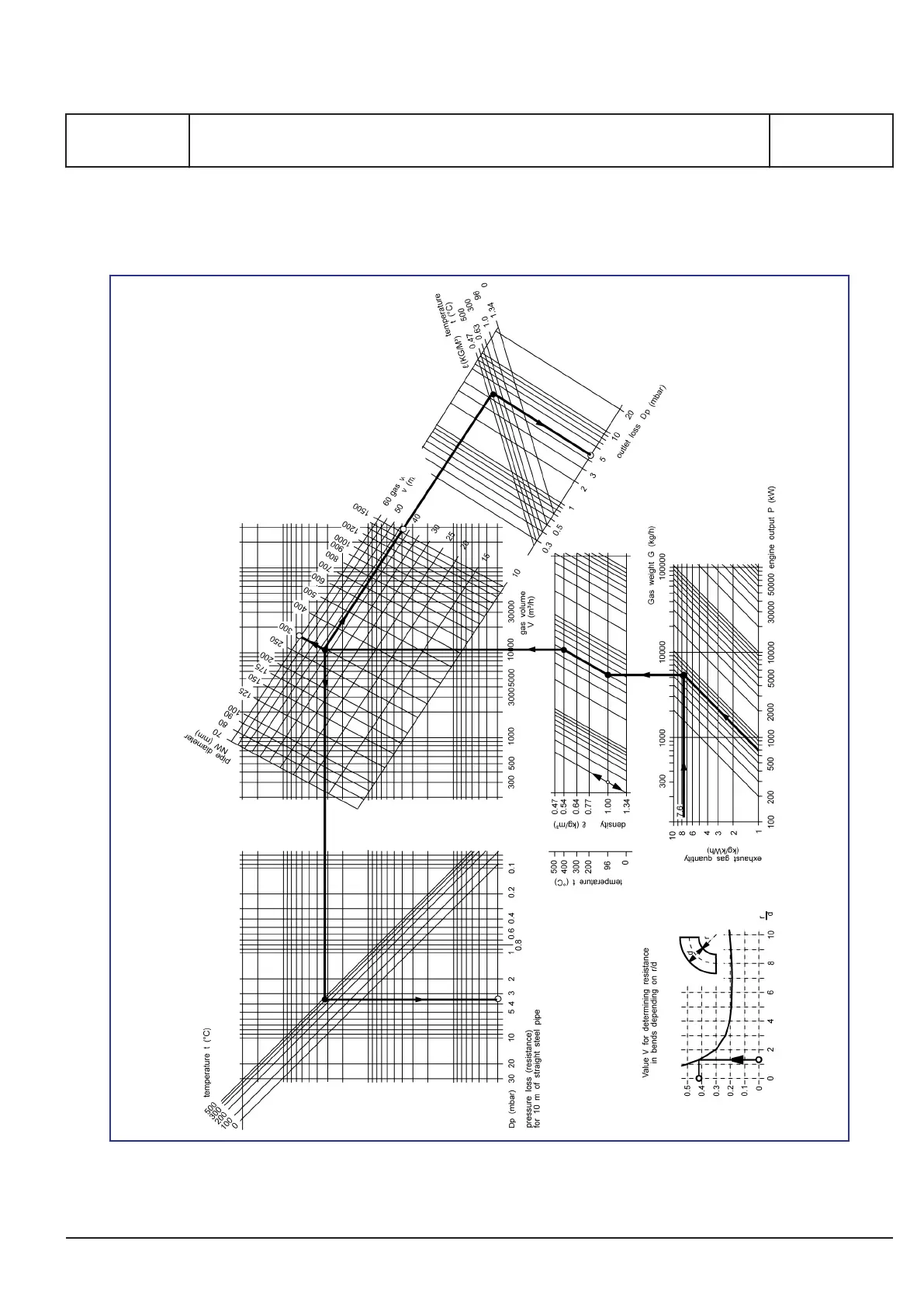

Figure 1: Nomogram for pressure drop in exhaust gas piping system.
MAN Diesel & Turbo
1624460-4.2
Page 1 (2)
Pressure droop in exhaust gas system
B 16 00 0
L28/32S, L23/30S, L27/38S, L21/31S, L16/24S, V28/32S-DF, V28/32H, L23/30DF,
L28/32DF, V28/32S, L16/24, L21/31, L23/30H, L27/38, L28/32H
2015.11.27
