Man L16/24S

Dismantling height

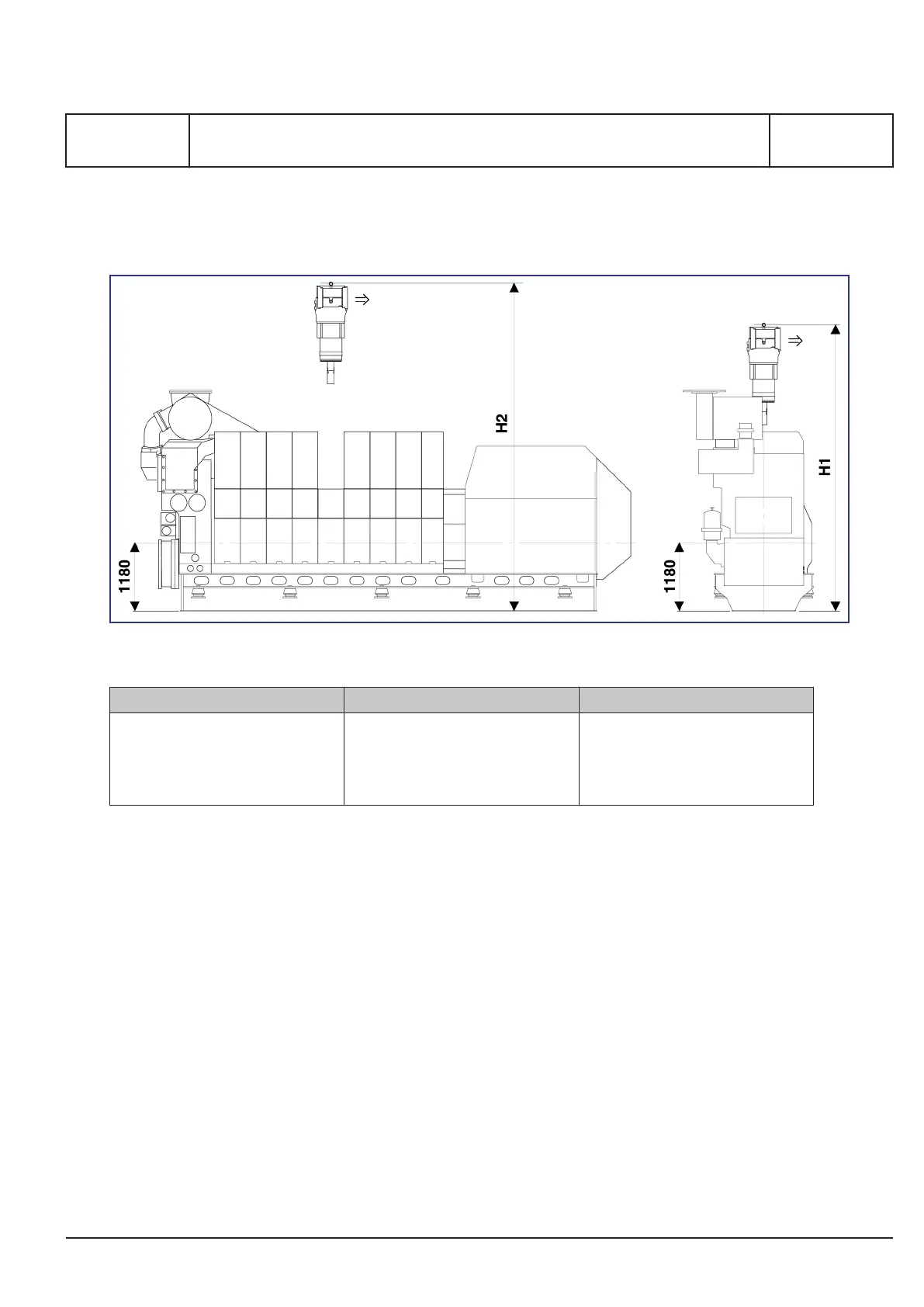

Figure 1: Dismantling height.
Description
H1 (mm) H2 (mm)
Normal dismantling:
Cylinder unit
Low dismantlig:
Cover and liner separate
4201
3891
4791
–
H
1
H
2
:
:
For dismantling at the service side.
For dismantlig passing the alternator.
(with standard alternator, remaining cover not
removed.)
MAN Diesel & Turbo
1665770-6.6
Page 1 (4)
Overhaul areas
B 10 01 1
L27/38S, L27/38
2015.11.27
