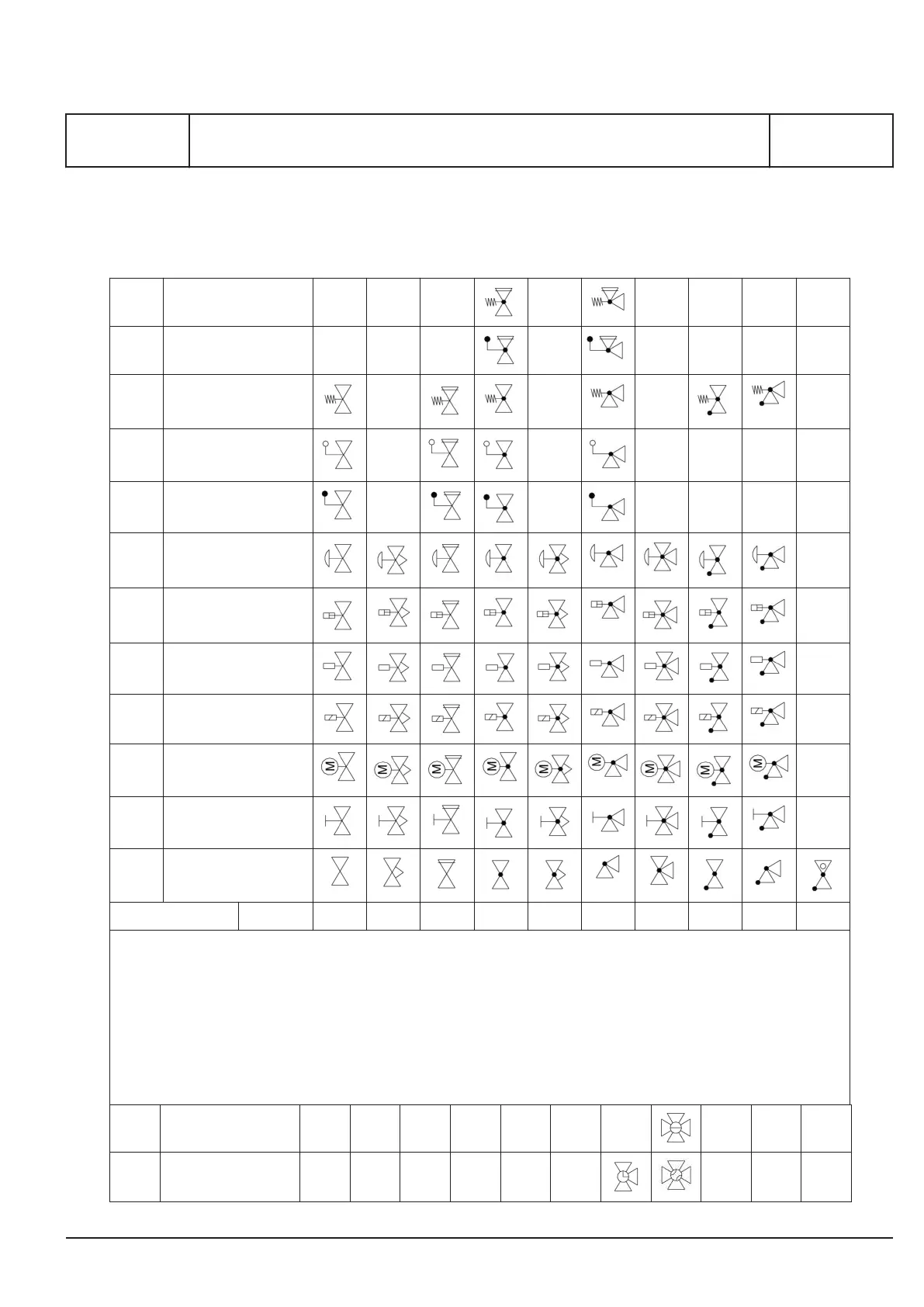

Basic symbols for piping
2237 Spring operated safety
valve
2238 Mass operated Safety
valve
2228 Spring actuator
2284 Float actuator
2229 Mass
2231 Membrane actuator
2230 Piston actuator
2232 Fluid actuator
2223 Solenoid actuator
2234 Electric motor actuator
2235 Hand operated
Basic Symbol
Valves 584 585 593 588 592 590 591 604 605 579
584: Valve general
585: Valve with continuous regulation
593: Valve with safety function
588:Straight-way valve
592: Straight-way valve with continuous regulation
590:Angle valve
591: Three-way valve
604: Straight-way non return valve
605: Angle non-return valve
579: Non-return valve, ball type
I - bored
L - bored
MAN Diesel & Turbo
1655279-1.1
Page 7 (10)
Symbols for piping
I 00 25 0
L27/38S, L16/24, L16/24S, L21/31, L21/31S, L23/30H, L23/30S, L23/30DF,
L28/32H, L28/32S, V28/32H, V28/32S, L27/38, L28/32DF
2015.11.17
