Flange mounting a gearbox
26

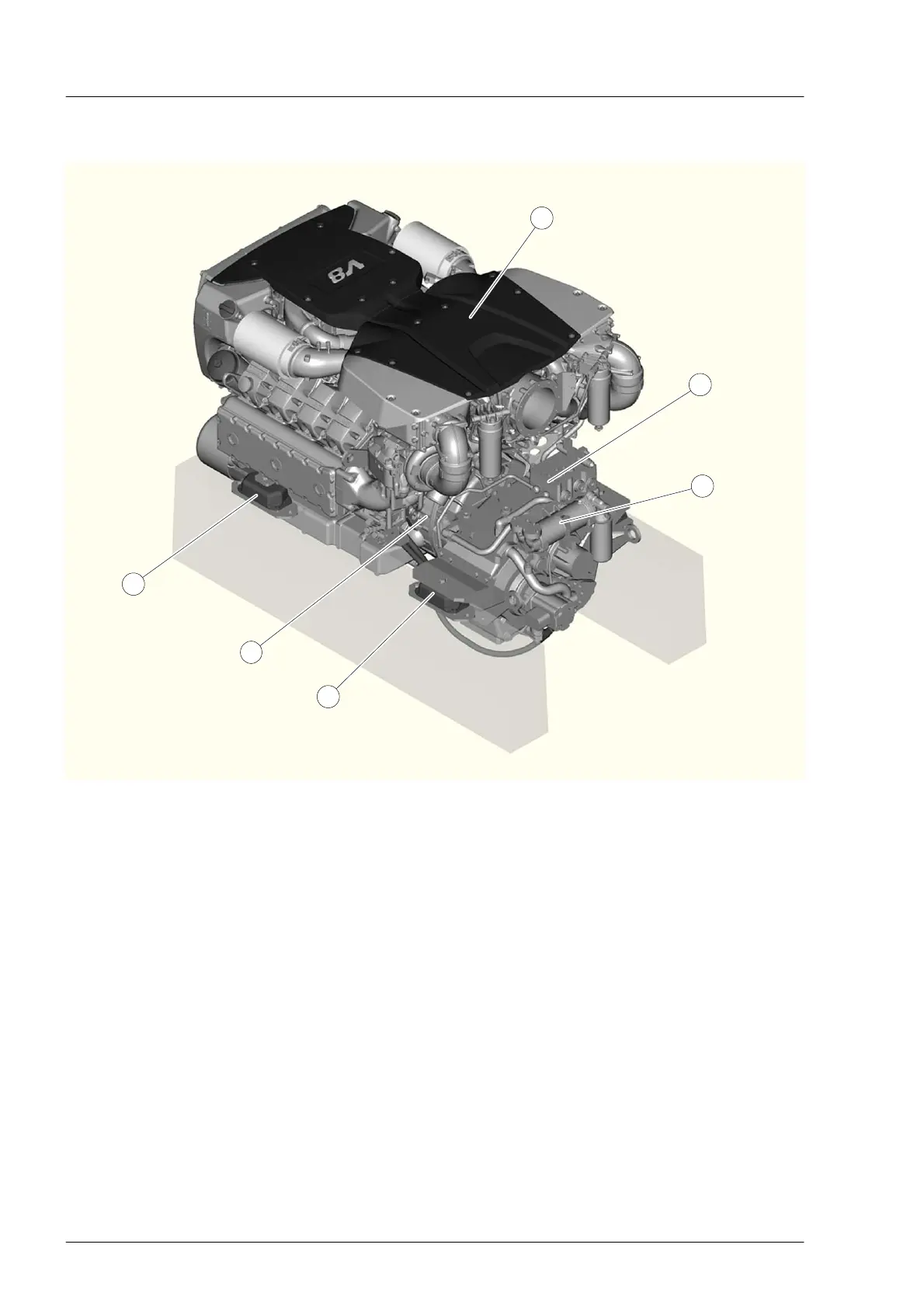

Drive line consisting of the engine and flange−mounted gearbox
6
4
5
1
2
3
À Engine (in this case V8−1200)
Á Reversing gearbox flanged mounted at flywheel housing
 Gearbox cooler, see page 48
à Resilient gearbox mount, see page 20
Ä Flywheel housing, see page 27, 28
Å Resilient engine mount, see page 20
Torsional−vibration analysis
The forces of gas and inertia from the engine can cause vibration of the entire drive line. In order to
determine the resonance in terms of position and strength and to avoid overstressing, a torsional−vibration
analysis is required.
This can be carried out by MAN for a fee. The requisite data are to be collected during the project phase in
the form of a questionnaire − "Questionnaire on torsional vibration calculation for ship’s drive line".
