Cabin heater
65

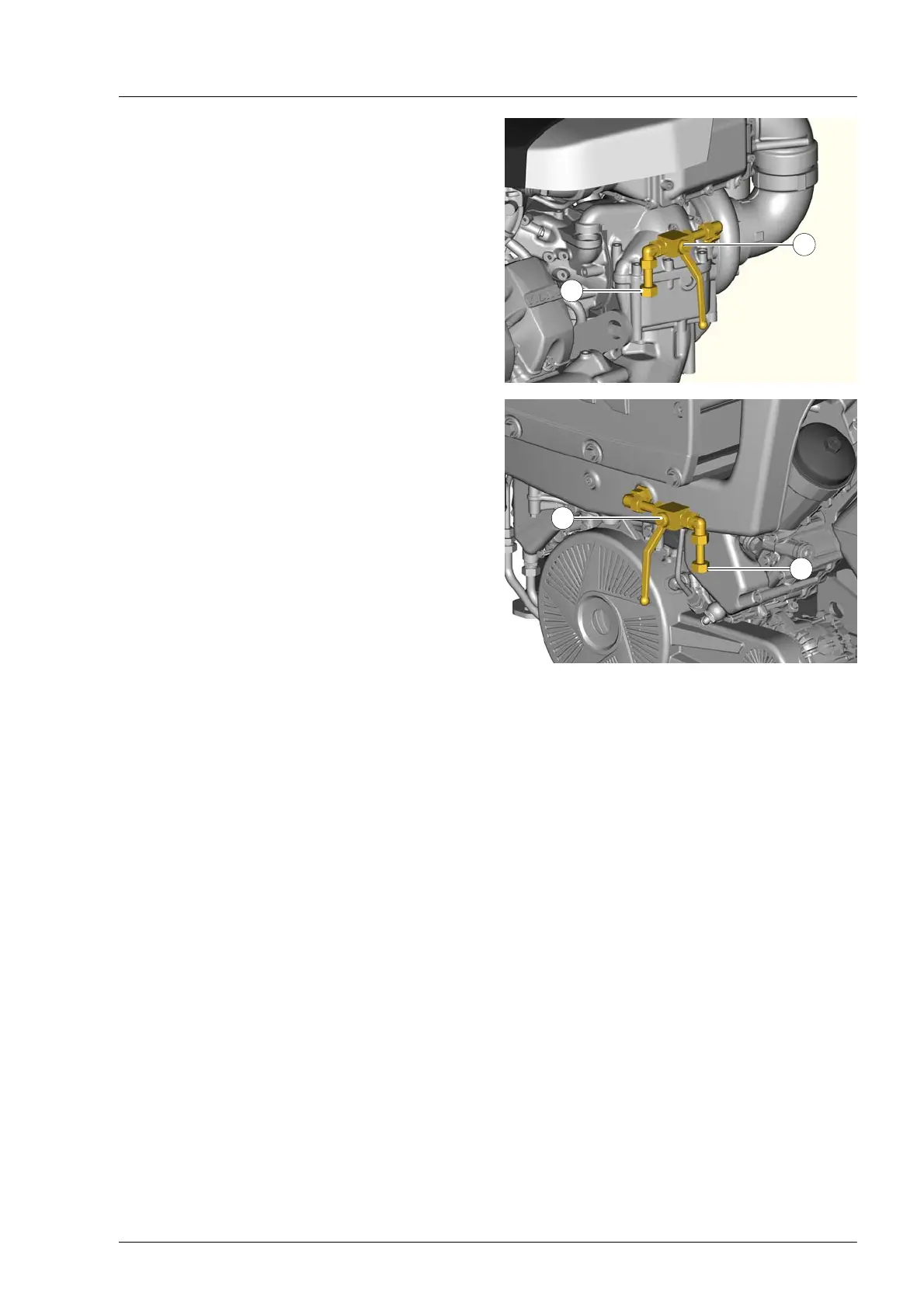

Connection of cabin heater
If required, the engines can be equipped at the
factory with a connection for the cabin heater.
Feed line
À Ball valve
Á Union nut for threaded connection M26x1.5
Return line
 Ball valve
à Union nut for threaded connection M26x1.5
To connect the pipes for the heater (to be done by
the shipyard) threaded connections are delivered
with the equipment; these can be combined
depending on the installation situation .
The inside diameter of the pipes must measure at
least 16 mm. The max. permissible pressure loss
of the entire system, consisting of pipes and heat
exchangers, is 1.5 bar.
1
2
4
3
