Engine mounting
21

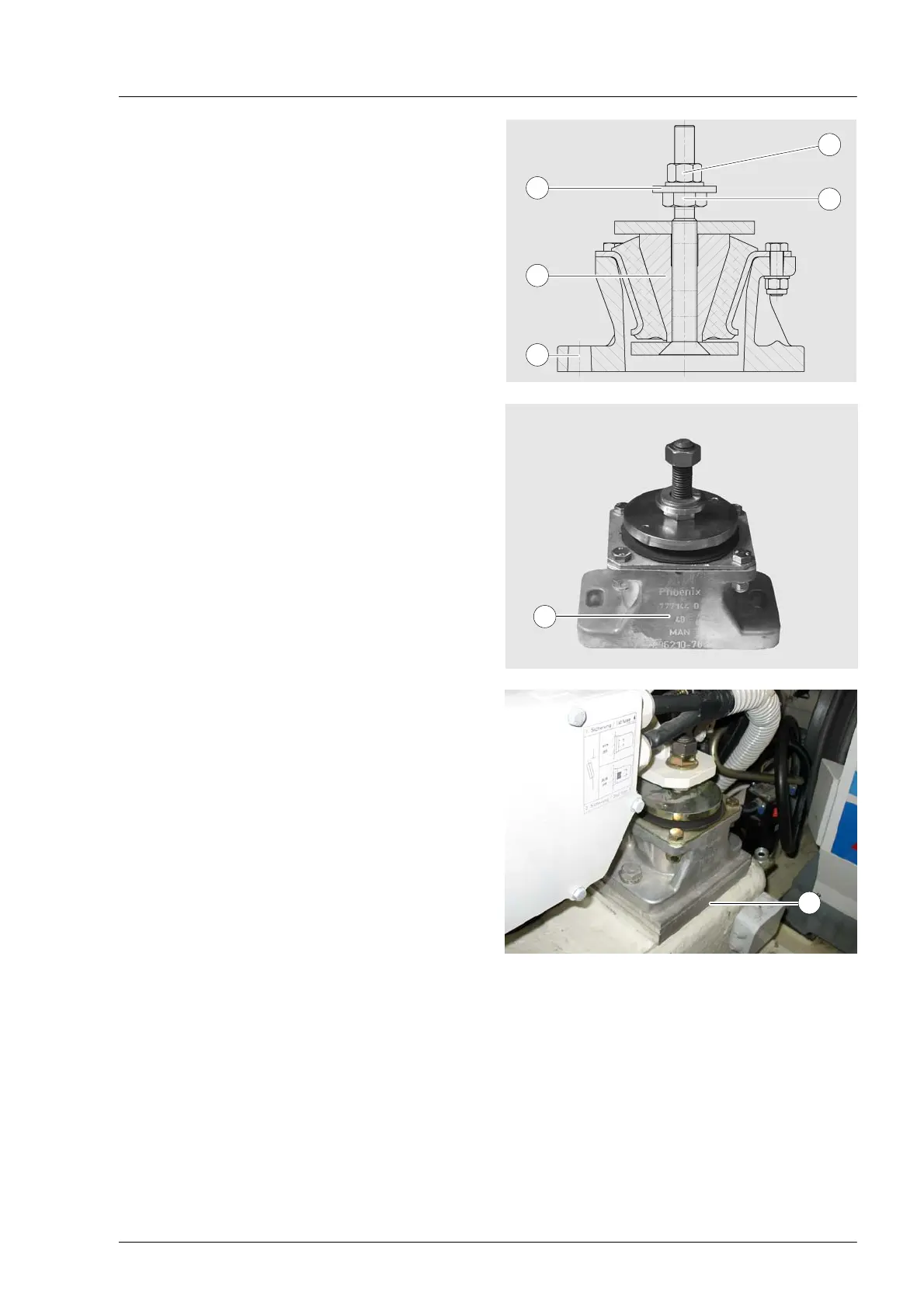

Resilient cone engine and gearbox
mounts for V8−1200 with integral
V−gearbox
À Mounting nut for engine base M20
Á Height adjustment
 Elongated hole for mounting bolts M18
à Cone mount
Ä Supporting disk for engine base
Å Designation of the mount according to Shore
hardness
The installation drawings have information on the
dimensions of the mounts and the drilling pattern
for the foundation.
Installation of the mounts
D Place engine with mounts onto foundation.
D Align the drive train after allowing the mounts to
settle for 48 hours, see page 29.
D Tighten mount bolts  to 260 Nm.
D Tighten mounting bolts M20 À.
D The height of the mounts can be adjusted up to
max. 10 mm. Try not to use the entire range on
the height adjustment so as to have room for
adjustments later. Large difference in heights
between the mounts can be compensated for
by using shims.
1
2
3
4
5
6
7
