Man V8-1200 Installation Instructions

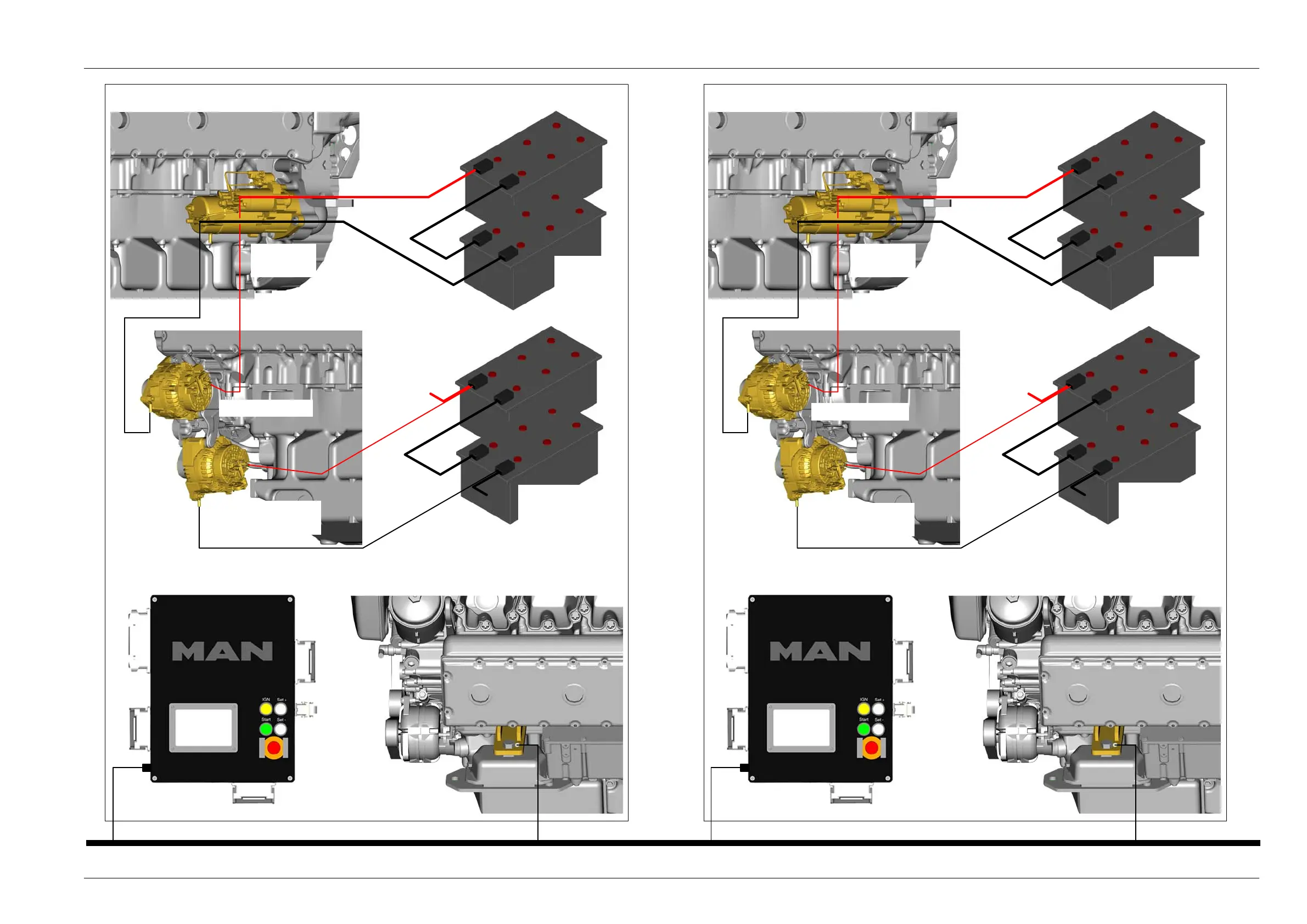

Potentialfree wiring diagram of basic components
87
Port engine
Vessel potential
Starboard engine
2nd. Alternator
(optional)
1st. Alternator
Starter
motor
Batteries
for additional
onboard
consumers
Terminal box Engine and gearbox brackets
Starter
motor
Batteries
for starter
motor
Batteries
for additional
onboard
consumers
2nd. Alternator
(optional)
Terminal box Engine and gearbox brackets
Batteries
for starter
motor
1st. Alternator
