See Figure VTA sealing air pipe on TCA turbocharger
Turbocharger Outside diameter for
connecting pipe
Thickness of pipe wall Resulting
flow cross section
mm mm mm²
TCA55 16 2 113
TCA66 16 2 113
TCA77 20 2 201
TCA88 20 2 201
Table 13: Pipe connection for the sealing air system

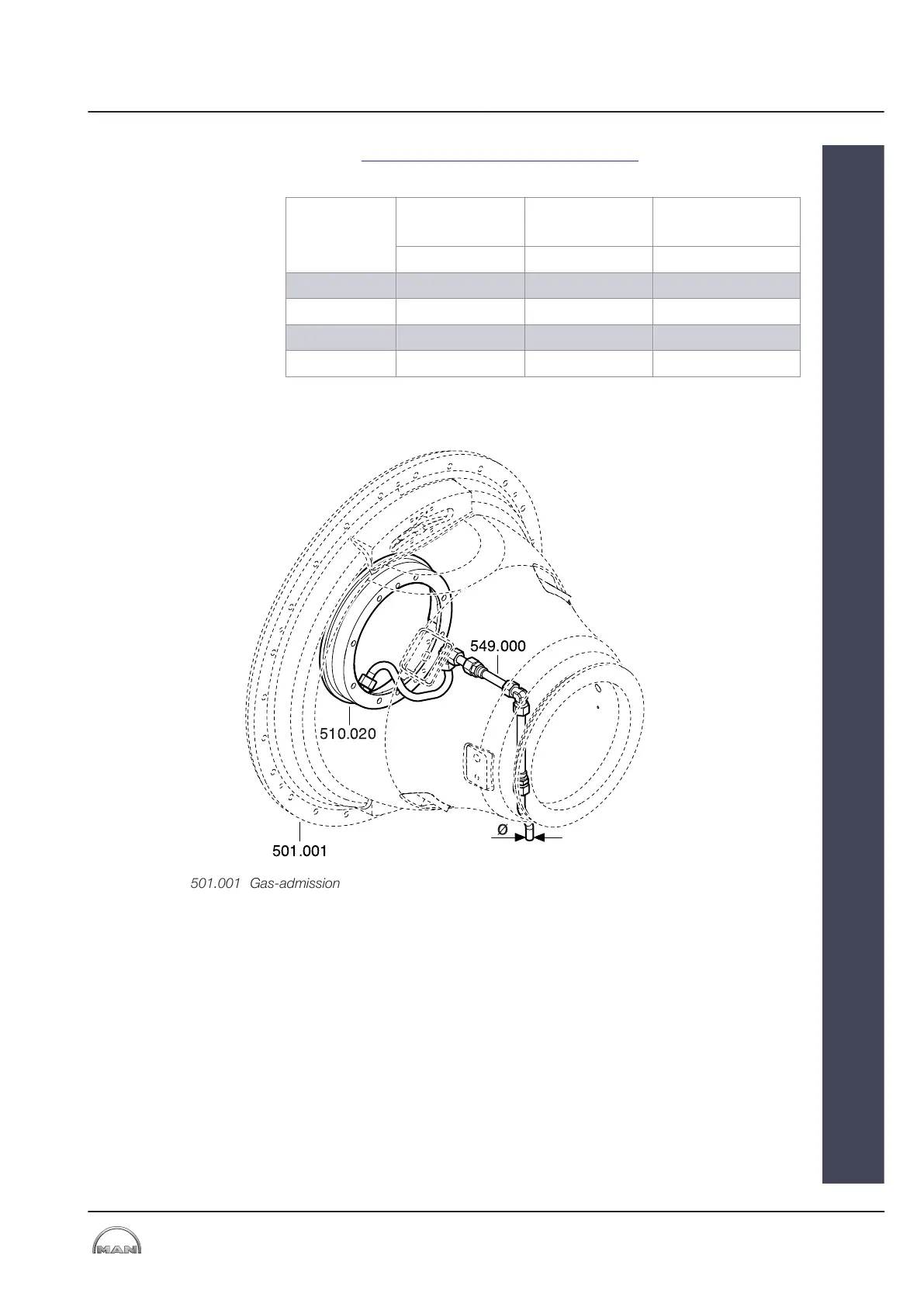

501.001 Gas-admission casing
510.020 Holding ring
549.000 Inflation air pipe, compl.
Figure 15: VTA inflation air pipe on the TCA Turbocharger
2013-12-04 - de
4 Systems
4.3 Inflation Air
MAN Diesel & Turbo
4
EN-US
23 (38)
