Manaras Opera MGT - Page 17

17
STATION031 AIRSWITCH007
Open
Close
Stop
Red
Yellow
8
7
NO NC
NO NC
NO NC
9
Adjustment
3
5 6
KEYSWITCH019
6 7 8
9
KEYSWITCH015
Jumper must
be removed if
a station with
a stop button
is also
connected
6
7
8
9
Route the power
line wires either
from right of the
control box.
Route all low
voltage control
wires as shown.
Keep low voltage
wires separate
from line voltage
wires.

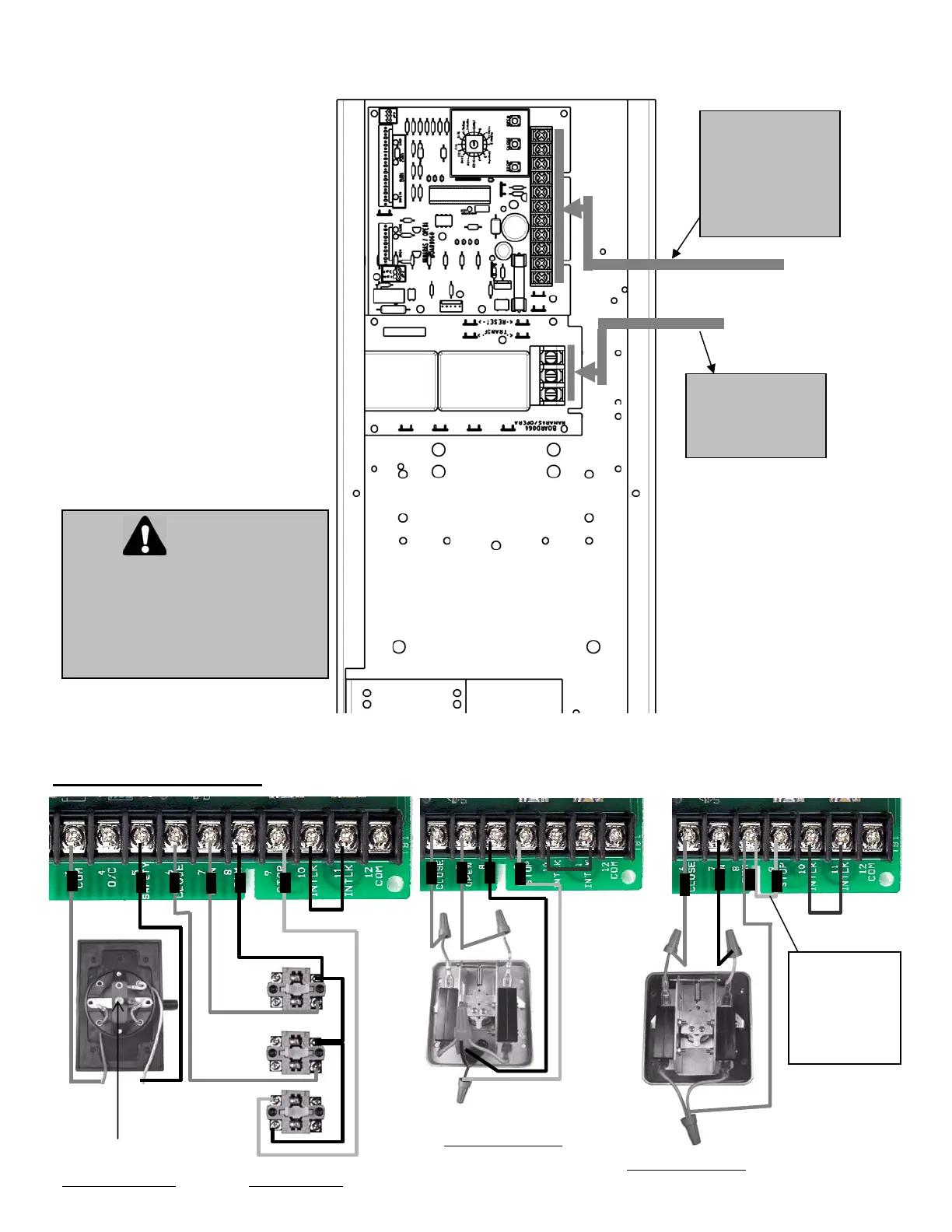

LOW VOLTAGE (controls) AND HIGH VOLTAGE (power) WIRINGS.
Accessory Wiring
WARNING
• Wall control(s) must be located so
that the door is within sight of the
user.
• If momentary contact (B2 mode) is
used, an external
reversing device
must be install.
