25
11.2 On Site Modifications
Option Operations
Constant Pressure to Open 1. Move GREY wire from terminal #3 → #4.
Wiring for Instant Stop
(on safety edge or device)
1. Remove YELLOW wire from Adv. Open Limit Switch and cap it.
2. Remove BLUE wire from pin #4 on the Reversing Relay (RR) and cap it.
Adding a Time Delay on Reverse
(refer to Figure 41 below)
1. Remove YELLOW wire from Adv. Open Limit Switch.
2. Connect the YELLOW wire to one end of the Time Delay Module.
3. From the other end of the Time Delay Module, reconnect YELLOW wire
to the Adv. Open Limit Switch.
Constant Pressure to Open and
Close – D1 Mode
1. B2 Mode → C2 Mode:
◦ Move RED wire from terminal #7 → #5.
2. Constant Pressure to Open:
◦ Move GREY wire from terminal #3 → #4.
3. Wiring for Instant Stop:
◦ Remove YELLOW wire from Adv. Open Limit Switch and cap it.
◦ Remove BLUE wire from pin #4 on Reversing Relay (RR) and
cap it.
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information

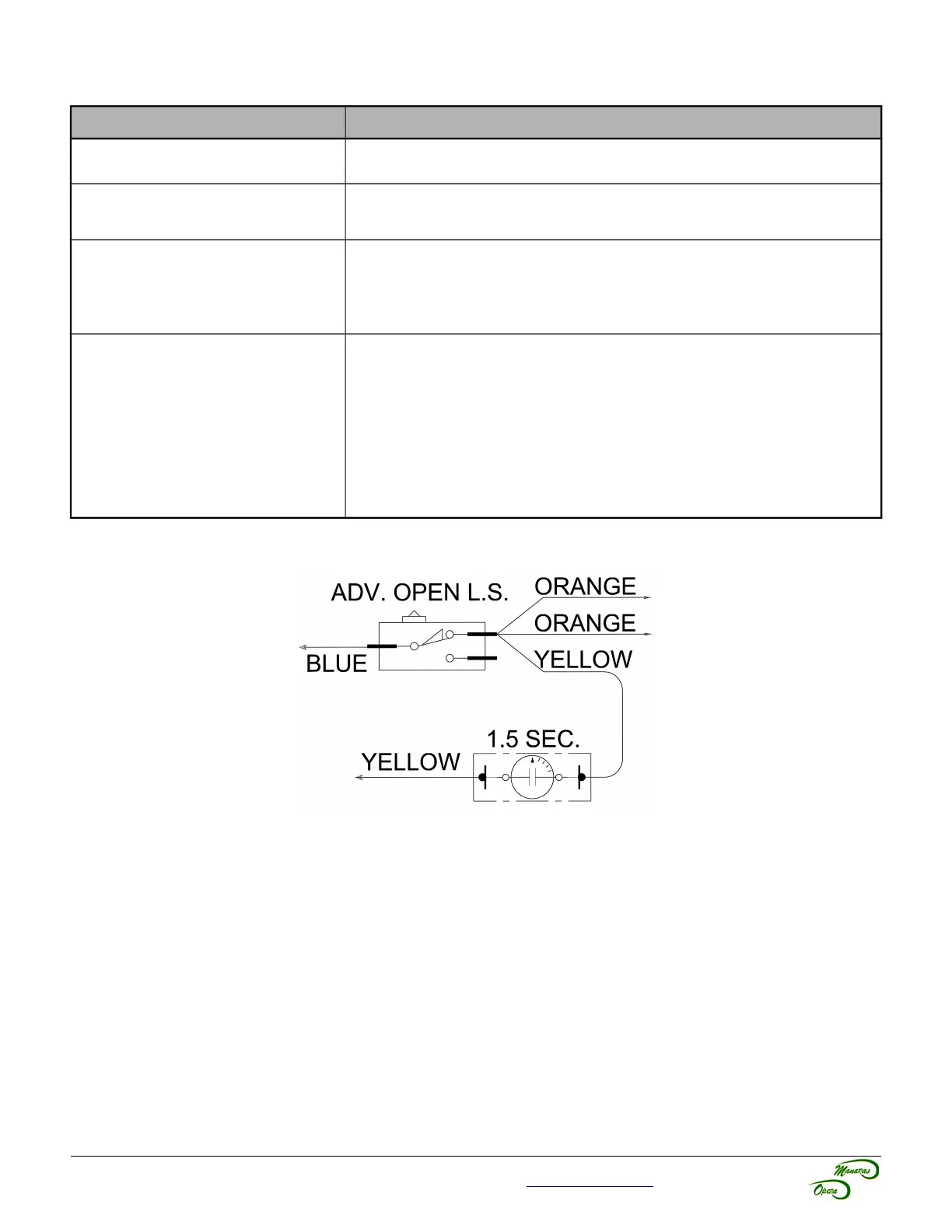

Figure 41 - Time Delay on Reverse
