4.5 Opera-SH
Table 17 - Opera-SH Replacement Components
No Qty Description
Manaras-Opera
Part #
No Qty Description
Manaras-Opera
Part #
1
2 1" ID 2-BOLT FLANGE BEARING BEARING012
7
1 MANUAL HOIST COUPLING COUPLING019
2
2 5/8-18 HEX JAM NUT ZP NUT013
8
1 OPERA CLUTCHPLATE CLUTCHPLATE006
3
1 CHAIN GUIDE OPERA GUIDE014
9
1 OPERA POCKETWHEEL POCKETWHEEL005
4
1 CL.PAD 5/8x4x0.125" CLUTCHPAD005
10
1 PULLEY 7" x 5/8" 5L/B PULLEY020
5
1 COMP. SPRING DISC. OSH SPRING043
11
1
SNAP-ACT. SW.SPDT-LEVER
"END BEND"
LIMIT025B
6
2 FLANGE PILLOW BLOCK 0,75 BEARING044
1 CLUTCH & HOIST SHAFT KIT MOUNTSHAFT016
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information

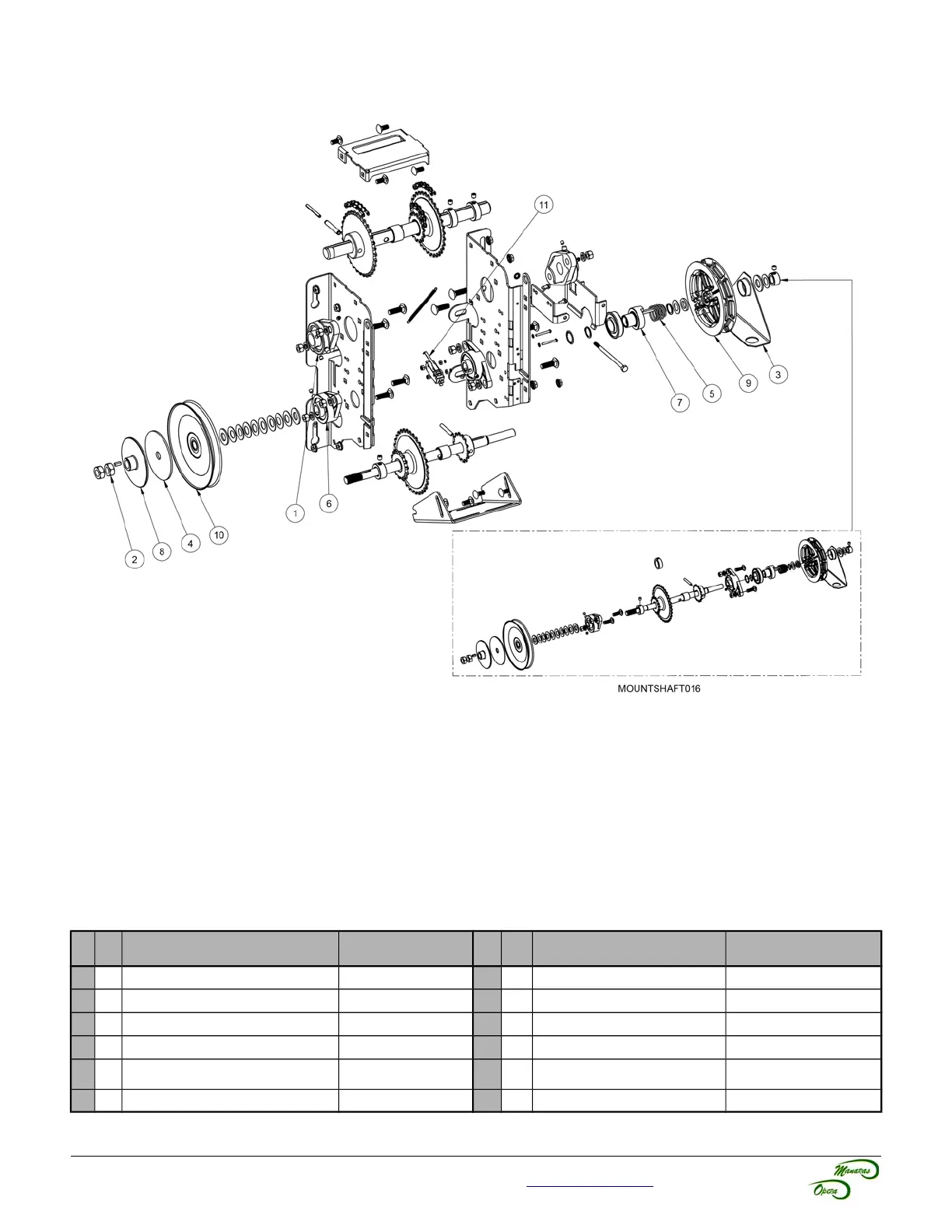

Figure 49 - Opera-SH Mechanical Exploded View
