37
4 Mechanical Exploded Views and Replacement Components
4.1 Opera Heavy-Duty Jackshaft General View
Table 13 - Opera General Replacement Components
No Qty Description
Manaras-Opera
Part #
No Qty Description
Manaras-Opera
Part #
1 1 MOTOR SEE Table 20 5 1 OPERA CONTROL BOX COVER COVER047
2 1 MOTOR PULLEY 2.0 x 5/8 5L PULLEY014 1 OPERA LIMIT SHAFT KIT MOUNTSHAFT018
3 1 TYPE B, INSIDE LENGTH 29 VBELTB29 1 BRAKE ASSEMBLY KIT (#101-103) BRAKE013
4 1 SUB ASSY FRAME
DEPENDING ON
MODEL, SEE TABLES
ON P.38, 39, 40, 41
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information

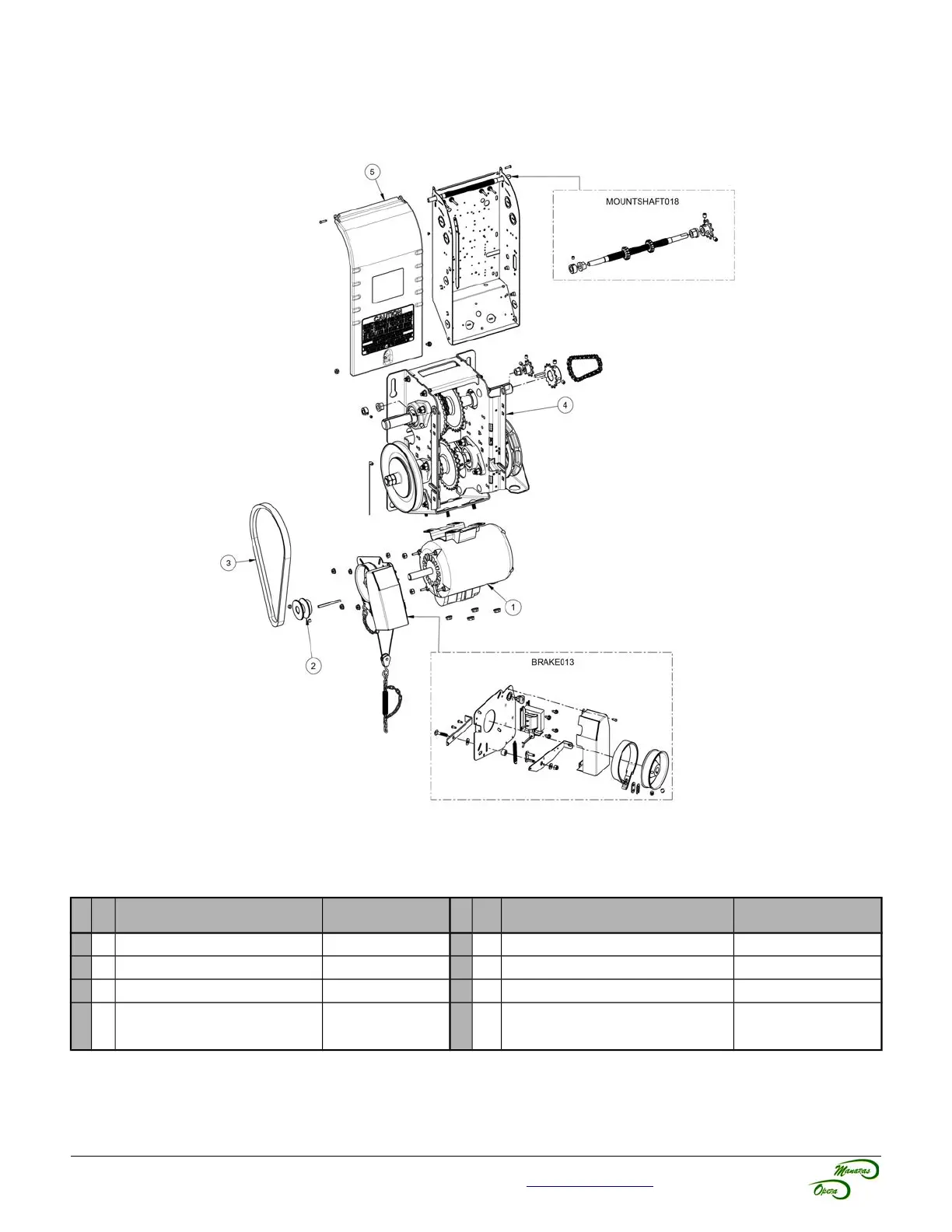

Figure 45 - Opera General Mechanical Exploded View
