Manhattan 179195 User Manual

15

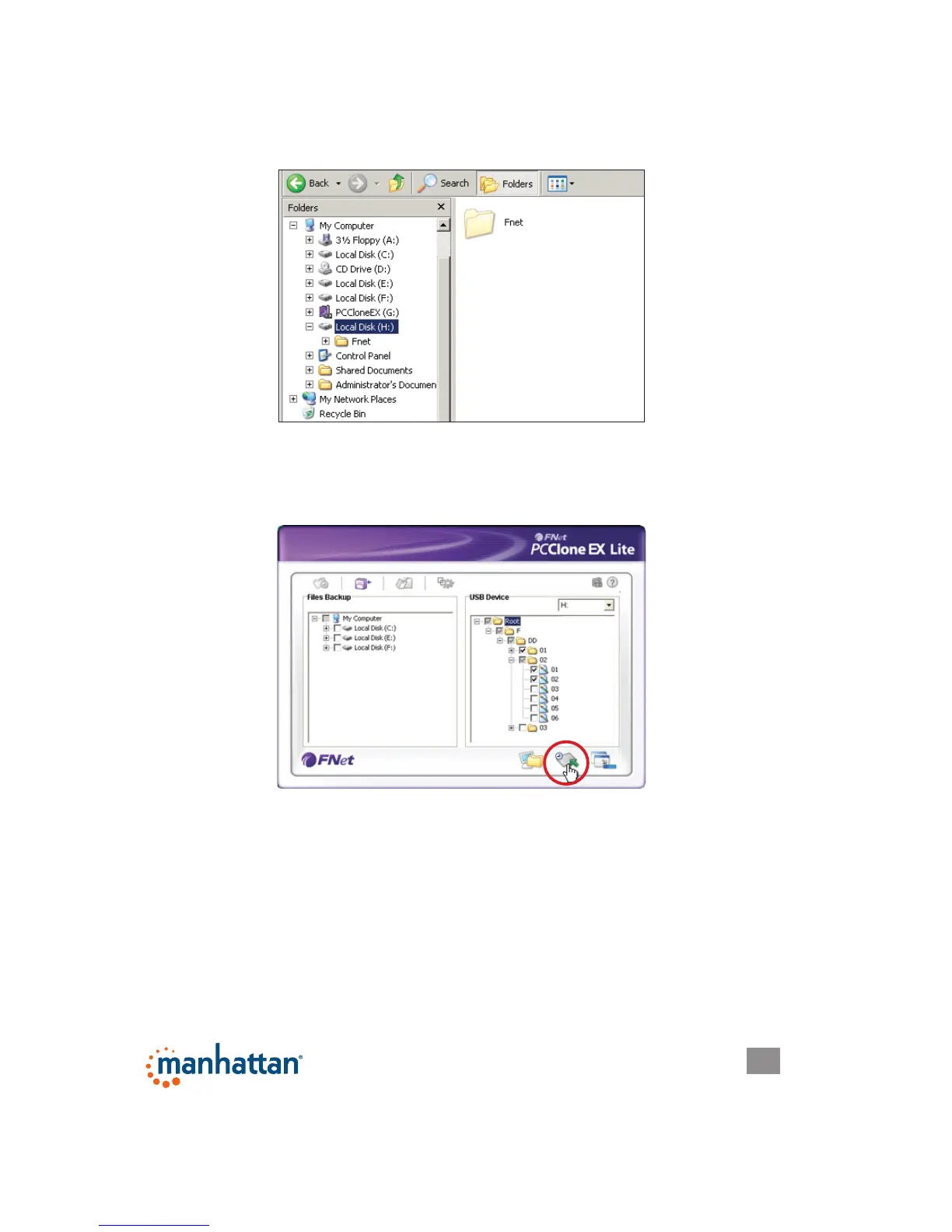

IMPORTANT: A root directory (FNet) folder will display in the USB Device window.
This is where all the backed-up les are stored, so be careful not to delete it
unintentionally.
Restoring Files
1. In the event you need to copy les from the backup drive to the original source
device (to replace lost or damaged originals, for example), select the items in
the right-hand (USB Device) window and click the Restore icon (2).

Manhattan 179195 Specifications

Power

input voltage	100 – 240 V AC
frequency	50/60 Hz
output	12 V / 2 A

Ports & Interfaces

usb ports	USB 2.0 Standard-A male
sata ports	SATA L-type male
ide ports	IDE 40-pin; IDE 44-pin

Weight and Dimensions

dimensions	9.8 x 7 x 1.8 cm
cable lengths	USB, 80 cm; 4-pin power, 10 cm
weight	270 g
