A9 - Fuel filter
DRAIN
- Correct maintenance of the fuel filter is essential for the engine to operate correctly.
- Failure to comply with this check can affect engine performance and damage its components.
Risk of explosion and danger of fire. Fuels are combustible. Perform this
procedure in a well-ventilated place far from any heat source. Avoid sparks and
flames. Do not smoke nearby. Have a fire extinguisher in hand’s reach.
- Visually check for the presence of water in the fuel filter’s lower casing.
- Drain this away, if necessary.
- Place a receptacle under the tank and loosen the drain plug 5 by two or three turns.
- Let the Diesel flow until there are no contaminants or water in it.
- Retighten the drain plug while the Diesel is still flowing.
A10 - Pre-operation inspection
CHECK
- Before each work shift, inspect the machine and check the absence of any crack weld, corrosion and structural damages, lossened or
missing nuts, bolts or other fasteners, hydraulic leaks, damage electrical cables and loosened electrical connection.damaged cable of
command and loosened electrical connection.
- Check the absence of any damage in the lanyard anchorage points.
A11 - Function tests
CHECK
All lifting platforms failures have to be dectected before switching on the machine. Identify et remove the platform from
service in the event of any failures detected.
1- Select a test area that is firm, level and free of obstruction.
AT THE GROUND CONTROLS
2- Pull out the platform and ground red Emergency
Stop buttons to the on position.
3- Turn the key switch to ground control.
> Result: The LCD screen will come on and display SYSTEM READY.
Note: In cold climates, the LCD readout screen will need to warm up before the display appears.
4- Start the engine. See Operating Instructions section.
Test Emergency Stop
5- Push in the ground red Emergency Stop button to the off position.
> Result: The engine should turn off and no functions should operate.
6- Pull out the red Emergency Stop button to the on position and restart
the engine.
Test the Up/Down Functions
The audible warnings on this machine and the standard horn all come from the same central alarm. The horn is a constant tone. The
descent alarm sounds at 60 beeps per minute. The alarm that goes off when the machine is not level sounds at 180 beeps per minute.
7- Do not push the lift function enable button. Push and hold the platform up button.
> Result: The platform should not raise.
8- Push and hold the lift function enable button.
Push and hold the platform up button.
> Result: The platform should raise.
9- Push and hold the lift function enable button.
Push and hold the platform down button.
> Result: The platform should lower. The descent alarm should sound while the platform is lowering.
12
3
4
5

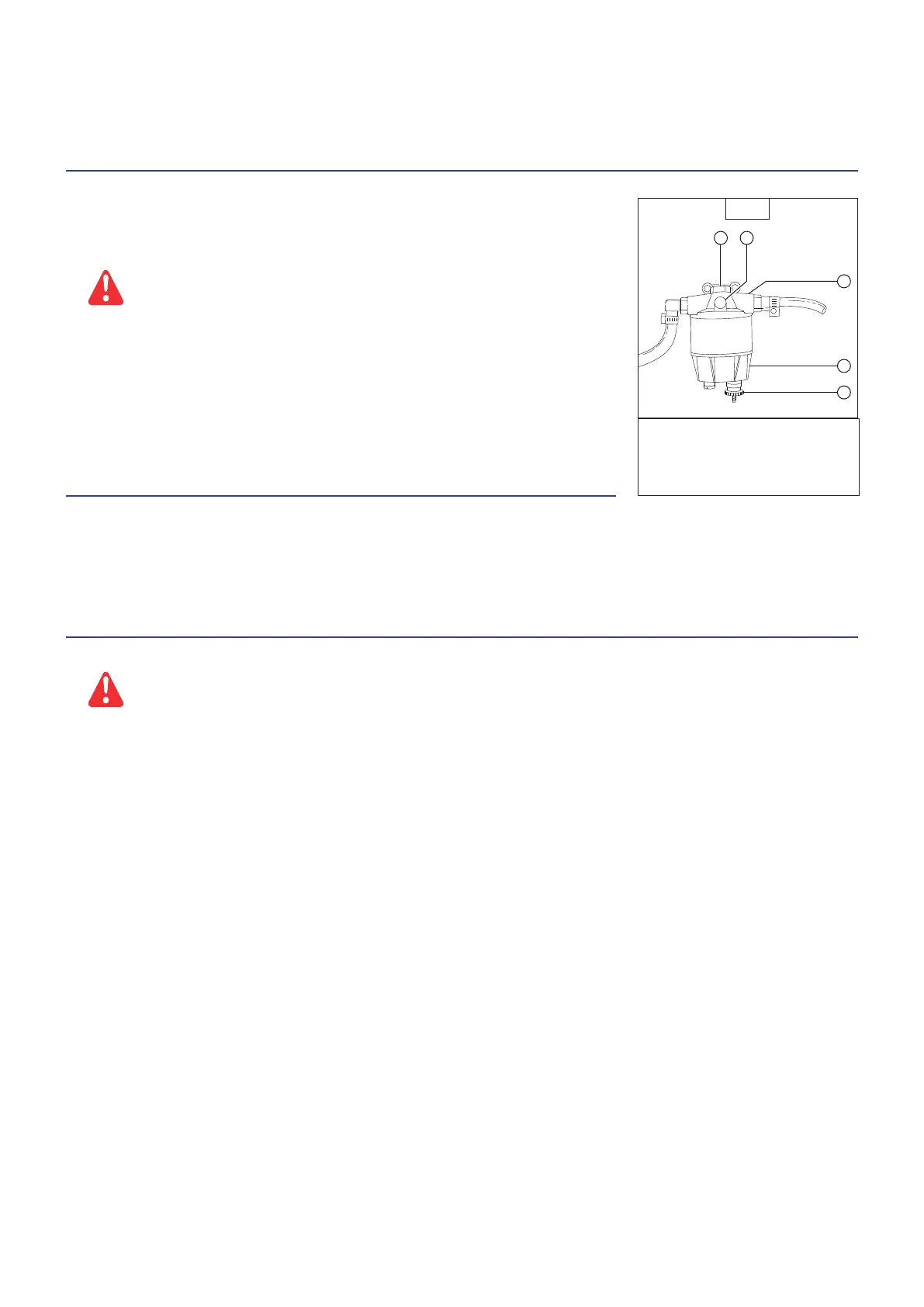

A9
1- Main bolt
2- Discharge point
3- Fuel filter head
4- Filter
5- Drainage point
