Manitou MRT Series - Operational Functions; Stabiliser Deployment; Frame Levelling System

12
Q
S
FOCUS
S1
S2
Q1
Q2

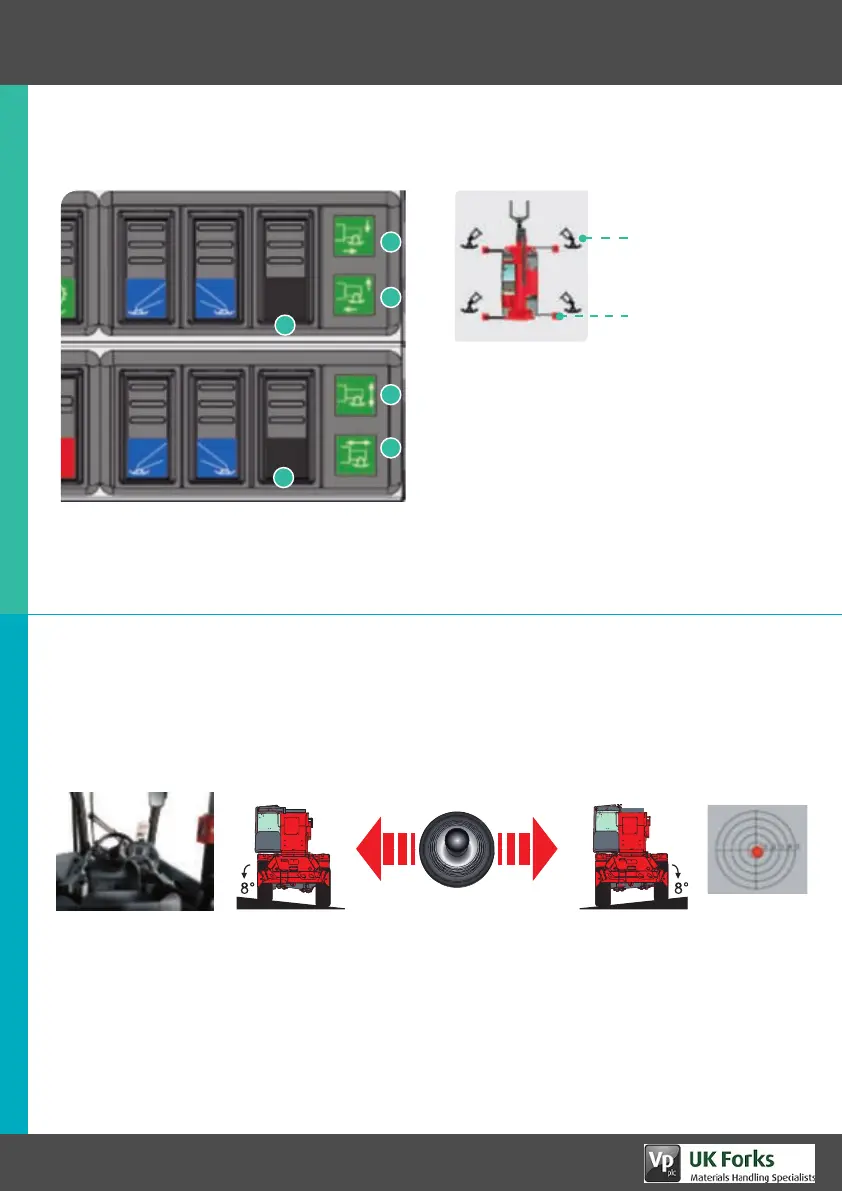

USING THE STABILISERS
FRAME LEVELLING
The lever, located to the right of the display monitor, controls the levelling corrector. To carry out
levellingoperations,pushthelevertothelefttotiltthemachinetotheleft,andpushthelevertothe
right to tilt the machine to the right.
Warning!Thefunctionisenabledonlyif:
 The telescopic boom is retracted
 The boom height is < 3 metres
 The turret is aligned with the chassis
FOCUS
Pads fully on the
ground
Stabiliser fully
deployed
 Select one or several stabilisers
 Using switchS,select S1or S2mode
(raise/lower or extend/retract stabilisers)
 Using switch Q, drive the stabilisers as per
the required mode and movement:
- Q1 : lower / raise stabilisers
- Q 2 : extend /retract stabilisers
