Manitou MRT Series - Cabin Controls and Displays; Cabin Components Identification

7
CABINE
7
6
2
5
4
3
2
2
1
1

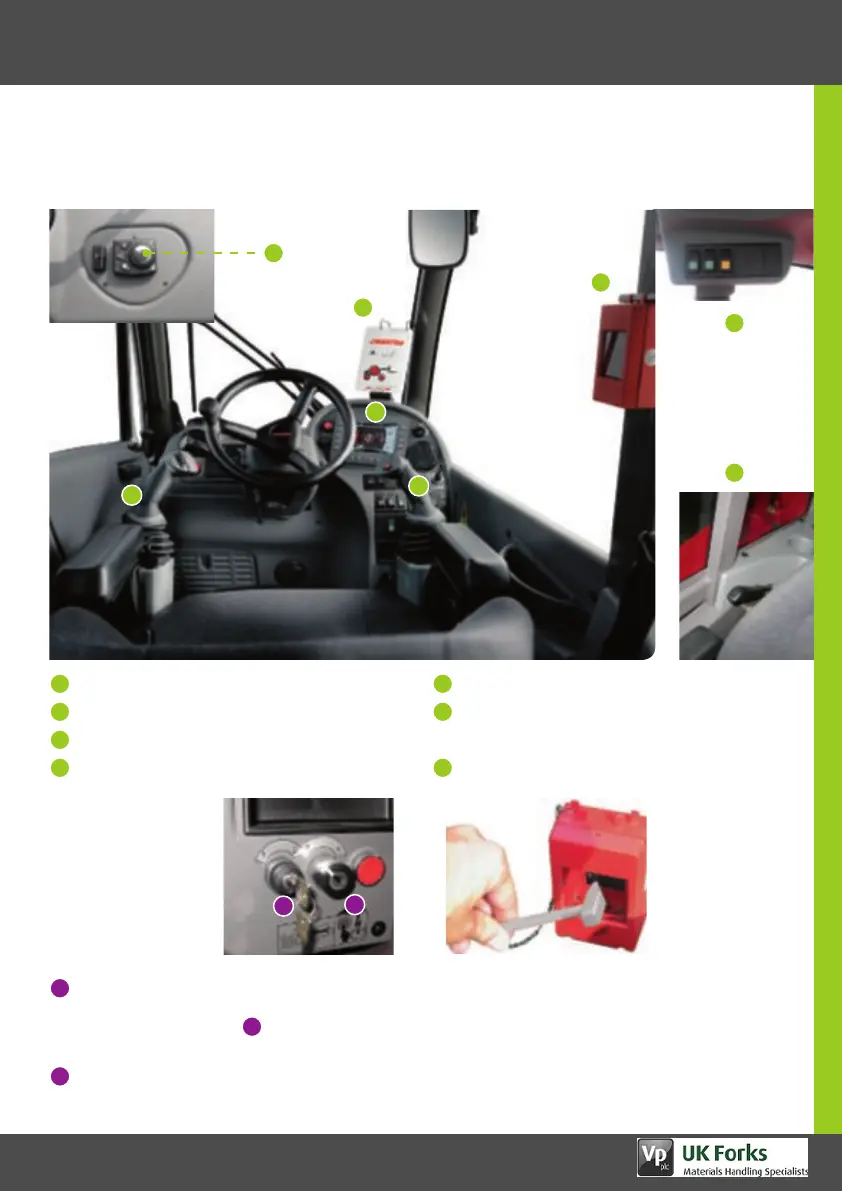

CABIN
1
Dashboard
2
Joysticks
3
Load charts
4
Emergency box
5
Switch panel (overhead right)
6
Turret locking lever: must be on when
transporting the machine or in travel mode
7
Heating and air conditioning*
1
Platform emergency key: it allows another operator, in the event of impairment of the platform
occupant, to start the engine and operate functions from the cabin,
TURN THE KEY AND PRESS
THE RED BUTTON (
1
) AT THE SAME TIME (the key is in the emergency box located on
the cabin’s right pillar, next to the seat; break the glass using the hammer provided).
2
LMI shunt key: to deactivate the safety, the operator must turn / press and hold the key.
FOCUS
*according option
