B13 - STABILIZERS
GREASE
Clean and lubricate the following points with grease (see: 3 - MAINTENANCE: LUBRICANTS
AND FUEL) and remove the surplus of grease.

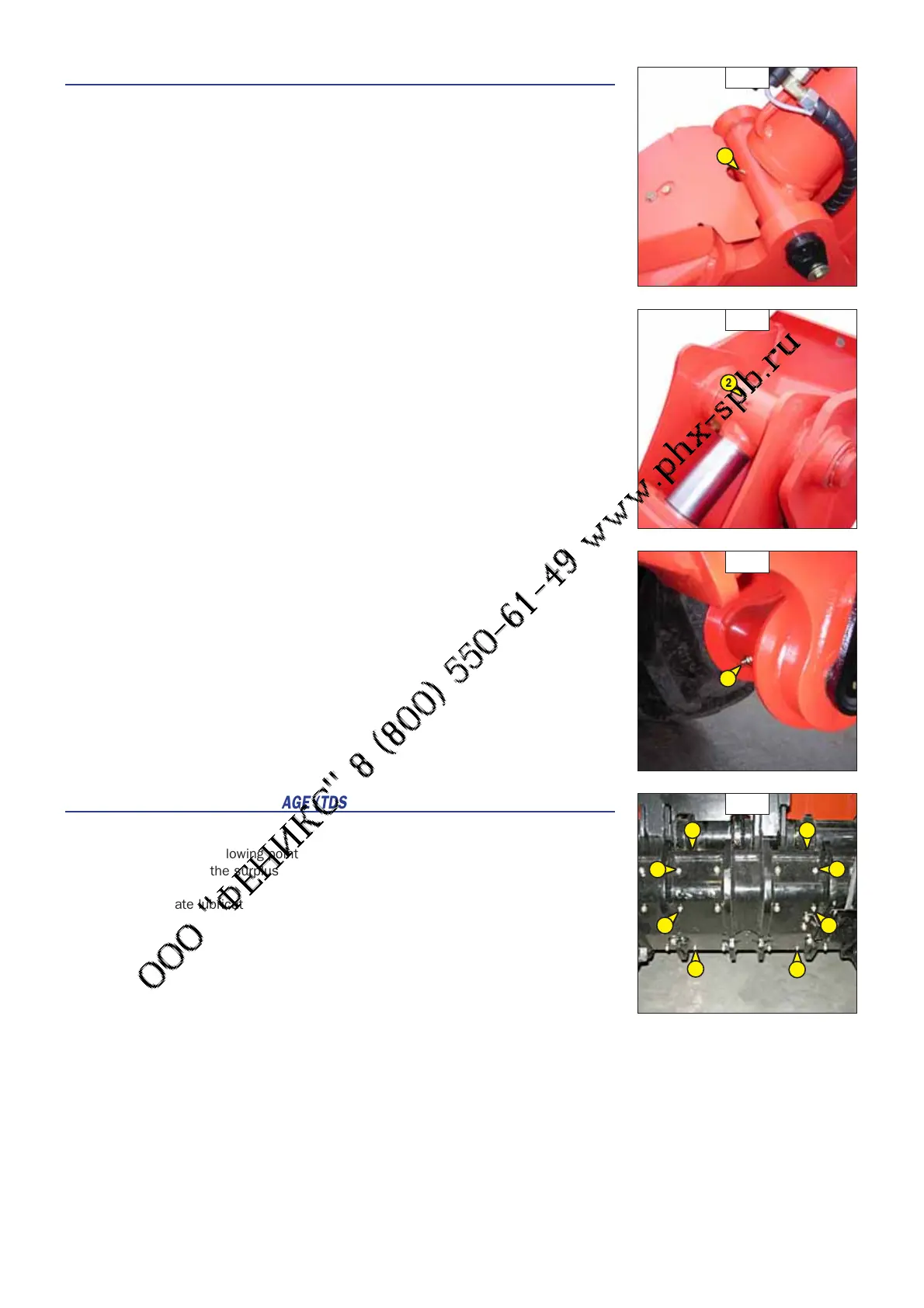

1 - Lubricators of the stabilizers cylinders foot axle (2 lubricators) (fig. B13/1).
2 - Lubricators of the stabilizers cylinders head axle (2 lubricators) (fig. B13/2).
3 - Lubricators of the stabilizers axles (2 lubricators) (fig. B13/3).
B14 - SINGLE SIDE-SHIFT CARRIAGE (TDSL) (OPTION)
GREASE
Clean and lubricate the following points with grease (see: 3 - MAINTENANCE: LUBRICANTS
AND FUEL) and remove the surplus of grease.
1 - Wear plate lubricators (8 lubricators) (fig. B14).
B13/1
1
B13/2
2
B13/3
3
B14
1
1
1
1
1
1
11
