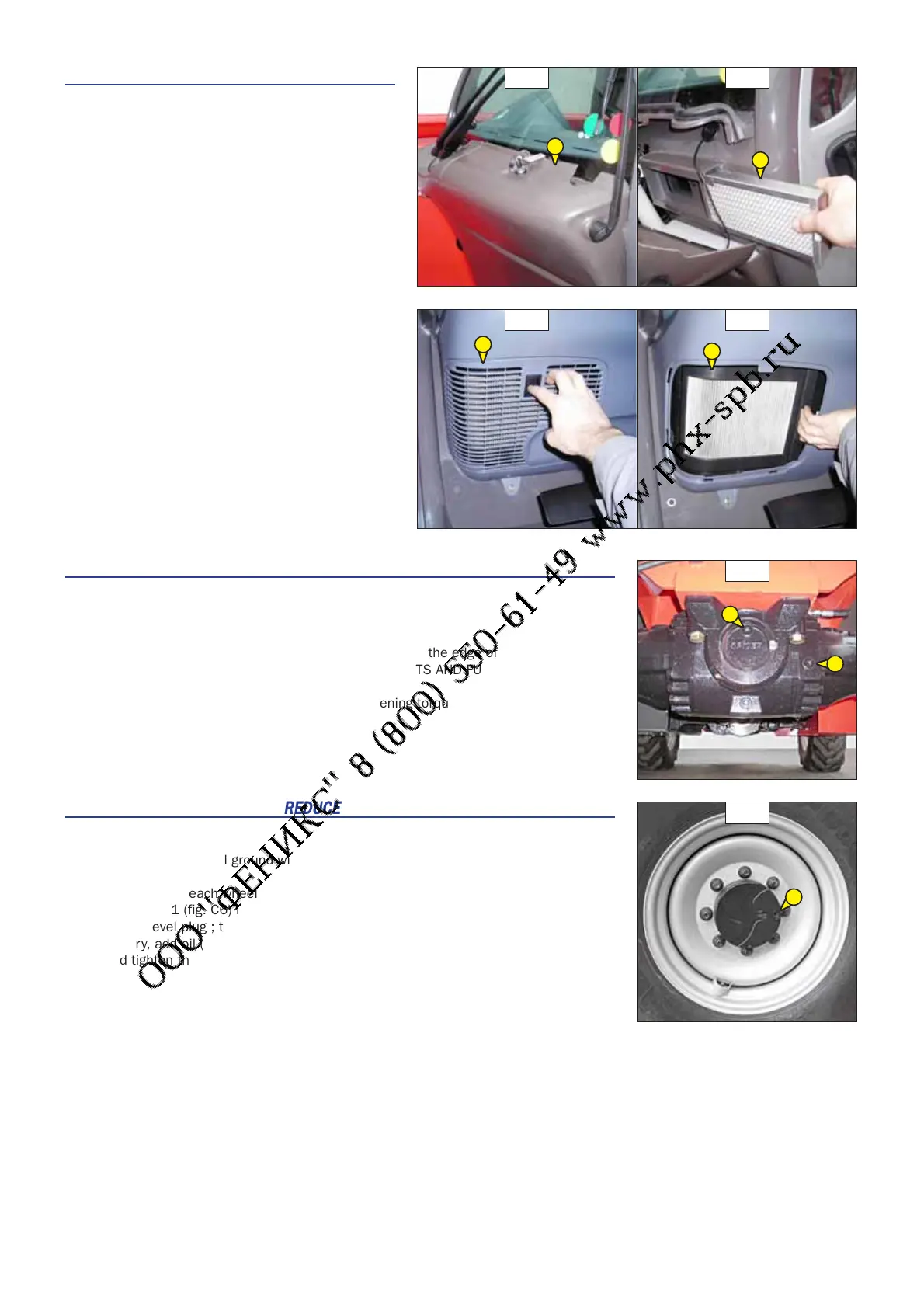

C4 - CAB VENTILATION FILTERS
CHANGE
EXTERNAL CAB VENTILATION FILTER
- Remove protective casing 1 (fig. C4/1) using the switch
key.
- Lift out cab ventilation filter 2 (fig. C4/2) and replace
it with a new one (see: 3 - MAINTENANCE: FILTERS
AND BELTS).
- Refit the protective casing.
INTERNAL CAB VENTILATION FILTER
- Lift up protective casing 3 (fig. C4/3).
- Lift out cab ventilation filter 4 (fig. C4/4) and replace
it with a new one (see: 3 - MAINTENANCE: FILTERS
AND BELTS).
- Put the protective grid back into place.
C5 - FRONT AND REAR AXLE DIFFERENTIAL OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Remove level plug 1 (fig. C5). The oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the filler port 2
(fig. C5).
- Replace and tighten the level plug 1 (fig. C5) (tightening torque 34 to 49 N.m).
C6 - FRONT AND REAR WHEELS REDUCERS OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Check the level on each wheel reducer.
- Place level plug 1 (fig. C6) in the horizontal position.
- Remove the level plug ; the oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same hole.
- Refit and tighten the level plug (tightening torque 34 to 49 N.m).
C4/1
1
C4/2
2
C4/3
3
C4/4
4
C5
1
2
C6
1
