2-32

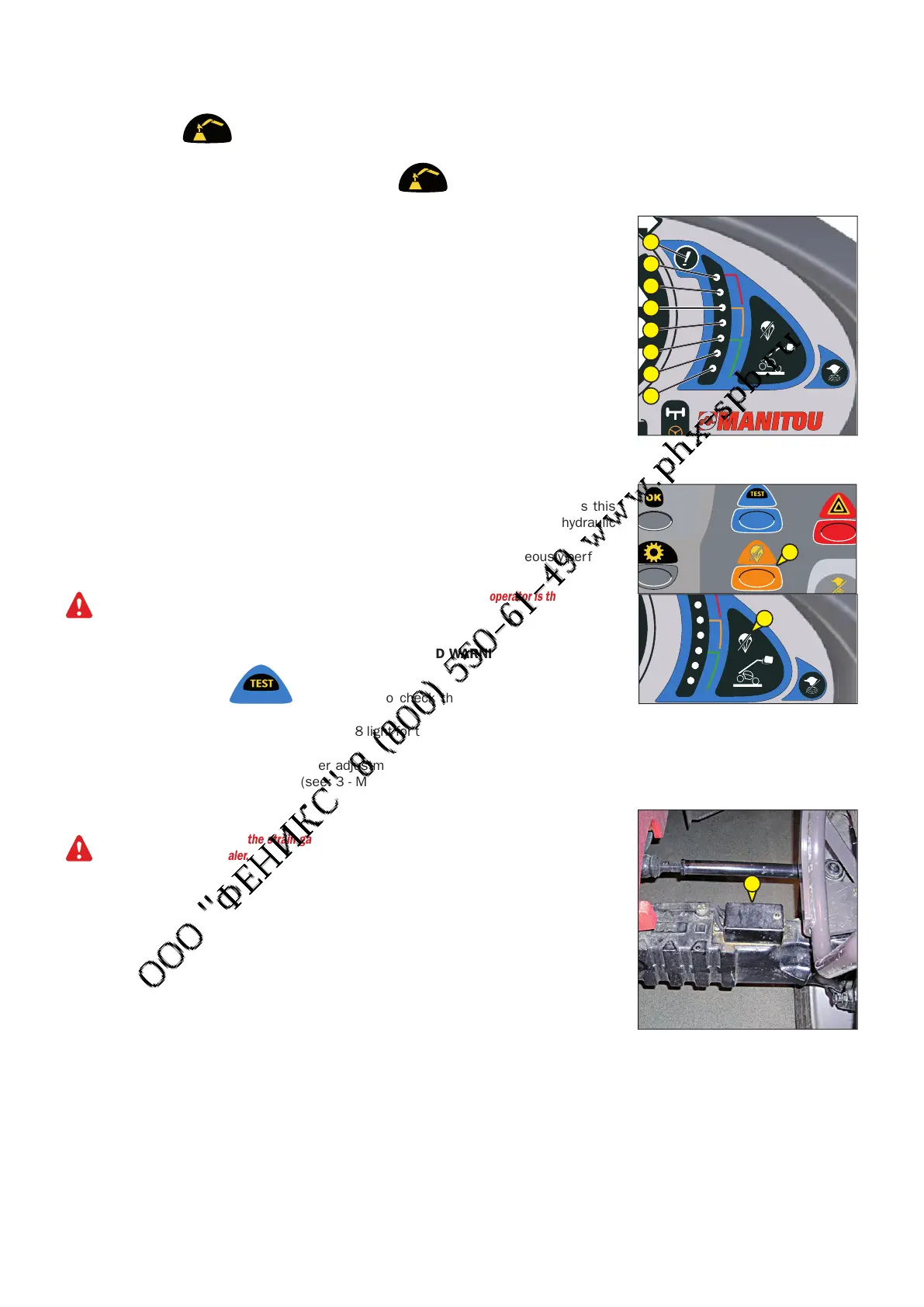

C - “SUSPENDED LOAD” MODE
Giving a higher safey margin, use with crane jib (P, PT, PO), winch and lifting ring.
- Place the lift truck in the transport position.
- Press the button for 2 seconds , “SUSPENDED LOAD” MODE is validated by an audible beep and the lighting of the
lamp.
- Return to “HANDLING” MODE by pressing the button .
A1 - A2 - A3: There is a significant reserve of longitudinal stability.
A4 - A5: The lift truck is approaching the limit of longitudinal stability. The alarm
sounds simultaneously with a very slow intermittent sound. Move with
care.
A6: The lift truck is near at the limit of longitudinal stability. The alarm sounds is in
slow intermittent sound. Move with care.
A7: The lift truck is very near at the limit of longitudinal stability. The alarm sounds
is in fast intermittent sound. Move with extreme care.
A8: The lift truck is at the authorized limit of longitudinal stability. The alarm sounds
is in very fast intermittent sound. All “AGGRAVATING” hydraulic movements are
cut-off. Cut-off may be preceded by automatic slowing of hydraulic movements.
Only perform hydraulic movements that increase stability in the following order;
retract and raise the jib.
NOTE: When the jib is retracted, the function for cutting-off “AGGRAVATING” hydraulic
movements is disconnected.
D - DISABLING “AGGRAVATING” HYDRAULIC MOVEMENT CUT-OFF
In certain cases, in order to get out of a difficult situation, the operator can bypass this
safety system. Button D temporarily disables the cutting-off of “AGGRAVATING” hydraulic
movements.
- Hold down button D, lamp D1 will light (60 second time delay), and simultaneously perform
the necessary ”AGGRAVATING” hydraulic movement with extreme care.
Remain very vigilant during this operation. The only information available to the operator is the lift truck’s
dynamic stability.
E - TESTING OF THE LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE
- Short press the button at any time to check the correct operation of the
longitudinal stability warning device.
• Correct operation: All the LEDs A1 to A8 light for two seconds and an audible beep
is sounded.
NOTE: This test does not check the proper adjustment of the longitudinal stability limiter device that must be inspected daily or
after every 10 hours of service (see: 3 - MAINTENANCE: A - DAILY OR EVERY 10 HOURS SERVICE).
F - STRAIN GAUGE
Disassembly or adjustment of the strain gauge is prohibited, this must only be done by specially trained
personnel, consult your dealer.
F
A8
A7
A6
A5
A4
A3
A2
A1
D
D1
