Manitou MT 1840 R PRIVILEGE User Manual

2-36
16 - FUNCTION FILES
These files contain the description of the hydraulic controls and the load charts for the attachments used on the lift truck.
17 - HYDRAULIC CONTROLS
Authorisation for using the hydraulic controls is given by the validation of the driver’s presence (see: 2 - DESCRIPTION: 6 - MAN-
MACHINE INTERFACE (MMI)) and if the conditions for using the hydraulic control are followed.
Do not attempt to alter the hydraulic system pressure by interfering with the pressure regulating valve. In the event of suspected malfunction, contact
your dealer. ANY ALTERATION MAY RENDER THE WARRANTY NULL AND VOID.
Use the hydraulic controls carefully without jerking, to avoid accidents caused by shaking the lift truck.

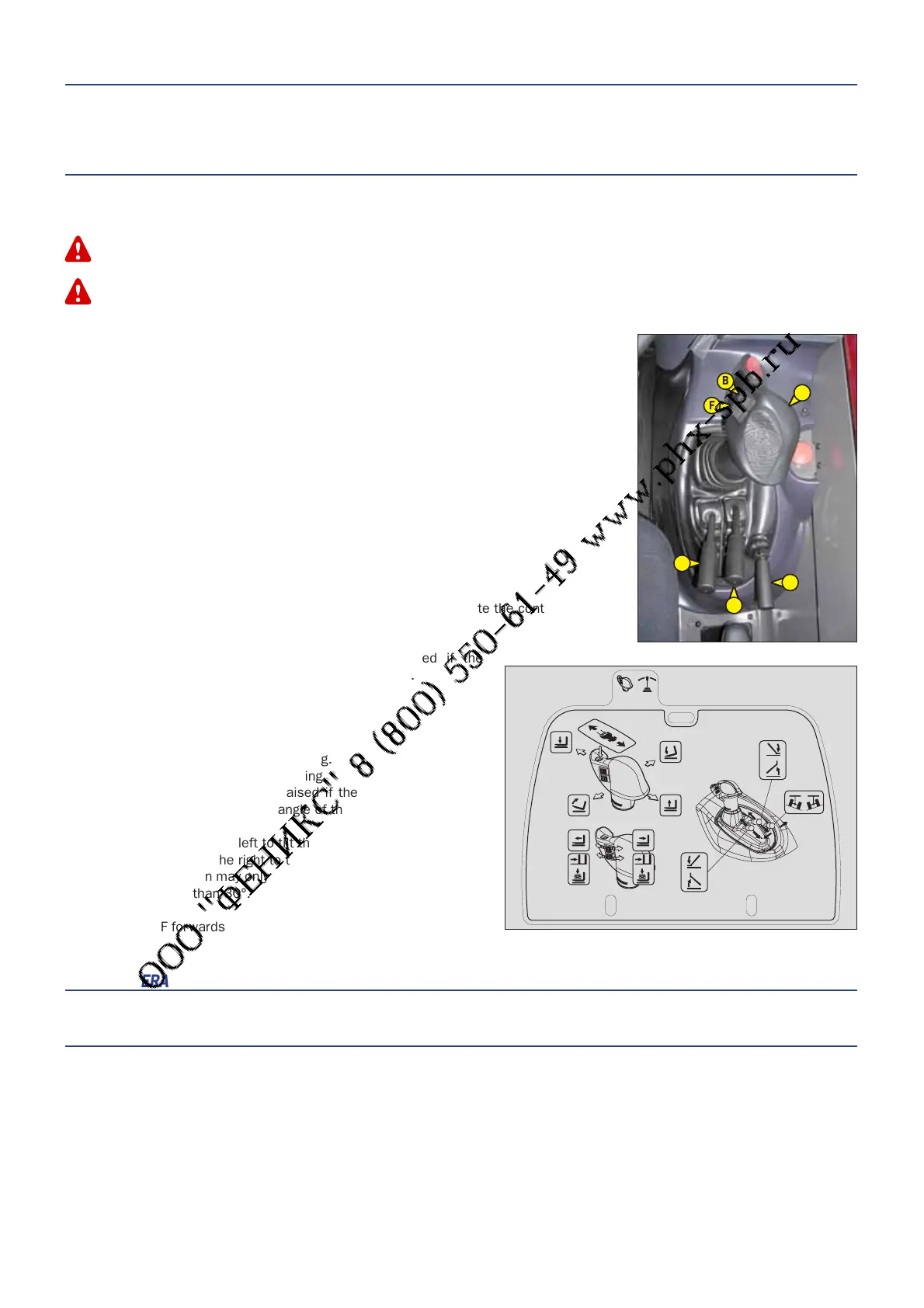

A - Lifting and tilting control lever.
B - Telescoping control button.
C - Left stabilizer control lever.
D - Right stabilizer control lever.
E - Tilting corrector control lever.
F - Attachment control button.
LIFTING THE LOAD
- The lever A backwards when lifting.
- The lever A forwards when lowering.
TILT OF CARRIAGE
- The lever A to the left for reverse tilt.
- The lever A to the right for forward tilt.
TELESCOPING
- Button B forwards for extending.
- Button B backwards for retracting.
NOTE: When completely retracting the telescopes, insistently operate the control so as to
allow all the telescopes to retract fully.
MT 1840 R PRIVILEGE
NOTE: The last telescope section can only be extended if the
stabilisers are lowered and bearing on the ground.
L.H. STABILIZER
- Move lever C forwards to lower.
- Move lever C backwards for lifting.
R.H. STABILIZER
- Move lever D forwards for lowering.
- Move lever D backwards for lifting.
NOTE: The stabilisers can only be raised if the telescopic sections
are retracted and the lifting angle of the jib is less than 62°.
TILTING CORRECTOR
- Move lever E to the left to tilt the lift truck to the left.
- Move lever E to the right to tilt the lift truck to the right.
NOTE: The tilt correction may only be performed if the lifting angle for
the jib is less than 30°.
ATTACHMENT
- Button F forwards or backwards.
18 - ACCELERATOR PEDAL
19 - SERVICE BRAKE PEDAL
The pedal acts on the front and rear wheels by a power assisted hydraulic brake system, and allows the lift truck to be slowed
down and stopped.
N°261391
A
B
F
E
C
D
