2-38

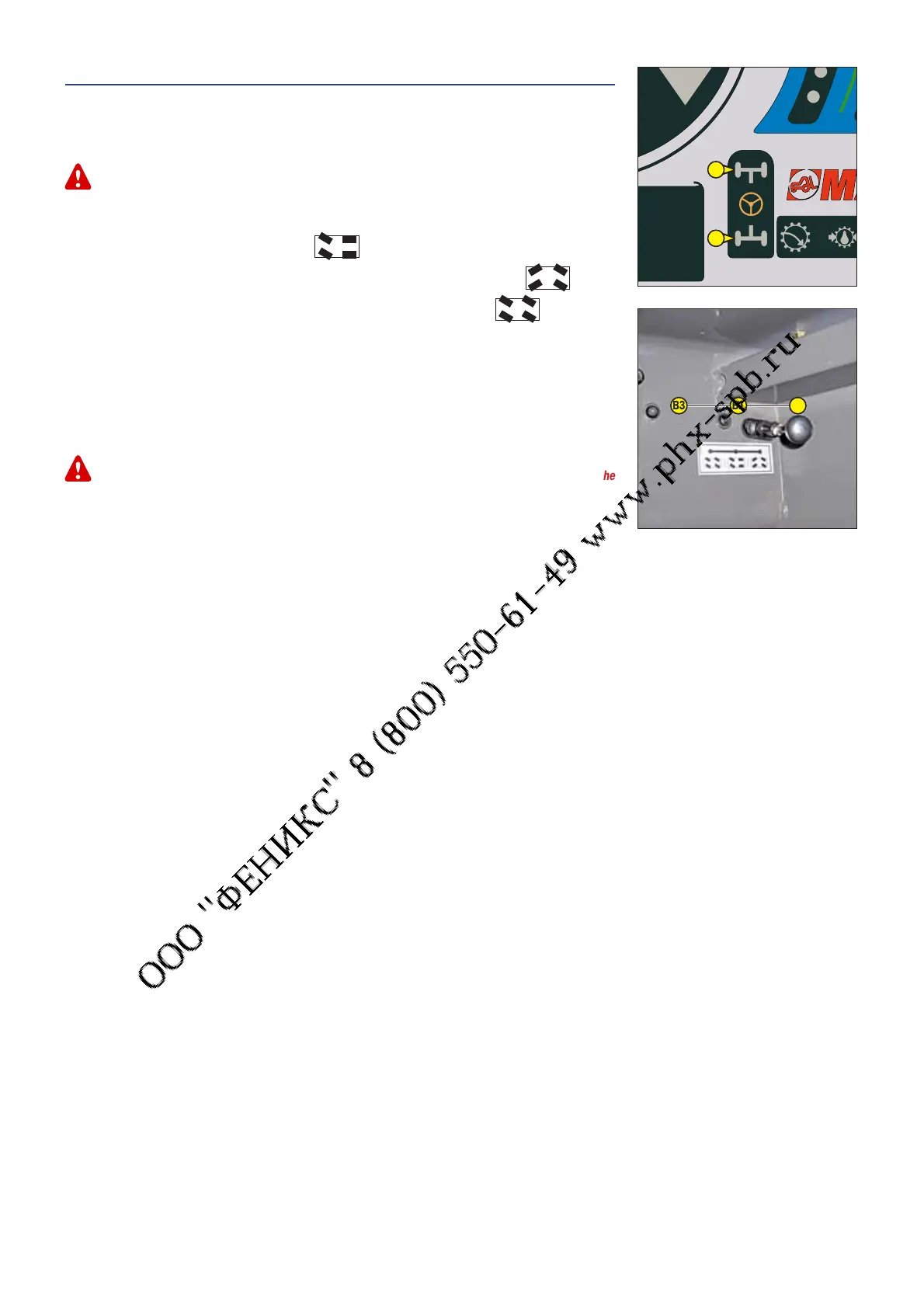

22 - STEERING SELECTION
A - GREEN WHEEL ALIGNMENT LAMPS
These lamps come on to indicate the alignment of the wheels in relation to the lift truck.
Lamp A1 for the front wheels and lamp A2 for the rear wheels.
Before selecting one of the three possible steering positions, bring all 4 wheels into alignment with
regards to the lift truck axle. Never change the steering mode whilst driving.
B - STEERING SELECTION LEVER
B1 - Front drive wheels (highway traffic).
B2 - Front and rear drive wheels in opposite direction (short steering lock).
B3 - Front and rear drive wheels in the same direction (crab steering).
CONTROL FOR ALIGNMENT OF THE WHEELS.
- Shift the steering selection lever B into position B2 (short steering lock).
- Turn the steering wheel and bring the rear wheels into alignment until lamp A2 lights up.
- Shift the steering selection lever B into position B1 (highway traffic).
- Turn the steering wheel and bring the front wheels into alignment until lamp A1 lights
up.
Before driving on roads, it is necessary to check the alignment of the rear wheels and to drive in front
wheel steer. The control of the alignment of the rear wheels must be regularly done with the help of the
green lamps, while driving the lift truck. In case of anomalies, consult your dealer.
B3 B1 B2
A1
A2
