2-45

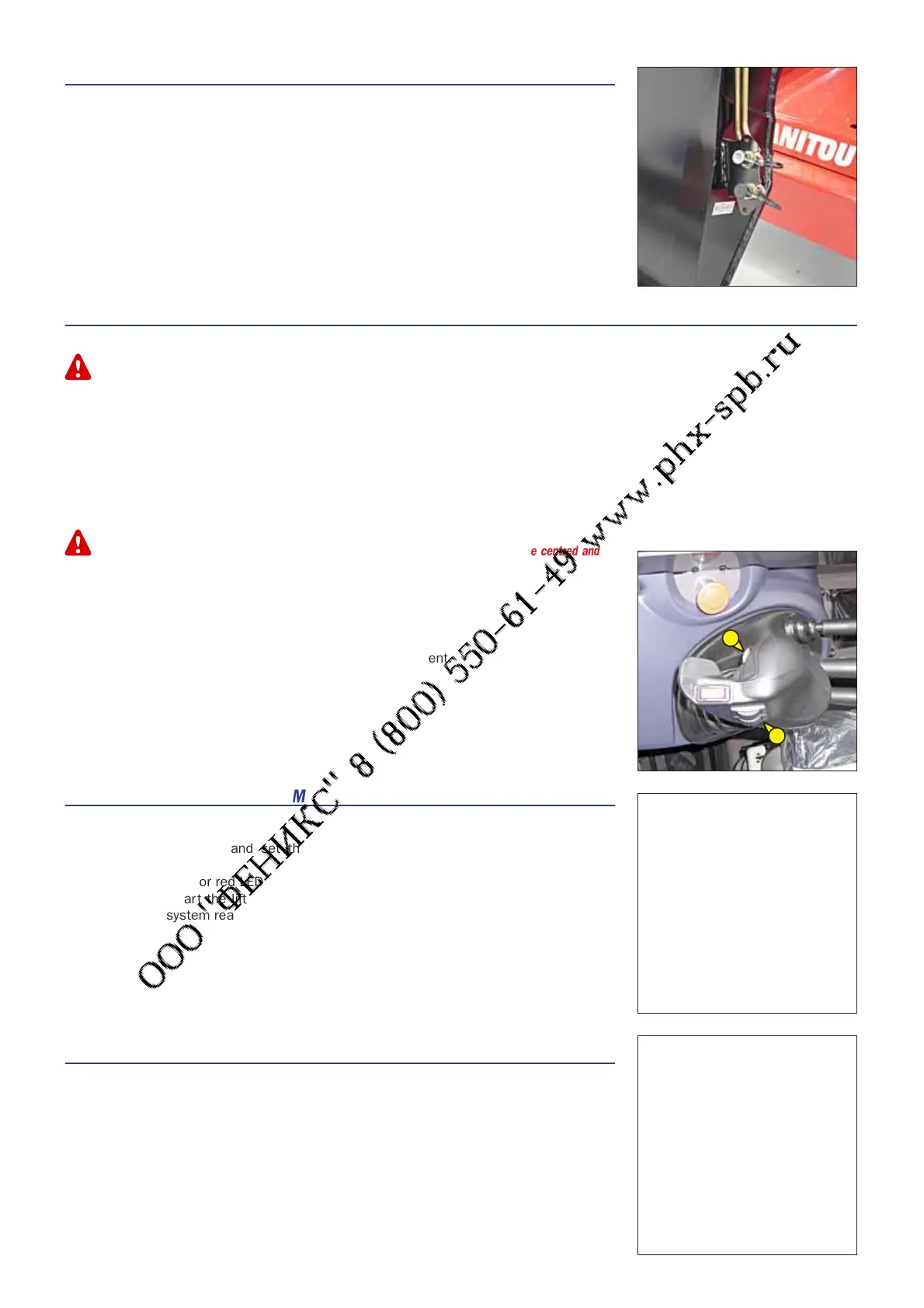

4 - QUICK-RELEASE COUPLER ON ATTACHMENT CIRCUIT
5 - SINGLE SIDE-SHIFT CARRIAGE (TSDL)
The single side-shift carriage (TSDL) is only compatible with the following attachments:
• floating fork carriage (TFF)
• tilting fork carriage (PFB)
• loading bucket (CBR)
• concrete bucket (BB, BBG)
• spout bucket (GL)
• crane jib and crane jib with winch (P, PT, PO, PC)
• winch (H)
• fixed platform, swivelling platform, roofer’s platform
It is prohibited to use any other attachments on the TSDL.
If it is being used with a loading bucket (CBR), the single side-shift carriage MUST be centred and no
side-shift operations performed.
WITH JIB HEAD ELECTROVALVE
- Button 1 controls the single side-shift carriage.
- With button 2 held down, button 1 will control the attachment.
6 - FINTRONIC ANTI-START SYSTEM
OPERATION
- Switch on the lift truck and set the black key A next to the antenna B (maximum
80 mm).
- Wait a few seconds for red LED C to go out before starting the lift truck.
NOTE: You can restar t the lift truck within 20 seconds of stopping it: after this time, the
anti-start system reacts and red LED C flashes.
7 - MODCLE ANTI-START SYSTEM
OPERATION
- Switch on lift truck ignition, red led 1 will flash.
- Apply key 2 to its base 3, and withdraw the moment the system emits a continuous beep,
and led 1 turns green.
- Start the lift truck within the next 20 seconds; other wise the anti-theft system will be
reactivated and red led 1 will flash.
NOTE: You can restar t the lift truck within 20 seconds of stopping it: after this time, the
anti-start system reacts and red led C flashes.
