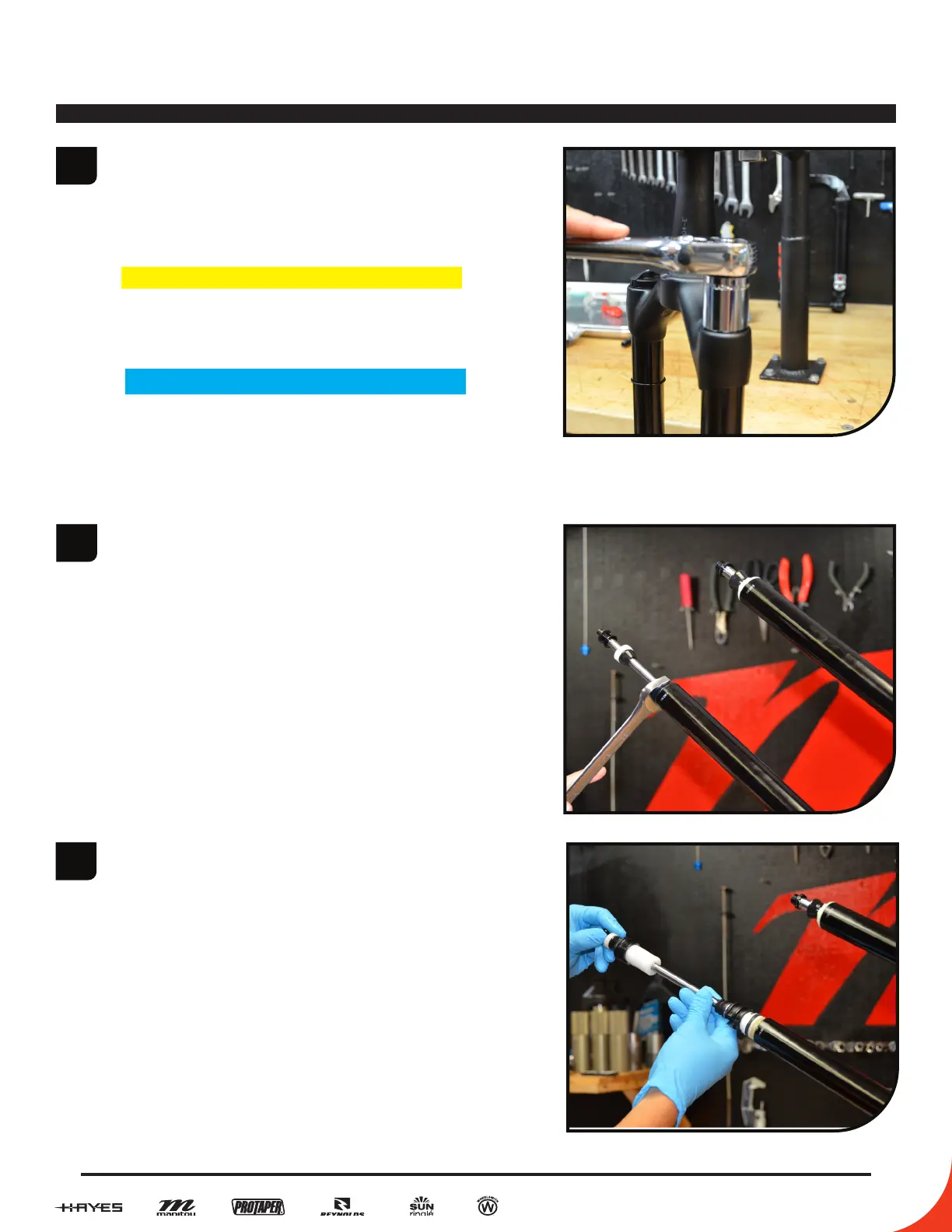

R7 EXPERT / PRO SERVICE GUIDE
AIR SPRING SERVICE
1
2
3
Using Manitou 24mm Flat Ground
Socket, rotate air spring top cap
counter-clockwise and remove
when threads completely disengage
from the stanchion.
Invert the fork. Using a 22mm
wrench, rotate the air spring
end cap counter-clockwise until
threads completely disengage from
stanchion.
Remove air spring assembly. Clean
assembly with isopropyl alcohol
and a lint-free towel. Inspect air
spring shaft, bumpers, and air
piston seal for wear/damage and
replace if necessary.
Do not begin disassembly until
completely depressurizing air
spring.
CAUTION
Make sure to apply top down
force on tool to prevent slipping
NOTICE
