SETUP AND INSTALLATION 999 LUFFING JIB OPERATOR MANUAL

4-12

Published 05-15-17, Control # 043-09

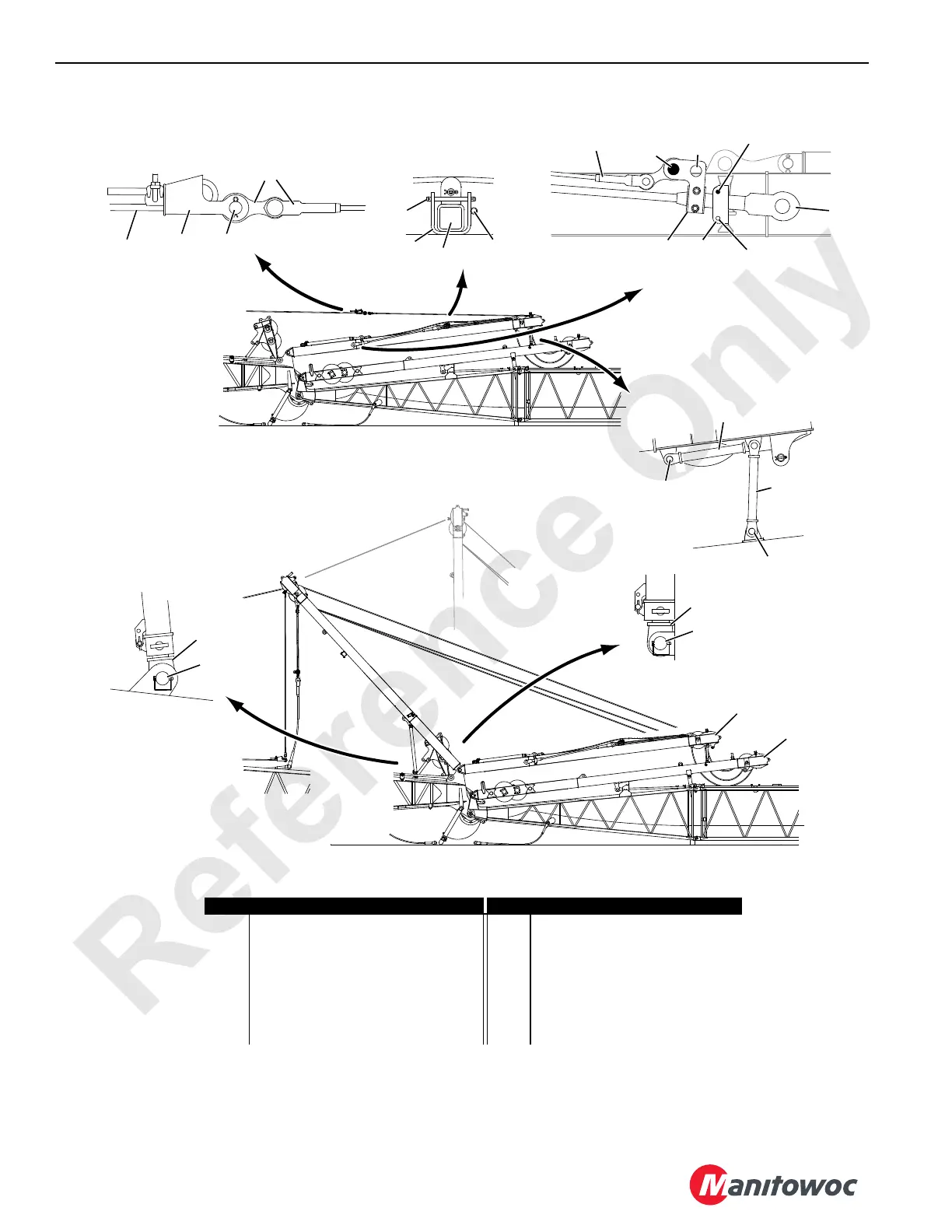

FIGURE 4-7

10 11

Front Drum

Load Line

Stored

Rigging

Position

VIEW H

VIEW A

VIEW D

VIEW E

VIEW B

Store Pin

(2) Here

Item Description Item Description

1 Spreader Bar 9 Bracket

2 Retaining Pin with Cotter Pins 10 Wedge Socket — 1 in (26 mm)

3 Bracket 11 Connecting Pin with Cotter Pin

4 Main Strut Pendant — 9 ft, 8 in (2,9 m) 12 Strut Support

5 Retaining Pin with Snap Pins 13 Pin with Snap Pins

6 Bracket 14 Pin with Snap Pins

7 Strut Raising Pendant and Link 15 Lower Stop Tube

8 Retaining Pin with Cotter Pins

VIEW G

VIEW F

A1204

Main

Strut

Jib

Strut

VIEW C

FAR SIDE

Storage

Shipping
