OPERATING CONTROLS AND PROCEDURES 5540F/YB5515 OPERATOR’S MANUAL
3-6 Published 10-21-2011, Control # 055-03
Horn Button
See Figure 3-9 for the following procedure.
Press the button on the end of the travel selector lever to
sound the horn.
2WD/4WD Selector Switch (Optional)
See Figure 3-10 for the following procedure.
This switch selects between 2 wheel drive and 4 wheel drive
functions.
The up position places the transmission in 4 wheel
drive.
The down position places the transmission in 2 wheel
drive.
Gauges And Indicators
Fuel Gauge
See Figure 3-11 for the following procedure.
Indicates the amount of fuel in the fuel tank.
Hourmeter
See Figure 3-12 for the following procedure.
The hourmeter registers the total hours the engine has been
operating. Use this gauge to perform preventive
maintenance scheduling.
Emergency Flasher
Switch
Turn Signal
Lever
Turn Signal
Indicator Lights
Emergency Flasher
Indicator Light

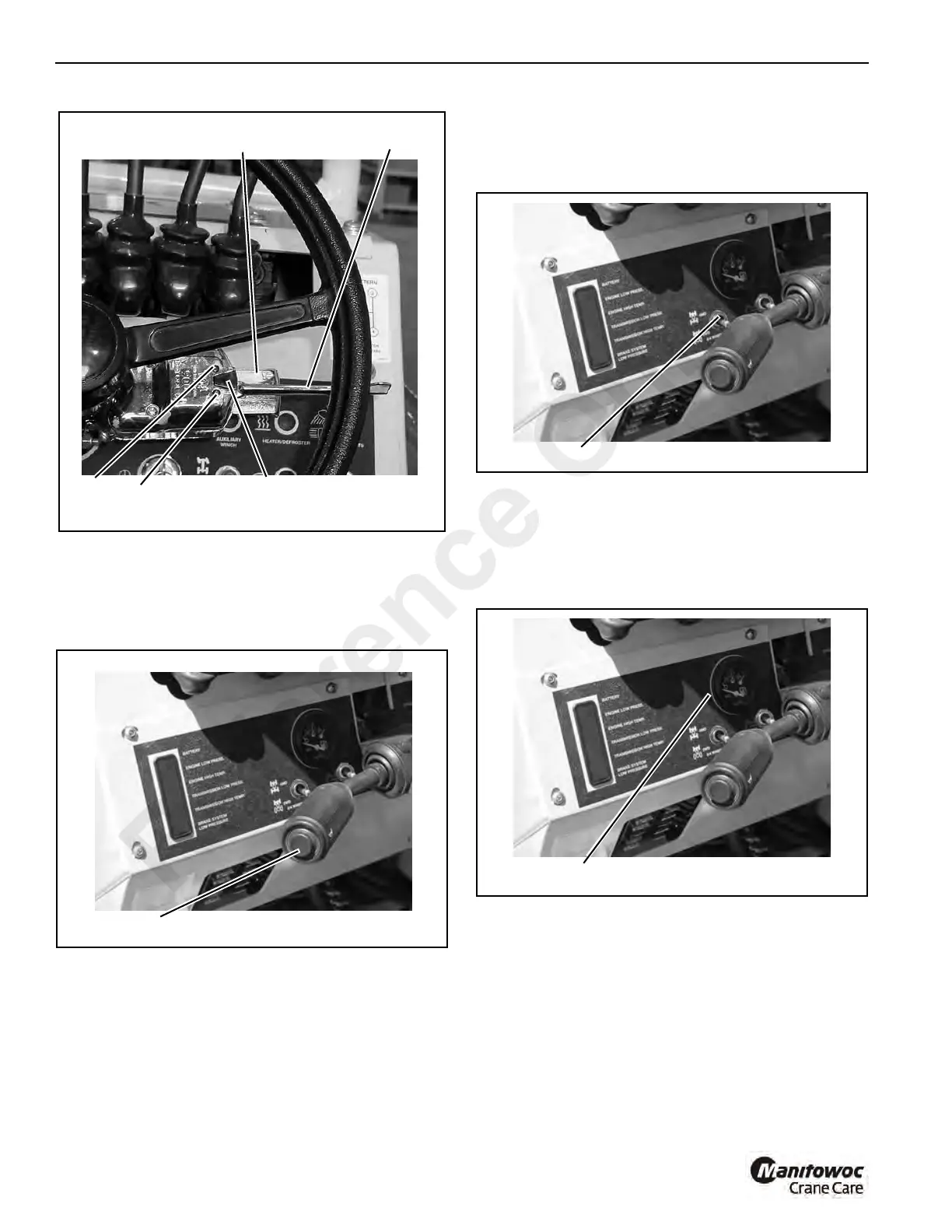

FIGURE 3-8
p0896
p1618
Horn Button
FIGURE 3-9
2WD/4WD Selector Switch
FIGURE 3-10
p1618
Fuel Gage
FIGURE 3-11
p1618
