OPERATING CONTROLS AND PROCEDURES GRT8100 OPERATOR MANUAL
3-36 Published 3-25-2020, Control # 595-10
Table 3-3: Limit Reached Indicator Symbols
Symbol Description
Swing Limit has been reached indicator
symbol (red).
Boom Up/Down Limit has been reached
indicator symbol (red).
Radius Limit has been reached indicator
symbol (red).
Height Limit has been reached indicator
symbol (red).
Wall Limit has been reached indicator
symbol (red).

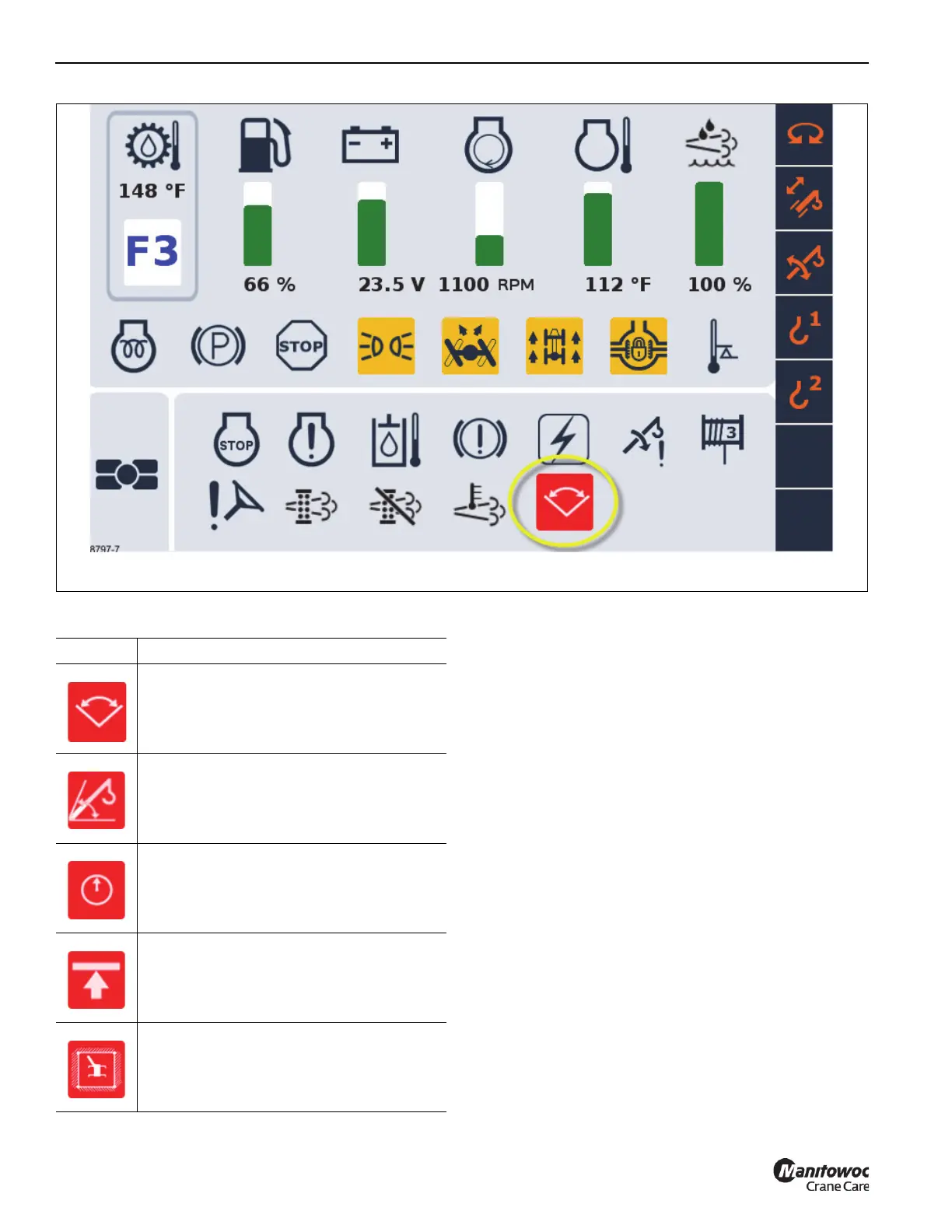

FIGURE 3-21
8797-7
Swing Limit has been Reached indicator on Main Screen (red color for symbol)
