Manitowoc Grove GRT8100 User Manual

SET-UP AND INSTALLATION GRT8100 OPERATOR MANUAL
4-2 Published 3-25-2020, Control # 595-10
GENERAL
This section provides procedures for installing the hoist
cable on the hoist drum, cable reeving, and erecting and
stowing the boom extension.
HOIST PLATFORM
Travel Position

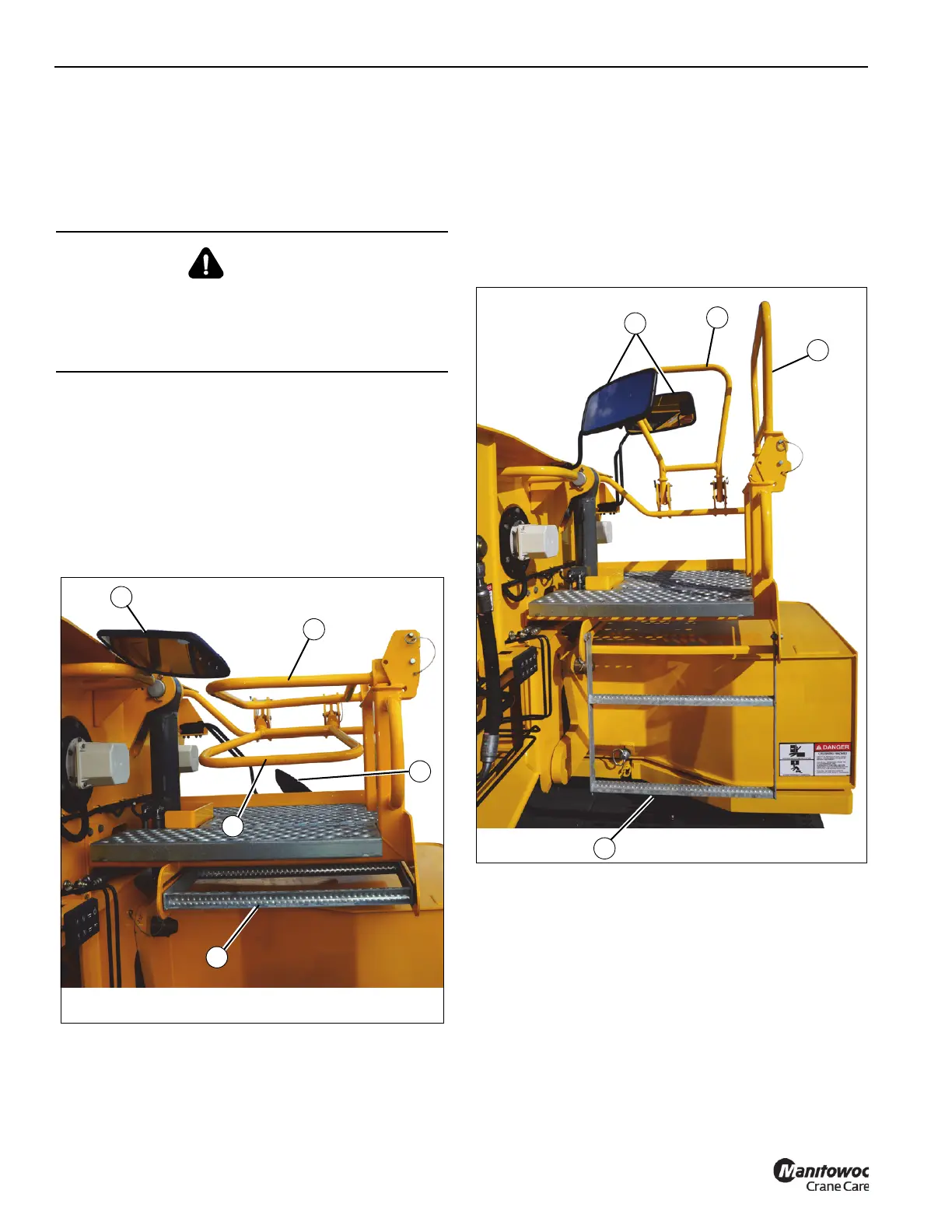

Refer to Figure 4-1.
1. Lower two hoist mirrors (1).
2. Remove two pins and lower rear rail (2). Reinsert pins.
3. Remove two pins and lower side rail (3). Reinsert pins.
4. Lift and slide steps (4) into retaining bracket. Pull out on
steps to ensure notch is engaged in bracket.
Working Position
Refer to Figure 4-2.
1. Lift and pull out steps (4) until they hang vertically from
bracket.
2. Remove two pins and raise side rail (3). Reinsert pins.
3. Remove two pins and raise rear rail (2). Reinsert pins.
4. Raise two hoist mirrors (1) until they lock in position.
DANGER
Do not use platform for hauling passengers. Death or
serious injury could occur.
No storage of components are allowed on the platform.
Only one person at a time is allowed on the platform.
FIGURE 4-1
8625
1
1
4
3
2
8626
FIGURE 4-2
4
2
3
1
